TRENDnet 6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch, TI-PG62F, 4 x Gigabit PoE+ Ports, 2 x Gigabit SFP Slots, DIN-Rail, Wall Mount Brackets Included, IP30, 120W PoE Budget

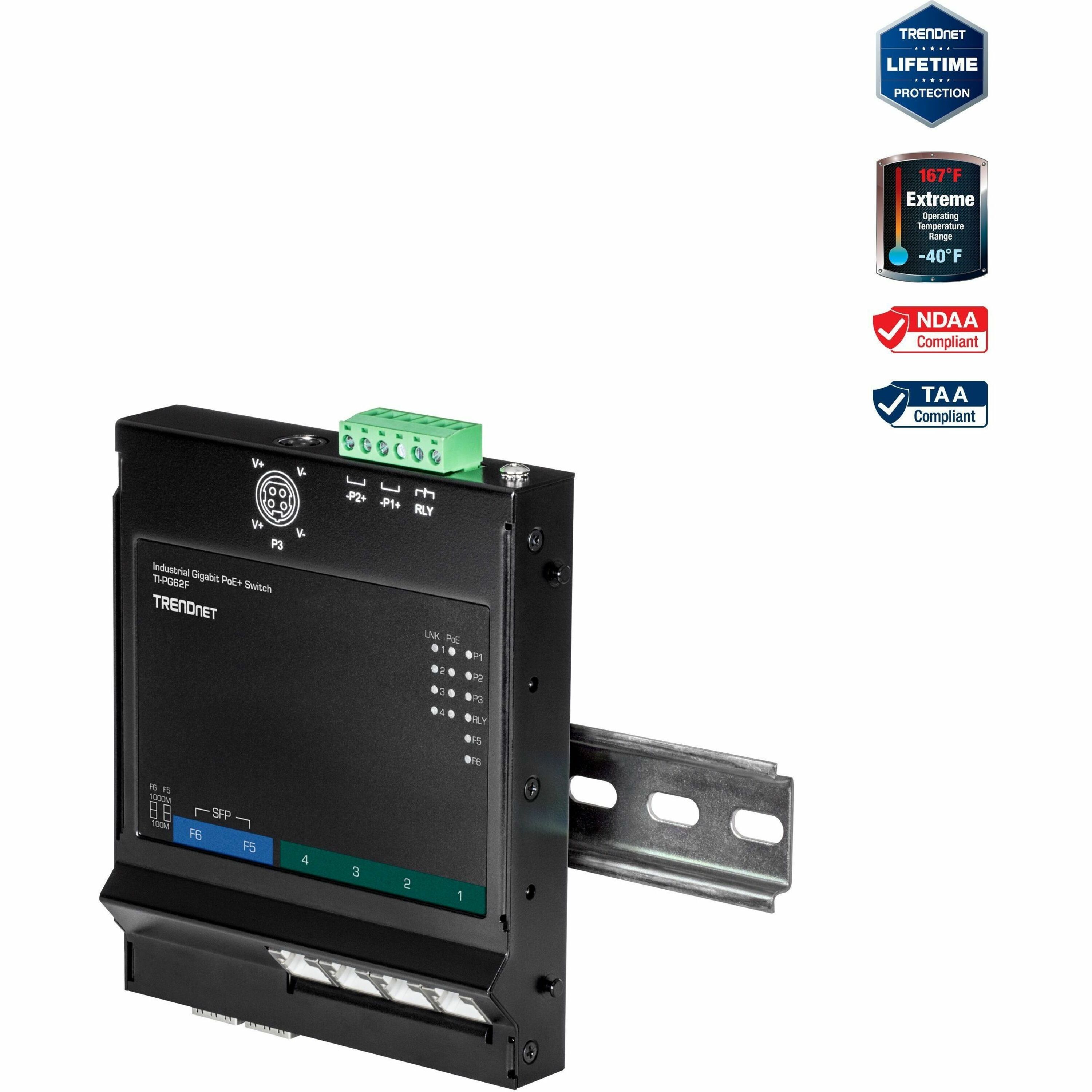

6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch

Part No. TI-PG62F

by TRENDnet

$346.99

Manufacturer Brochure

Specifications
Options & Accessories (3)

General Information

Manufacturer	TRENDnet
Manufacturer Part Number	TI-PG62F
Brand Name	TRENDnet
Product Model	TI-PG62F
Product Name	6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch
Marketing Information	TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series is well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices, such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. DEVICE INTERFACE: 4 x Gigabit PoE+ ports; 2 x Gigabit SFP slots (100/1000Base-FX); 6-pin removable terminal block; LED indicators; DIN-Rail/Wall/Magnet mount; Grounding point LIFETIME PROTECTION -We stand by the quality of our products. The TI-PG62F 6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only) NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only) POE+ POWER: A 120W PoE power budget and 12 Gbps switching capacity supplies PoE power from the hardened industrial front access switch to up to eight Power over Ethernet devices. POWER SUPPLY (SOLD SEPARATELY): Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, and 48VDC3000) REDUNDANT POWER: Dual power inputs provide redundant power with overload current protection, and an output alarm relay to indicate input power failure. (Power supply sold separately, models: TI-S12048, TI-S24048, and 48VDC3000) WALL-MOUNTED FRONT ACCESS SWITCH: The wall mountable flat switch provides front access to ports and power interfaces for easier installation. Ideal for cabinet installations where space is limited. MOUNTING HARDWARE: This 6 Port Gigabit PoE+ switch includes a DIN-Rail bracket and magnetic wall mount kit. HARDENED INDUSTRIAL DESIGN: Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	6
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	4 x Gigabit Ethernet PoE+ 2 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-T 1000Base-FX

I/O Expansions

Total Number of Expansion Slots	2
Expansion Slot Type	SFP (mini-GBIC)
Number of SFP Slots	2

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3af IEEE 802.3at

Management & Protocols

Manageable	No

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	120 W
Frequency	50 Hz 60 Hz
Power Source	AC/DC
Power Consumption	7.20 W
Plug/Connector Type	Terminal Block

Physical Characteristics

Product Material	Metal
Form Factor	DIN Rail Mountable Wall Mountable Magnetic Mount Compact Cabinet Mount Enclosure
Height	5.70" (144.78 mm)
Width	5.90" (149.86 mm)
Depth	1.10" (27.94 mm)
Weight (Approximate)	1.28 lb (580 g)

Miscellaneous

Package Contents	6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Quick Installation Guide Removable Terminal Block DIN-Rail, Wall and Magnet Mount Kit
Country of Origin	Taiwan
TAA Compliant	Yes
NDAA Compliant	Yes
Condition	No

Warranty

Limited Warranty	Lifetime
