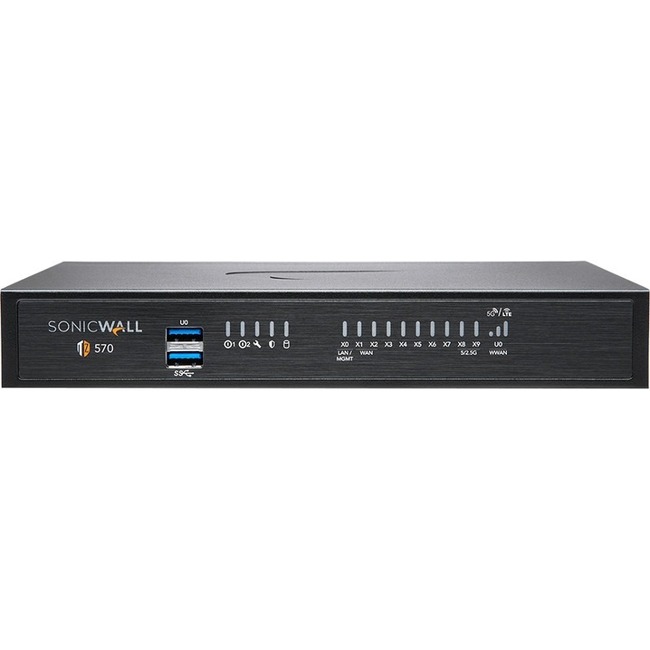

SonicWall TZ570W Network Security/Firewall Appliance

8 Port - 10/100/1000Base-T - 5 Gigabit Ethernet - Wireless LAN IEEE 802.11ac - DES, 3DES, MD5, SHA-1, AES (128-bit), AES (192-bit), AES (256-bit), WPA, WEP, WPA2, TKIP - 8 x RJ-45 - 2 Total Expansion Slots - Desktop, Rack-mountable

Part No. 02-SSC-5672

by SonicWall Inc.

$1796.99

General Information

Manufacturer	SonicWall Inc.
Manufacturer Part Number	02-SSC-5672
Brand Name	SonicWall
Product Series	TZ
Product Model	TZ570W
Product Name	TZ570W Network Security/Firewall Appliance
Marketing Information	The SonicWall TZ570 series, available in three models (TZ570, TZ570W, TZ570P) is the first desktop-formfactor next-generation firewall (NGFW) with 5 Gigabit Ethernet interfaces. Designed for mid-sized organizations and distributed enterprise with SDBranch locations, the TZ570 series delivers industry-validated security effectiveness with best-in-class priceperformance. TZ570 NGFWs address the growing trends in web encryption, connected devices and high-speed mobility by delivering a solution that meets the need for automated, realtime breach detection and prevention. The TZ570 is highly scalable, with high port density of 10 ports. It features both in-built and an expandable storage of up to 256GB, that enables various features including logging, reporting, caching, firmware backup and more. An optional second power supply provides added redundancy in case of failure. Deployment of TZ570 is further simplified by Zero-Touch Deployment, with the ability to simultaneously roll out these devices across multiple locations with minimal IT support. Built on next-gen hardware, it integrates firewalling, switching and wireless capabilities, plus provides single-pane-of-glass management for SonicWall Switches and SonicWave Access Points. It allows tight integration with Capture Client for seamless endpoint security. SonicOS and Security Services The SonicOS architecture is at the core of TZ NGFWs. TZ570 is powered by the feature rich SonicOS 7.0 operating system with new modern looking UX/UI, advanced security, networking and management capabilities. TZ570 features integrated SD-WAN, TLS 1.3 support, realtime visualization, high-speed virtual private networking (VPN) and other robust security features. Unknown threats are sent to SonicWall's cloud-based Capture Advanced Threat Protection (ATP) multiengine sandbox for analysis. Enhancing Capture ATP is our patent-pending Real-Time Deep Memory Inspection (RTDMI™) technology. As one of Capture ATP's engine, RTDMI detects and blocks malware and zero-day threats by inspecting directly in memory. By leveraging Capture ATP with RTDMI technology, in addition to security services such as ReassemblyFree Deep Packet Inspection (RFDPI), Anti-virus and Anti-spyware Protection, intrusion prevention system, Application Intelligence and Control, Content Filtering Services, DPI-SSL, TZ series firewalls stop malware, ransomware and other advanced threats at the gateway. For more information, refer the SonicOS and Security Services Datasheet.
Product Type	Network Security/Firewall Appliance

Technical Information

Firewall Protection Supported	Intrusion Prevention Malware Protection Application Control Content Filtering Spyware Protection URL Filtering Denial of Service (DoS) Stateful Packet Filtering Signature-based Intrusion Prevention Distributed Denial of Service (DDoS) Threat Protection Secure IPsec VPN Connectivity Deep Inspection Firewall
Encryption Standard	DES 3DES MD5 SHA-1 AES (128-bit) AES (192-bit) AES (256-bit) WPA WEP WPA2 TKIP

Interfaces/Ports

Total Number of Ports	8
USB	Yes
Number of Network (RJ-45) Ports	8

Network & Communication

Ethernet Technology	5 Gigabit Ethernet
Network Standard	10/100/1000Base-T

Wireless Specifications

Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11ac

I/O Expansions

Total Number of Expansion Slots	2
Expansion Slot Type	SFP+
Number of SFP+ Slots	2

Management & Protocols

Manageable	Yes

Physical Characteristics

Form Factor	Desktop Rack-mountable
Height	1.38" (35 mm)
Width	8.86" (225 mm)
Depth	5.91" (150 mm)
Weight (Approximate)	2.18 lb (990 g)

Miscellaneous

Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Condition	No
UPC	0758479256724
