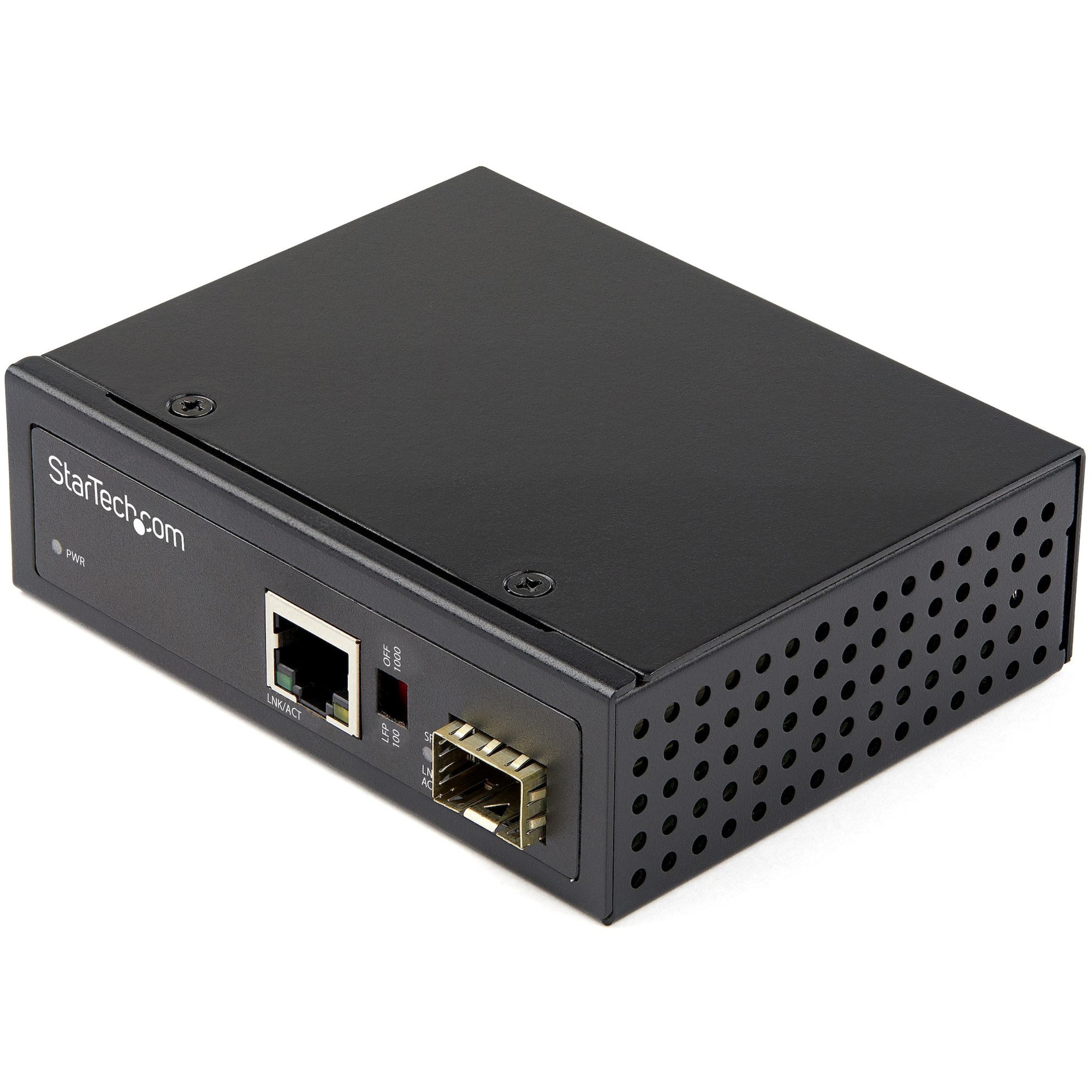

StarTech.com Industrial Fiber to Ethernet Media Converter - 1Gbps SFP to RJ45/CAT6 - SM/MM Fiber to Copper Gigabit Network IP-30 12V Input
Fiber to Ethernet Media Converter extends networks & converts optical fiber to RJ45 Copper/CAT6 - Industrial Hardened -40 to 75C temp - 1Gbps (Gigabit) - Open SFP - 12V-56VDC - Single Mode (SMF) or Multimode Fiber (MMF) - IP-30 Case 2 Year Warranty
$322.99
In Stock Availability
- All Locations: (82+)
- Mississauga, ON (3+)
- Other_SY (79+)
General Information
| Manufacturer | StarTech.com |
| Manufacturer Part Number | IMC1GSFP |
| Brand Name | StarTech.com |
| Product Name | Transceiver/Media Converter |
| Marketing Information | An industrial media converter that converts fiber to copper at a network endpoint. A Flexible Solution Covering Different Requirements This media converter features an open SFP slot for any standard gigabit SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 12V-56V DC for solar, automotive, rail, and other applications and requires a minimum 12V power input. Includes hardware for DIN rail or wall mounting. For Mission-Critical Applications Designed with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards: Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-Fall: EN 60068-2-32 The IMC1GSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer |
| Packaged Quantity | 1 Each |
| Product Type | Transceiver/Media Converter |
Interfaces/Ports
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
Media & Performance
| Media Type Supported |
|
| Fiber Mode Supported |
|
I/O Expansions
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
| Network Technology |
|
Power Description
| Power Source | Power Supply |
| Power Consumption | 3 W |
| Plug/Connector Type |
|
Physical Characteristics
| Form Factor |
|
| Height | 1.30" (33.02 mm) |
| Width | 3.20" (81.28 mm) |
| Depth | 4.10" (104.14 mm) |
| Weight (Approximate) | 5.10 oz (144.58 g) |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance |
|
| Country of Origin | Taiwan |
| End of Life Manual Availability | Yes |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/imc1gsfp_rohs.pdf |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/imc1gsfp_rohs.pdf |
| REACH free of SVHC | Yes |
| WEEE Statement | https://media.startech.com/cms/pdfs/imc1gsfp_weee.pdf |
| Condition | No |
| UPC | 0065030889612 |
Warranty
| Limited Warranty | 2 Year |
