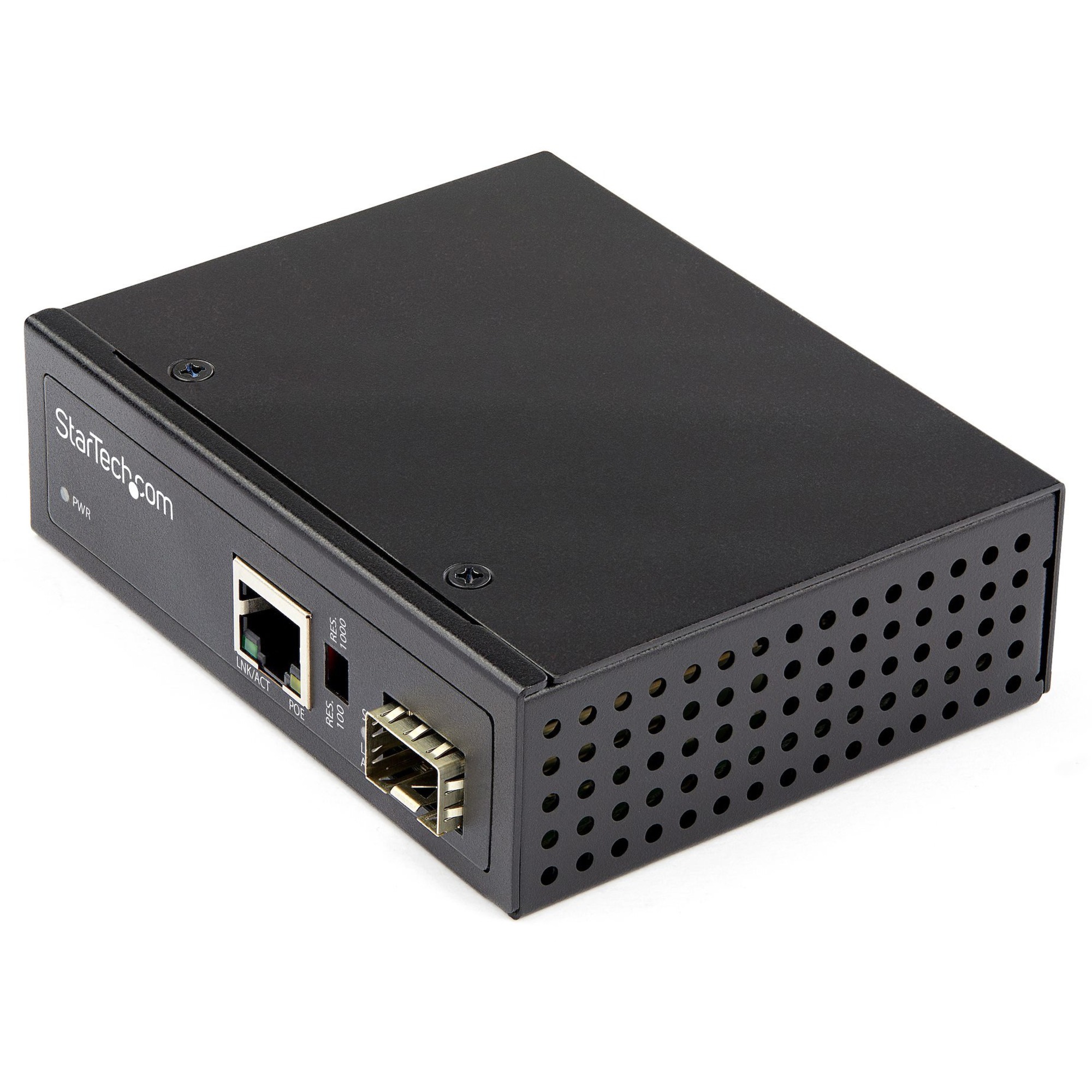

StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - SM/MM Fiber to Gigabit Copper IP-30
Fiber to Ethernet media converter extends networks & converts fiber to copper - PSE source for 60W power to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) PD devices - 1 Gbps (Gigabit)| 1 x SFP | 1x RJ45 | Industrial IP-30 Aluminum| 10/100/1000Mbps
$358.99
In Stock Availability
- All Locations: (132+)
- Other_SY (132+)
General Information
| Manufacturer | StarTech.com |
| Manufacturer Part Number | IMC1GSFP60W |
| Brand Name | StarTech.com |
| Product Name | Transceiver/Media Converter |
| Marketing Information | This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector It converts a fiber network link to a PoE-enabled copper RJ45 Ethernet connection to provide data and power to remote PoE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require PoE and connectivity over long distances. Designed for Harsh Environments This 60W media converter can be installed almost anywhere you need it as it has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options. OPERATING TEMPERATURE STORAGE TEMPERATURE -40°C to 75°C -40°C to 85°C -40°F to 167°F -40°F to 185°F Up to 60 Watts of Power for Connected Devices 60 watts of available support a wide range of PD devices such as: Pan-and-Tilt Cameras Lighting Cameras Sensors WiFi Access Points Open SFP Slot to Leverage Your Current Infrastructure The Gigabit fiber media converter provides a cost-efficient way to connect high powered devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements. Dual Power Inputs Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. The IMC1GSFP60W is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer |
| Packaged Quantity | 1 Each |
| Product Type | Transceiver/Media Converter |
Interfaces/Ports
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 1 |
Media & Performance
| Media Type Supported |
|
| Fiber Mode Supported |
|
I/O Expansions
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
| Network Technology |
|
Power Description
| Power Source | PoE+ |
| Power Consumption | 60 W |
| Plug/Connector Type |
|
Physical Characteristics
| Form Factor |
|
| Height | 1.30" (33.02 mm) |
| Width | 3.20" (81.28 mm) |
| Depth | 4.10" (104.14 mm) |
| Weight (Approximate) | 5.40 oz (153.09 g) |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance |
|
| Country of Origin | Taiwan |
| End of Life Manual Availability | Yes |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/imc1gsfp60w_rohs.pdf |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/imc1gsfp60w_rohs.pdf |
| REACH free of SVHC | Yes |
| WEEE Statement | https://media.startech.com/cms/pdfs/imc1gsfp60w_weee.pdf |
| Condition | No |
| UPC | 0065030889636 |
Warranty
| Limited Warranty | 2 Year |
