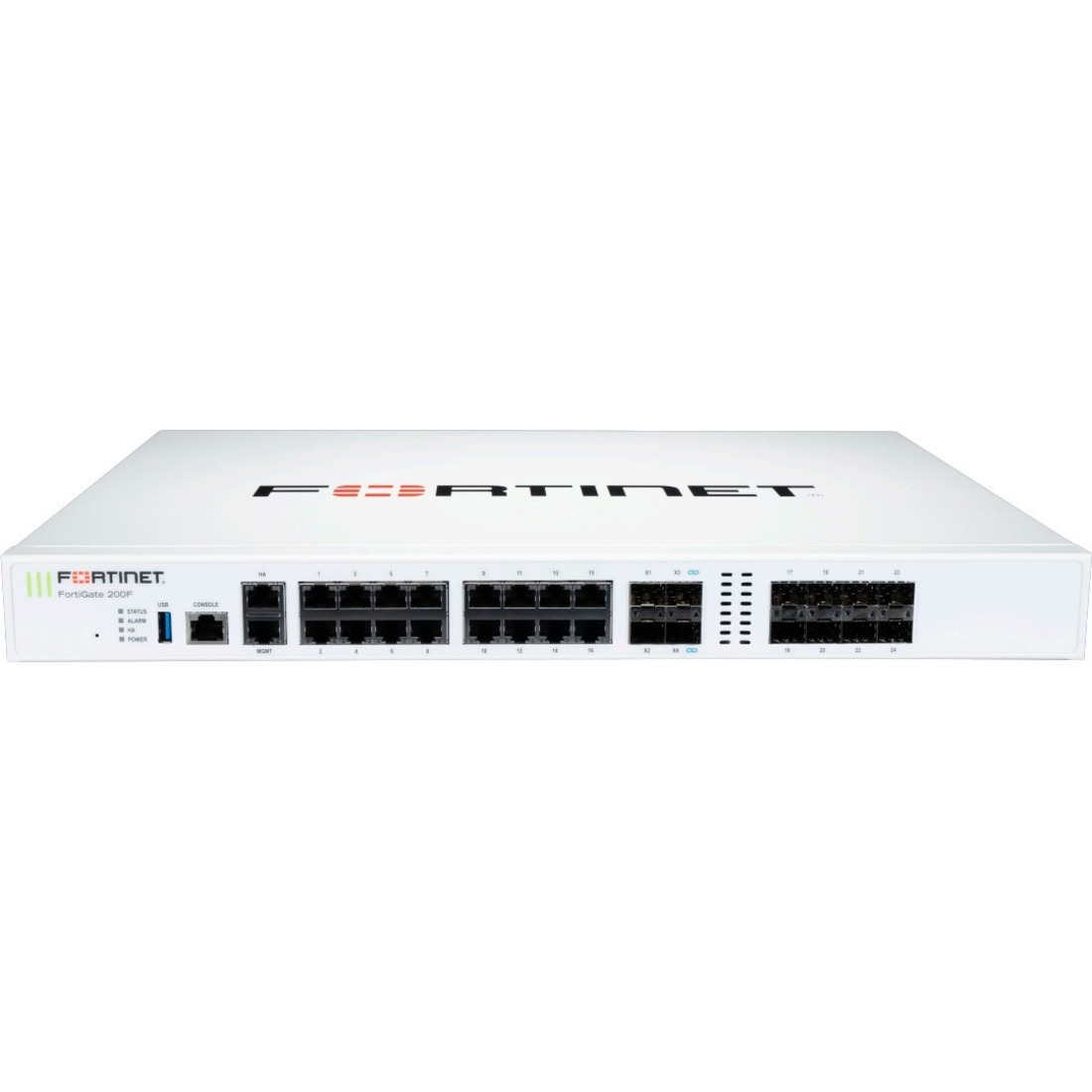

Fortinet FortiGate FG-200F Network Security/Firewall Appliance

18 Port - 10/100/1000Base-T, 1000Base-X, 10GBase-X - 10 Gigabit Ethernet - AES (256-bit), SHA-256 - 500 VPN - 17 x RJ-45 - 12 Total Expansion Slots - 5 Year 24x7 FortiCare and FortiGuard UTP - 50 Hz, 60 Hz - 1U - Rack-mountable

Part No. FG-200F-BDL-950-60

by Fortinet, Inc

$25358.99

Specifications
Options & Accessories (6)

General Information

Manufacturer	Fortinet, Inc
Manufacturer Part Number	FG-200F-BDL-950-60
Brand Name	Fortinet
Product Line	FortiGate
Product Series	200F
Product Model	FG-200F
Product Name	FortiGate FG-200F Network Security/Firewall Appliance
Marketing Information	The FortiGate 200F series provides an application-centric, scalable and secure SD-WAN solution with next generation firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or enterprise branch level. Protects against cyber threats with system-on-a-chip acceleration and industryleading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet's Security-Driven Networking approach provides tight integration of the network to the new generation of security. Security Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic Prevents and detects against known attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services Proactively blocks unknown sophisticated attacks in realtime with the Fortinet Security Fabric integrated AI-powered FortiSandbox Performance Engineered for Innovation using Fortinet's purpose-built security processors (SPU) to deliver the industry's best threat protection performance and ultra-low latency Provides industry-leading performance and protection for SSL encrypted traffic including the first firewall vendor to provide TLS 1.3 deep inspection Certification Independently tested and validated best security effectiveness and performance Received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin, and AV Comparatives Networking Dynamic Path Selection over any WAN transport to provide better application experience based on self-healing SD-WAN capabilities Advanced routing, Scalable VPN, multi-cast and IPV4/IPV6 forwarding powered by purpose-built network processors Management SD-WAN Orchestration provides intuitive and simplified workflow for centralized management and provisioning of business policies in a few easy clicks Expedited deployment with Zero touch provisioning well-suited for large and distributed infrastructure Automated VPN tunnels for flexible hub-to-spoke and full-mesh deployment at scale to provide bandwidth aggregation and encrypted WAN paths Predefined compliance checklists analyze the deployment and highlight best practices to improve the overall security posture Security Fabric Enables Fortinet and Fabric-ready partners' products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing, and automated remediation Automatically builds Network Topology visualizations which discover IoT devices and provide complete visibility into Fortinet and Fabric-ready partner products Deployment Next Generation Firewall (NGFW) Reduce the complexity and maximize your ROI by integrating threat protection security capabilities into a single highperformance network security appliance, powered by Fortinet's Security Processing Unit (SPU) Full visibility into users, devices, applications across the entire attack surface and consistent security policy enforcement irrespective of asset location Protect against network exploitable vulnerabilities with industryvalidated IPS that offers low latency and optimized network performance Automatically block threats on decrypted traffic using the Industry's highest SSL inspection performance, including the latest TLS 1.3 standard with mandated ciphers
Product Type	Network Security/Firewall Appliance

Technical Information

Firewall Protection Supported	Threat Protection Malware Protection SSL Encrypted Traffic Protection Deep Inspection Firewall Application Control Anti-spam Integrated Web Filtering Antivirus Botnet Detection Outbreak Prevention Cloud Sandboxing Secure IPsec VPN Connectivity
Encryption Standard	AES (256-bit) SHA-256
Number of VPN Supported	500

Interfaces/Ports

Total Number of Ports	18
USB	Yes
Number of Network (RJ-45) Ports	17

Network & Communication

Ethernet Technology	10 Gigabit Ethernet
Network Standard	10/100/1000Base-T 1000Base-X 10GBase-X

Wireless Specifications

Wireless LAN	No

I/O Expansions

Total Number of Expansion Slots	12
Expansion Slot Type	SFP (mini-GBIC) SFP+
Number of SFP Slots	8
Number of SFP+ Slots	4

Management & Protocols

Manageable	Yes

Power Description

Frequency	50 Hz 60 Hz

Physical Characteristics

Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.73" (43.94 mm)
Width	17.01" (432.05 mm)
Depth	13.47" (342.14 mm)
Weight (Approximate)	9.92 lb (4499.64 g)

Warranty

Limited Warranty	1 Year
Support/Service Duration	5 Year
Support/Service Type	24x7 FortiCare and FortiGuard UTP

modules (6)

Fortinet SFP+ Module

Part No. FN-TRAN-SFP+GC

Fortinet SFP+ Module - For Data Networking - 1 x RJ-45 10GBase-T LAN - Twisted Pair10 Gigabit Ethernet - 10GBase-T

30M RANGE

$490.99

Fortinet SFP (mini-GBIC) Module

Part No. FN-TRAN-GC

Fortinet SFP (mini-GBIC) Module - For Data Networking - 1 x RJ-45 1000Base-T LAN - Twisted PairGigabit Ethernet - 1000Base-T

$188.99

Fortinet SFP+ Module

Part No. FN-TRAN-SFP+ER

Fortinet SFP+ Module - For Data Networking, Optical Network - 1 x 10GBase-ER Network - Optical Fiber - Single-mode - 10 Gigabit Ethernet - 10GBase-ER

$2055.99

Fortinet SFP (mini-GBIC) Module

Part No. FN-TRAN-LX

Fortinet SFP (mini-GBIC) Module - For Data Networking, Optical Network - 1 x 1000Base-LX Network - Optical FiberGigabit Ethernet - 1000Base-LX

$135.99

Fortinet SFP (mini-GBIC) Module

Part No. FN-TRAN-SX

Fortinet SFP (mini-GBIC) Module - For Data Networking, Optical Network - 1 x 1000Base-SX Network - Optical FiberGigabit Ethernet - 1000Base-SX

$75.99

Fortinet SFP+ Module

Part No. FN-TRAN-SFP+LR

Fortinet SFP+ Module - For Data Networking, Optical Network - 1 x 10GBase-LR Network - Optical Fiber10 Gigabit Ethernet - 10GBase-LR

$150.99
