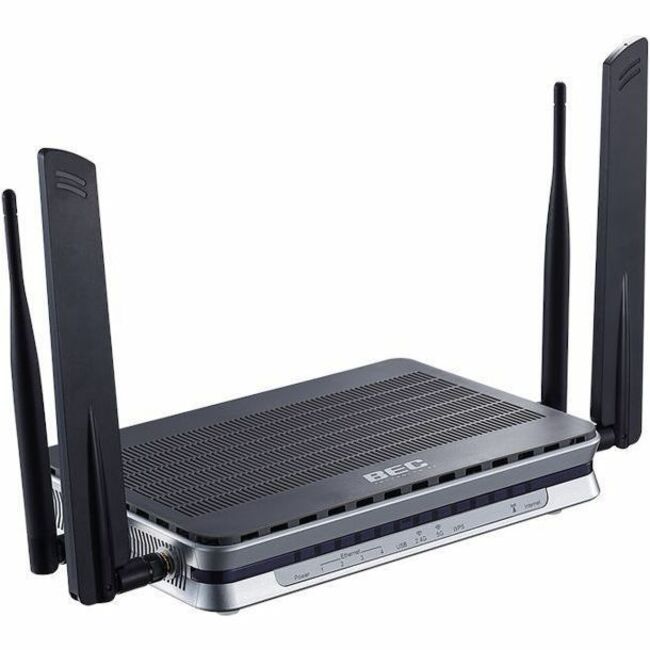

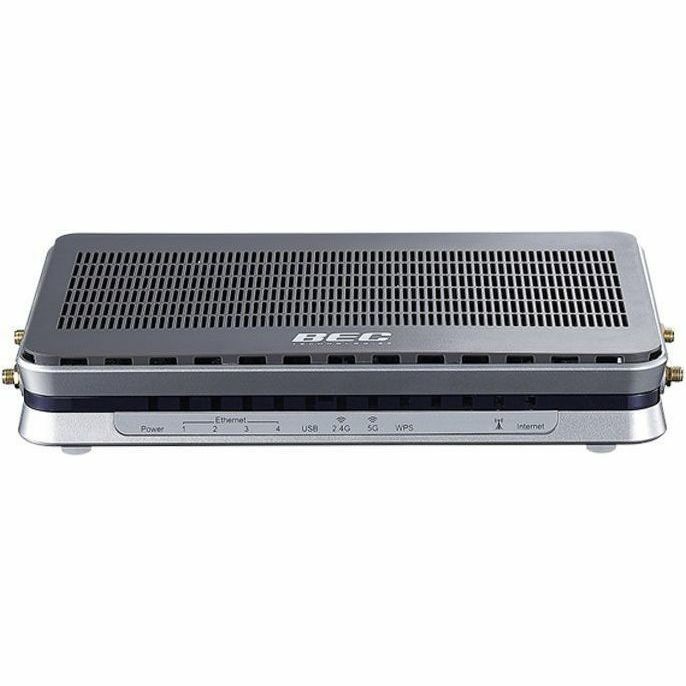

BEC Technologies GigaConnect 6500AEL R18 Wi-Fi 5 IEEE 802.11a/b/g/n/ac Ethernet, Cellular Wireless Router

4G - LTE - Dual Band - 2.40 GHz ISM Band - 5 GHz UNII Band - 6 x Antenna(4 x Internal/2 x External) - 150 MB/s Wireless Speed - 4 x Network Port - 2 x Broadband Port - USB - Gigabit Ethernet - VPN Supported

Part No. 6500AEL R18

by BEC Technologies, Inc

$714.99

Specifications

General Information

Manufacturer	BEC Technologies, Inc
Manufacturer Part Number	6500AELR18
Brand Name	BEC Technologies
Product Line	GigaConnect
Product Model	6500AEL R18
Product Name	GigaConnect 6500AEL CBRS Multi-Service LTE Router
Marketing Information	The BEC 6500AEL series CBRS Multi-Service LTE Router is a high-performance platform, featuring Dual-WAN interfaces (4G/LTE and GigaConnect® Ethernet WAN), 4-port Gigabit Ethernet Switch, USB 2.0, high-power 802.11ac dual-band Wi-Fi access point, hotspot/captive portal, dynamic routing, and robust Firewall security. The 6500AEL CBRS series router models range from LTE CAT 6 up to LTE CAT 12 providing unprecedented LTE speeds, bandwidth, and network performance in CBRS shared spectrum commercial deployments. Dual WAN connectivity allows the 6500AEL Series to support a variety of wired broadband connection types, FTTH, Cable modems, with data rates reaching up to 1Gbps. Ideal applications for Residential FWA, Education, Enterprise, Telehealth, Private LTE, In-Building Connectivity
Product Type	Wireless Router

Technical Information

Wi-Fi Generation	Wi-Fi 5
Network Band	Dual Band

Wireless Specifications

Broadband Transmission Technology	Ethernet Cellular
Wireless LAN Standard	IEEE 802.11a/b/g/n/ac
ISM Band	Yes
UNII Band	Yes
ISM Maximum Frequency	2.40 GHz
UNII Maximum Frequency	5 GHz
Cellular Generation	4G
Cellular Data Connectivity Technology	LTE
Total Number of Antennas	6
Number of Internal Antennas	4
Number of External Antennas	2
Total Wireless Transmission Speed	150 MB/s
Encryption Standard	128-bit WEP 64-bit WEP WPA-PSK WPA-PSK2 WPA2-PSK WEP AES WPS
Firewall Type	NAT SPI

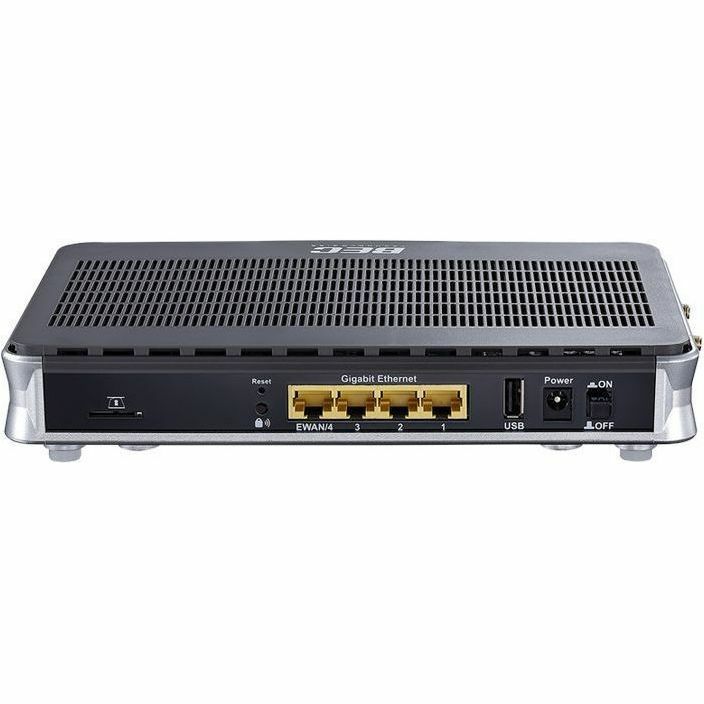

Interfaces/Ports

Number of Network (RJ-45) Ports	4
USB	Yes
Number of Broadband (RJ-45) Ports	2
USB Standard	USB 2.0

Network & Communication

Ethernet Technology	Gigabit Ethernet
VPN Supported	Yes
SIM Size Supported	Mini

Physical Characteristics

Height	1.69" (43 mm)
Width	9.04" (229.50 mm)
Depth	6.10" (155 mm)

Miscellaneous

Certifications & Standards	FCC Part 96 Authorized EUD
COO	TW
Condition	No
