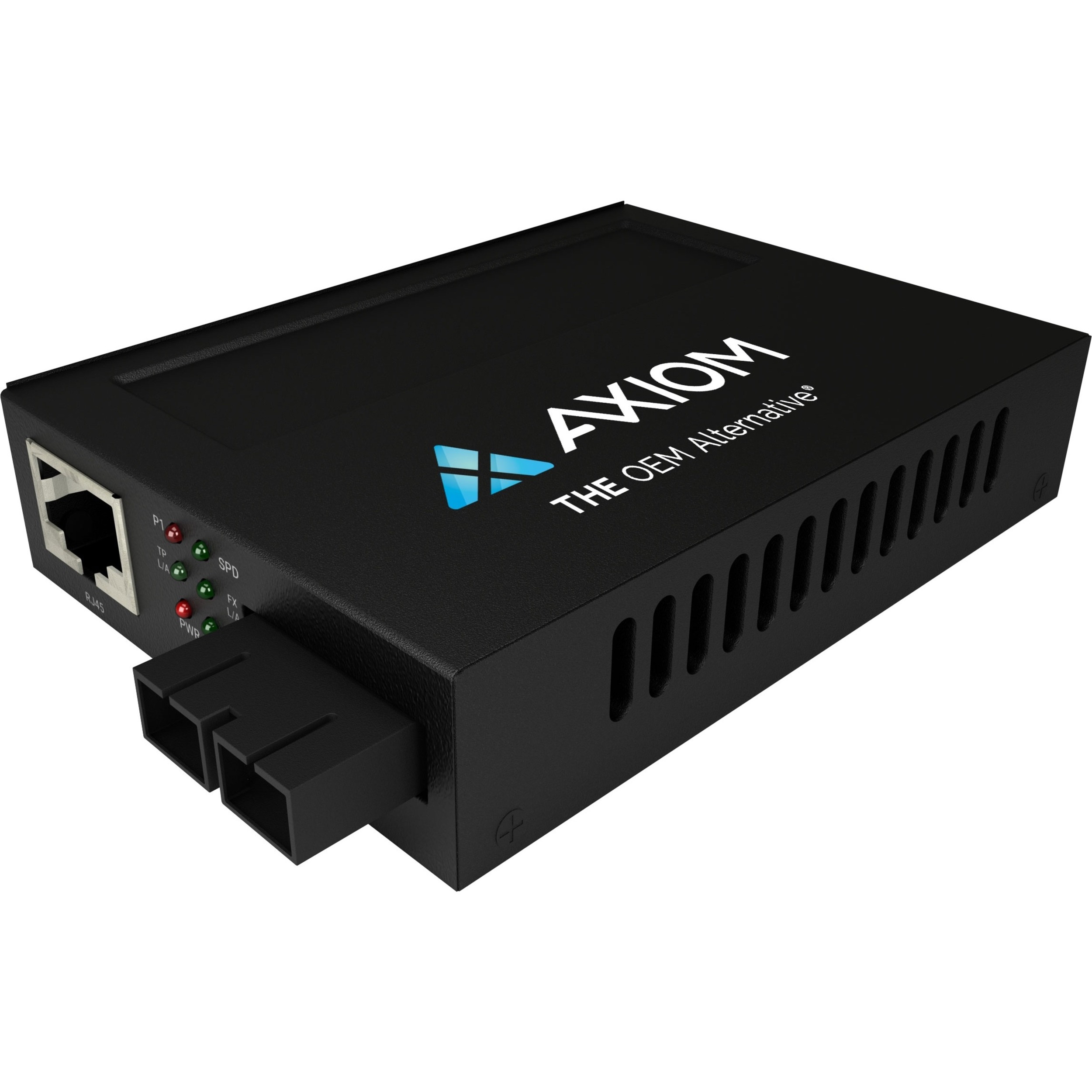

Axiom 100Mbs POE RJ45 to 100BASE-LX Fiber Media Converter - SMF, SC, 10km,1310nm
Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x SC Ports - Single-mode - 1310 nm Fiber - Fast Ethernet - 100Base-LX - 10 km (6.21 Mile) - AC/DC
$173.99
In Stock Availability
- All Locations: (2+)
- Other_SY (2+)
General Information
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | MCP31-F1-S3S10-AX |
| Brand Name | Axiom |
| Product Series | POE (PSE) |
| Product Name | 100Mbs POE RJ45 to 100BASE-LX Fiber Media Converter - SMF, SC, 10km,1310nm |
| Marketing Information | Features The Axiom 100Mbps POE (PSE) Series are a 10/100Base-TX to 100Base-FX media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
|
| Product Type | Transceiver/Media Converter |
Interfaces/Ports
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| Number of SC Ports | 1 |
Media & Performance
| Media Type Supported |
|
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Distance Supported | 10 km (6.21 Mile) |
Network & Communication
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-LX |
Power Description
| Power Source | AC/DC |
Warranty
| Limited Warranty | 1 Year |
