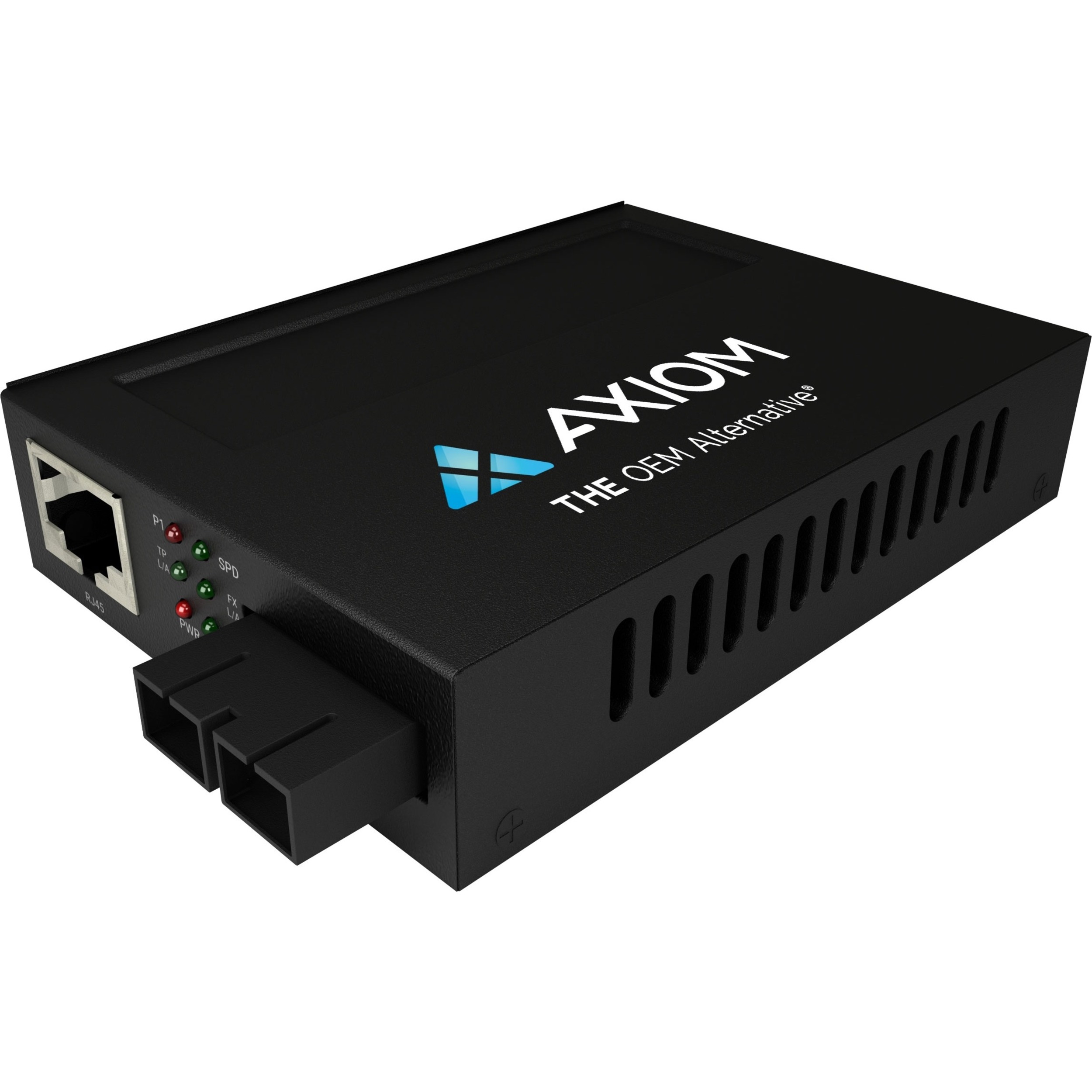

Axiom 1Gbs POE+ RJ45 to 1000BASE-SX Fiber Media Converter - MMF, SC, 2km, 1310nm
Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x SC Ports - Multi-mode - 1310 nm Fiber - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-T - 2 km (1.24 Mile) - AC
$277.99
In Stock Availability
- All Locations: (2+)
- Other_SY (2+)
General Information
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | MCP32-T2-M3S2-AX |
| Brand Name | Axiom |
| Product Name | 1Gbs POE+ RJ45 to 1000BASE-SX Fiber Media Converter - MMF, SC, 2km, 1310nm |
| Marketing Information | Features The Axiom POE+ (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3at standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3at powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
|
| Product Type | Transceiver/Media Converter |
Interfaces/Ports
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of PoE+ (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| Number of SC Ports | 1 |
Media & Performance
| Media Type Supported |
|
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Distance Supported | 2 km (1.24 Mile) |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
| Network Technology |
|
Power Description
| Power Source | AC |
Warranty
| Limited Warranty | 1 Year |
