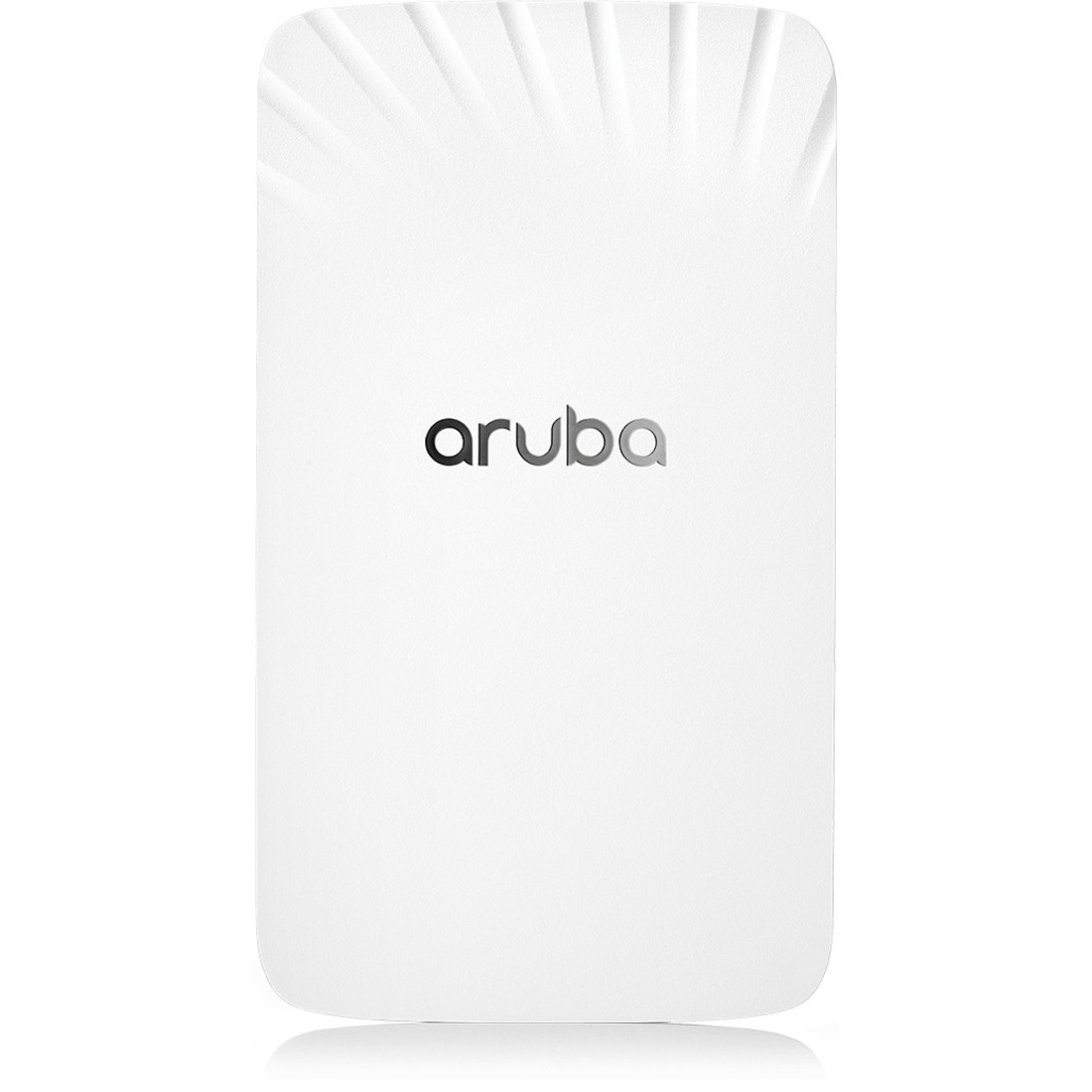

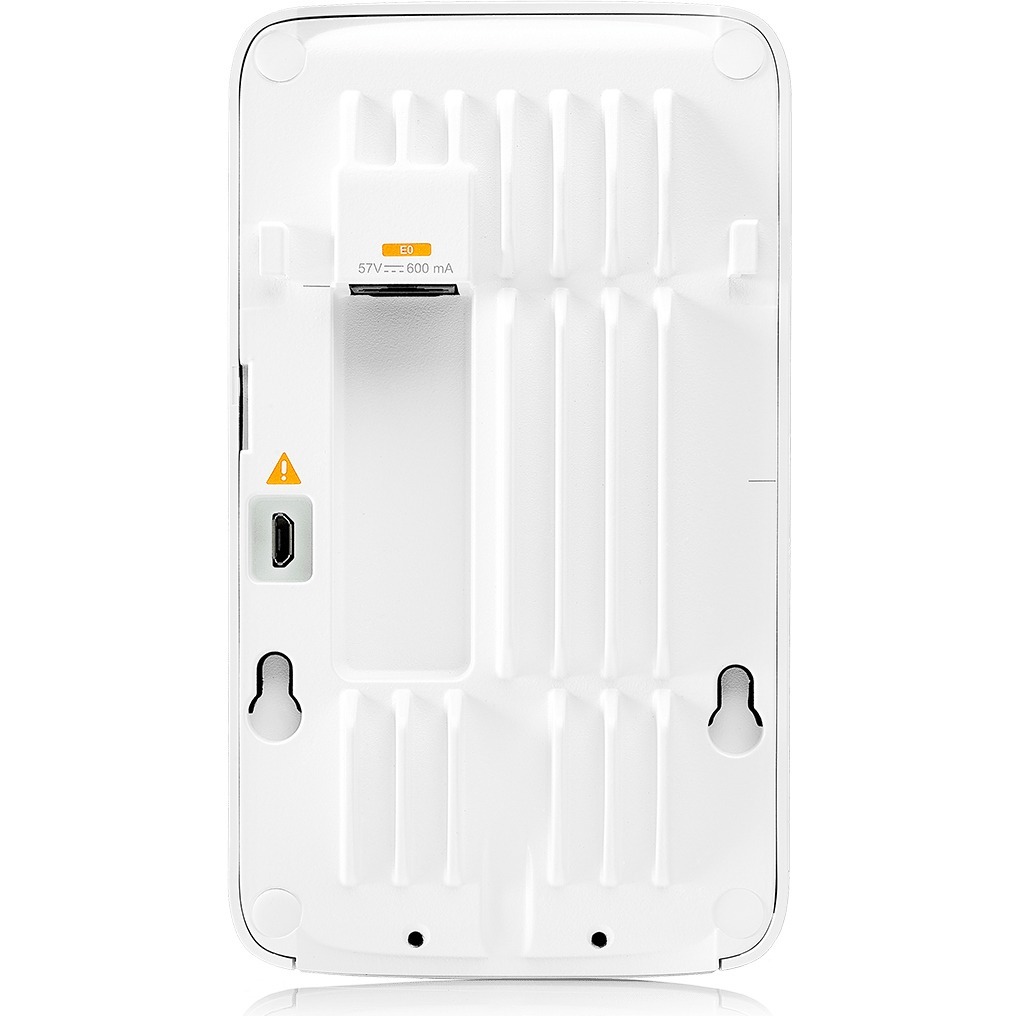

HPE AP-503H Dual Band 802.11ax 1.50 Gbit/s Wireless Access Point
2.40 GHz, 5 GHz - 2 x Internal Antenna(s) - Internal - MIMO Technology - 3 x Network (RJ-45) - Gigabit Ethernet - Bluetooth 5 - Wall Mountable, Desktop
$868.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | R7G97A |
| Brand Name | HPE |
| Product Series | 500H |
| Product Model | AP-503H |
| Product Name | AP-503H Wireless Access Point |
| Marketing Information | High performance and cost-effective Wi-Fi 6 (802.11ax) for hospitality, branch, and teleworker deployments These economical Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing mobile, cloud and IoT requirements. With a wireless aggregate data rate of up to 1.5 Gbps and gigabit local wired ports, they deliver the range of connectivity options needed for venues such as hotels, residence halls, and remote offices alike. INCREDIBLE EFFICIENCY The 500H Series APs are designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients. Features include Orthogonal frequency-division multiple access (OFDMA), multi-user MIMO and cellular optimization. With up to 2 spatial streams (2SS) and 80MHz channel bandwidth, the 500H Series provides groundbreaking wireless capabilities for budget-conscious deployments. |
| Product Type | Wireless Access Point |
Technical Information
| Wireless LAN Standard | 802.11ax |
| Bluetooth Standard | Bluetooth 5 |
| Network Band | Dual Band |
| Frequency Band |
|
| Total Number of Antennas | 2 |
| Number of Internal Antennas | 2 |
| Wireless Transmission Speed | 1.50 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard |
|
Interfaces/Ports
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 3 |
| PoE PD Port | Yes |
| USB | Yes |
| Management Port | Yes |
Physical Characteristics
| Form Factor |
|
| Antenna Form Factor | Internal |
| Height | 5.91" (150 mm) |
| Width | 3.39" (86 mm) |
| Depth | 1.57" (40 mm) |
| Weight (Approximate) | 10.23 oz (290 g) |
