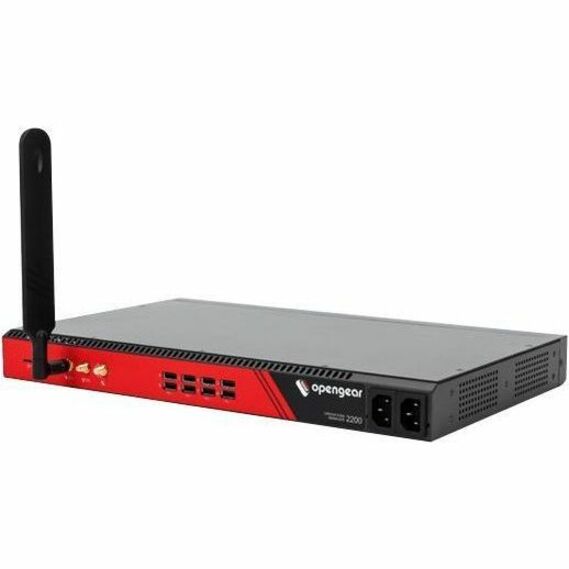

Opengear OM2200 Operations Manager with Smart Out-of-Band Management

Part No. OM2224-24E-L-US

by Opengear

Opengear OM2200 Operations Manager with Smart Out-of-Band Management

Remote Management

Part No. OM2224-24E-L-US

by Opengear

$8912.99
General Information
ManufacturerOpengear
Manufacturer Part NumberOM222424ELUS
Brand NameOpengear
Product SeriesOM2200
Product ModelOM2224-24E-L
Product NameOM2200 Operations Manager with Smart Out-of-Band Management
Marketing Information

The OM2200 appliance, managed through our Lighthouse software, is configured for data centers and high density locations. Integrated into Opengear's Network Resilience Platform, it provides a separate, secure management plane which supports advanced automation applications.

  • 16, 32, 48 Serial port and 24 Serial/24 Ethernet mixed port models
  • Separate platforms optimized for 1GbE and 10 GbE networks
  • Global LTE interface (non-cellular optional)
  • PSTN modem with select models
  • x86 platform; embedded physical security
  • Python runtime, Docker container support
Product TypeInfrastructure Management Equipment
Power Description
Frequency
  • 50 Hz
  • 60 Hz
Physical Characteristics
Form FactorRack Mount
Height1.75" (44.45 mm)
Width17.25" (438.15 mm)
Depth10.25" (260.35 mm)
Weight (Approximate)3.50 kg
Miscellaneous
Package Contents
  • OM2200 Operations Manager with Smart Out-of-Band Management
  • 2 x USA A/C Power Cords
  • 1 x Rack Mount Kit
  • 1 x CAT5 Cable 6'
  • 1 x DB9F - RJ45 Crossover
  • Start-Up / Safety Instructions Card
  • 2 x Cellular Antennas
  • 1 x Cellular Antenna Extender with Magnetic Base
Additional Information
  • CPU: 1.4 GHz 4-Core x86
  • 8 GB DDR3 RAM
  • 64GB Internal Storage
  • 2 USB 3.0 and 8 USB 2.0 ports
  • 24 x Selectable RJ45 RS-232 Ports and 24 x Managed 10/100/1000 Base-T Switched Ethernet Ports
  • 2 x 10/100/1000 Ethernet/SFP Fiber Ports
  • Cellular: Global 4G LTE
  • 1 RU


Environmental:

  • Operating Temperature: 5°C to 50°C, 41°F to 122°F
  • Storage Temperature: -30°C to +60°C, -22°F to +140°F
  • Humidity: 5% to 90%
Application/UsageRemote Management
Country of OriginUnited States
ConditionNo
UPC843295103816
Warranty
Limited Warranty6 Year
