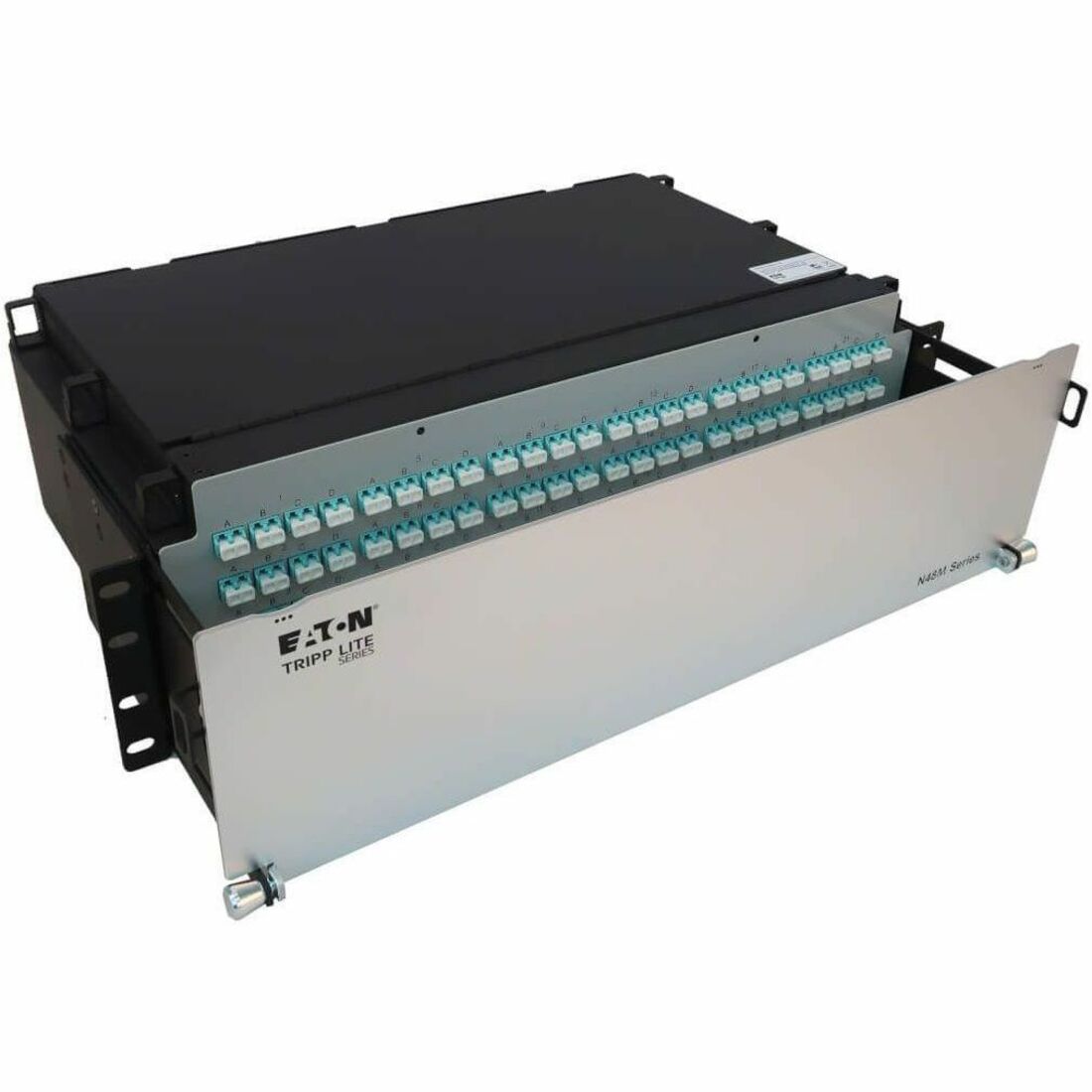

Preloaded Fiber Patch Panel, 3U - 24x (12F MTP/MPO-PC to 4x LC Duplex F/F) 8F Trunk Cables, OM4 Multimode, 10 m (32.8 ft.)

Features

3U Panel Solution Comes with Cabling Preloaded to Cut Costs and Save Time
All necessary cabling is included with this preloaded fiber panel, coiled inside and ready for immediate use. The aluminum 3U chassis features 24 MTP/MPO-PC to LC Duplex 8-fiber multimode trunk cables, all 10 meters (32.8 feet) in length to make management easy. The panel opens to provide easy access to stored cables. Use only as much cabling as you need. The remainder stores inside the chassis to eliminate cable clutter, allow better airflow through the rack and make equipment maintenance and replacement easier. The cables and panels have labels to help with organization. You also avoid the expense and effort of custom cabling. The flexibility in cable length lets you reuse the cables if equipment is moved.

Integrates Equipment to Meet Current Connectivity Needs
This preloaded slack-free panel helps integrate your 10 Gb equipment with 40 Gb networks or 25 Gb equipment with 100 Gb networks in a simple, elegant and flexible manner. The N48M-24M8L4-10 mounts in just 3U of space in an EIA-standard 19-inch rack.

Typical Applications

• Integrate 10G equipment with a 40G network or 25G equipment with a 100G network
• Save the expense and effort of buying custom cables or repurchasing cables after moving rack equipment
• Eliminate cable clutter by using only as much as you need and storing excess cable inside the panel

• N48M-24M8L4-10 Preloaded Fiber Patch Panel

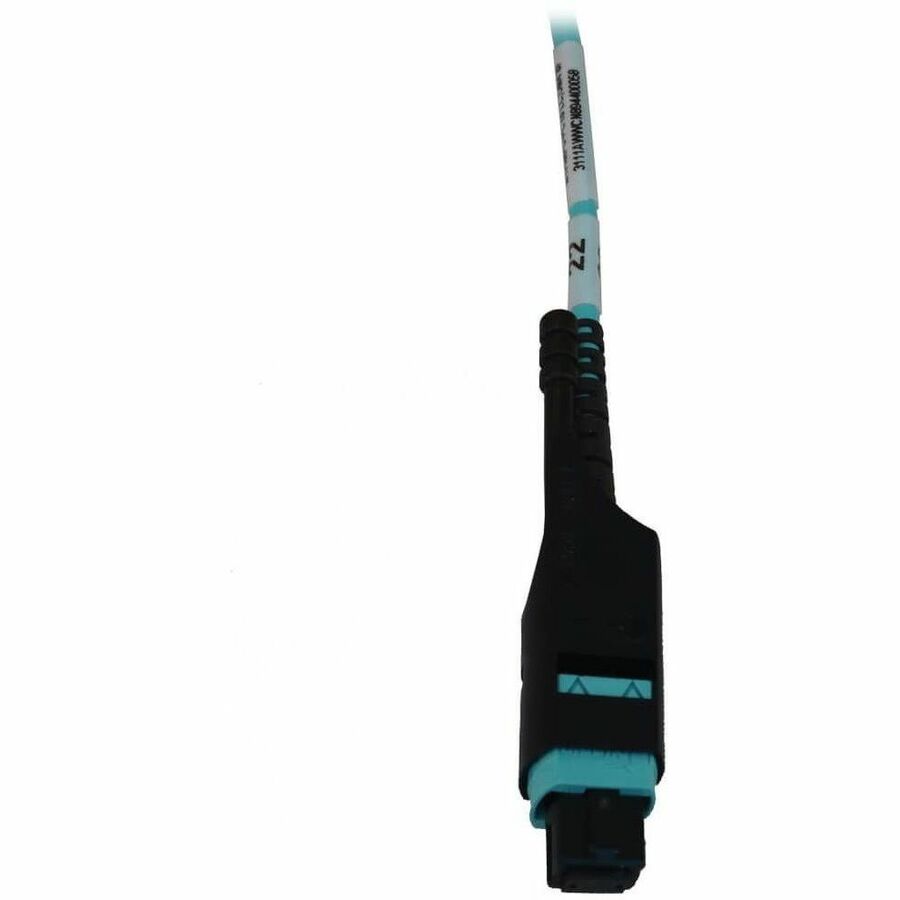

• 24 x MTP/MPO-PC to LC Duplex Trunk Cables, 10 m (32.8 ft.)
• Installation Guide

OVERVIEW

• Technology MTP/MPO; Multimode
• Optical Mode OM4
• Panel Cable Number 24
• Panel Cable Length (m) 10
• Fiber Panel Ports (24) MTP/MPO
• Mode Type Multimode

Firmware / Software Docs

• Offset Ports No

PHYSICAL

• Cable Jacket Rating OFNP
• Cable Outer Diameter (OD) 2.9MM
• Clad Diameter 125 micron
• Core Diameter 50 micron
• Primary Coating Diameter 245
• Number of Fibers 8
• Cable Length (ft.) 32.8
• Cable Length (in.) 393.7
• Minimum Bend Radius 20MM (DYNAMIC); 10MM (STATIC)

COMMUNICATIONS

• Network Compatibility 10 Gbps / 40 Gbps / 100 Gbps; 400 GbE
• Wavelength 1300nm; 850nm
• Attenuation @ 850NM 3.0dB/KM
• Attenuation @ 1300NM 1.0dB/KM
• Insertion Loss MTP/MPO: ≤0.35dB; LC: ≤0.20dB

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
