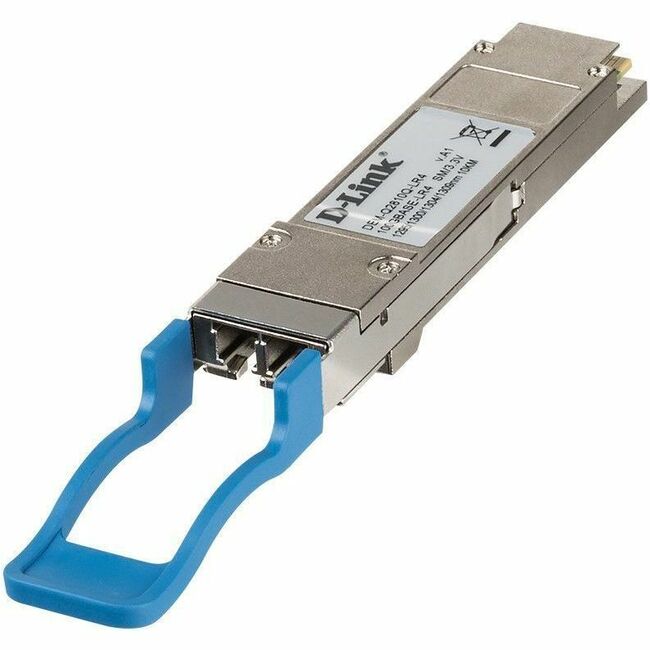

D-Link 100GBase-LR4 Single-Mode QSFP28 transceiver (up to 10 km)
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | D-Link Systems, Inc |
| Manufacturer Part Number | DEM-Q2810Q-LR4 |
| Brand Name | D-Link |
| Product Name | 100GBase-LR4 Single-Mode QSFP28 transceiver (up to 10 km) |
| Marketing Information | Description D-Link's 100G QSFP28 Module series are hot-swappable QSFP28 transceivers that plug into QSFP28 slots on switches and support 100G Ethernet. The D-Link 100GBase QSFP28 Module Series transceivers offer customers a wide variety of 100G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications. Quad Small Form-factor Pluggable 28 Format The transceivers use the Quad Small Form-factor Pluggable 28 format (QSFP28) connectors, which integrate four independent transmitting and receiving channels. QSFP28 supports up to 25 Gb/s per channel for applications such as 100G Ethernet. Hot-Pluggable All D-Link transceivers are hot-pluggable. Hot-swap capability allows network administrators to plug or unplug it from the SFP slot without having to turn off the power of the connected device. 100G Ethernet speeds The transceivers support 100G Ethernet, which results in very fast data transmissions of up to 100 Gbit/s, that enables the switches to handle fast and heavy data transmissions, making it suitable for business needs. |
| Product Type | QSFP28 |
| Application/Usage |
|
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 100GBase-LR4 Network |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 100 Gigabit Ethernet |
| Network Technology | 100GBase-LR4 |
| Maximum Distance Supported | 10 km (6.21 Mile) |
| Maximum Data Transfer Rate | 100 Gbit/s |
| Input Voltage | 3.3 V |
| Form Factor |
|
| Height | 0.33" (8.50 mm) |
| Width | 0.72" (18.30 mm) |
| Depth | 2.76" (70 mm) |
| Compatibility | MSA Compliant |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0790069456336 |
