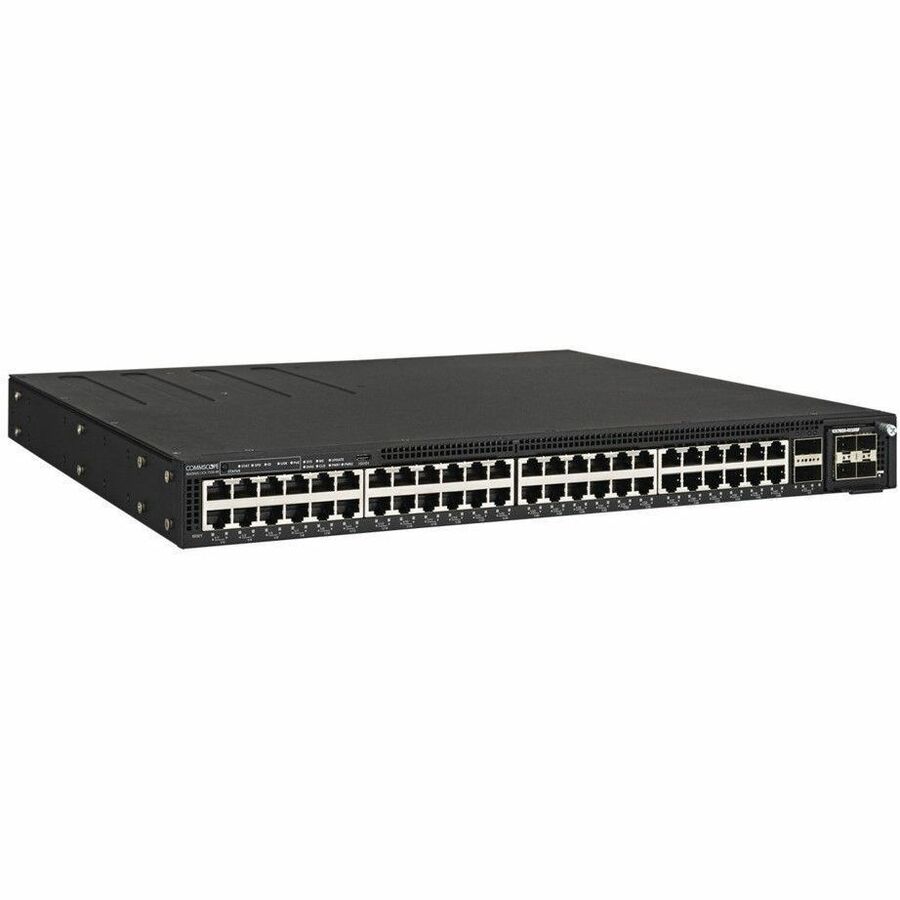

Enterprise stackable switch delivers gigabit, multigigabit and fiber connectivity, to support next generation wireless access

The CommScope RUCKUS® ICX 7550 switch delivers the premium performance and scalability required for Wi-Fi 6 deployments and beyond with up to 48 ports of multigigabit connectivity and full 90 watts of 802.3bt PoE power per port with perpetual and fast-boot PoE support. It offers market-leading stacking density with up to 12 switches (up to 576 gigabit, multigigabit or fiber ports) per stack and combines chassis-level performance with "pay as you grow" scalability of a stackable solution. The mid-market stackable switch is one of the first in its class to offer 100 GbE uplinks, enabling enterprises to dramatically increase their network capacity while using their existing optical wire infrastructure.

Benefits

Maximum flexibility with gigabit/multigabit access and 1G/10G aggregation covers a broad range of deployment scenarios

Optimized for Wi-Fi 6 deployments and beyond

• Up to 12x 1/2.5/5/10G Multigigabit Ethernet ports
• Up to 36x 1/2.5G Multigigabit Ethernet ports

Power next generation PoE devices

• PoE+/802.3bt 60W/90W per port
• Up to 1900W PoE budget with two power supplies

40 GbE and 100 GbE uplinks/stacking for maximum performance and future-proofing

• Up to 2x 100 GbE uplink
• Up to 2x 100 Gbps stacking ports and 1x 100GbE uplink

Advanced L3 routing delivers design flexibility

• IPv4 and IPv6
• RIP, BGP, OSPF, VRRP, PIM, PBR, VRF

Security and data privacy

• MACsec 128-bit and 256-bit data encryption ensures
• compliance and data confidentiality

Broad range of unified management options for maximum flexibility

• On Premises: SmartZone
• Cloud Based: RUCKUS Cloud
• Controllerless: RUCKUS Unleashed

Redundant, load-sharing power supplies enhance availability

The RUCKUS ICX 7550 series of mid-range stackable switches are purpose-built to provide wired connectivity at the edge of the network for the latest generation Wi-Fi 6 Access-Points. With high density multigigabit Ethernet ports and the latest 802.11bt 90W PoE power, the ICX 7550 delivers the performance, flexibility, and scalability required for the most demanding campus deployment scenarios.

The ICX 7550 comes in 8 different models that can all be seamlessly stacked together to cover a broad range of deployment scenarios including gigabit or multigigabit network edge and 1/10 gigabit fiber for network aggregation or fiber to the room as well a smart building network edge with a class leading 1900W PoE budget and up to 90W of power delivery per port.

Multigigabit Network Edge

The RUCKUS ICX 7550 multigigabit models come in 24- and 48-port offering class leading multigigabit port density with a mix of 2.5G and 2.5/5/10G ports delivering the ultimate solution for Wi-Fi 6 access points Ethernet connectivity today while providing plenty of future proofing for deploying future generations of Wi-Fi APs.

Gigabit Ethernet Access

To complete the solution, The ICX 7550 Series includes four Gigabit Ethernet models, two with PoE support and two without. These models come in 24- and 48-port versions and can stack with the rest of the ICX 7550 series to offer traditional Gigabit ethernet connectivity for legacy Wi-Fi access points, VoIP phones, printers, laptop and desktop computers.

• 48 x 1 Gigabit Ethernet SFP Expansion Slot
• 4 x 40 Gigabit Ethernet QSFP Expansion Slot
• 12 x 10 Gigabit Ethernet SFP+ Expansion Slot
• 2 x 100 Gigabit Ethernet QSFP28 Expansion Slot

• 40 Gigabit Ethernet
• 100 Gigabit Ethernet
• Gigabit Ethernet
• 10 Gigabit Ethernet

• 40GBase-X
• 1000Base-X
• 100GBase-X
• 10GBase-X

• QSFP
• QSFP28
• SFP+
• SFP

• IEEE 802.1ab
• IEEE 802.1x
• IEEE 802.3ae
• IEEE 802.3at
• IEEE 802.3af
• IEEE 802.1D
• IEEE 802.1s
• IEEE 802.3
• IEEE 802.3ab
• IEEE 802.1w
• IEEE 802.1p
• IEEE 802.3ba
• IEEE 802.3az
• IEEE 802.3bz
• IEEE 802.3x
• IEEE 802.3bt
• IEEE 802.1ae
• IEEE 802.1Q
• IEEE 802.3u
• IEEE 802.3z

• 230 V AC
• 120 V AC

• 50 Hz
• 60 Hz

• Enterprise
• Campus
• Wireless Access Point
• VoIP Phone
• Printer
• Laptop
