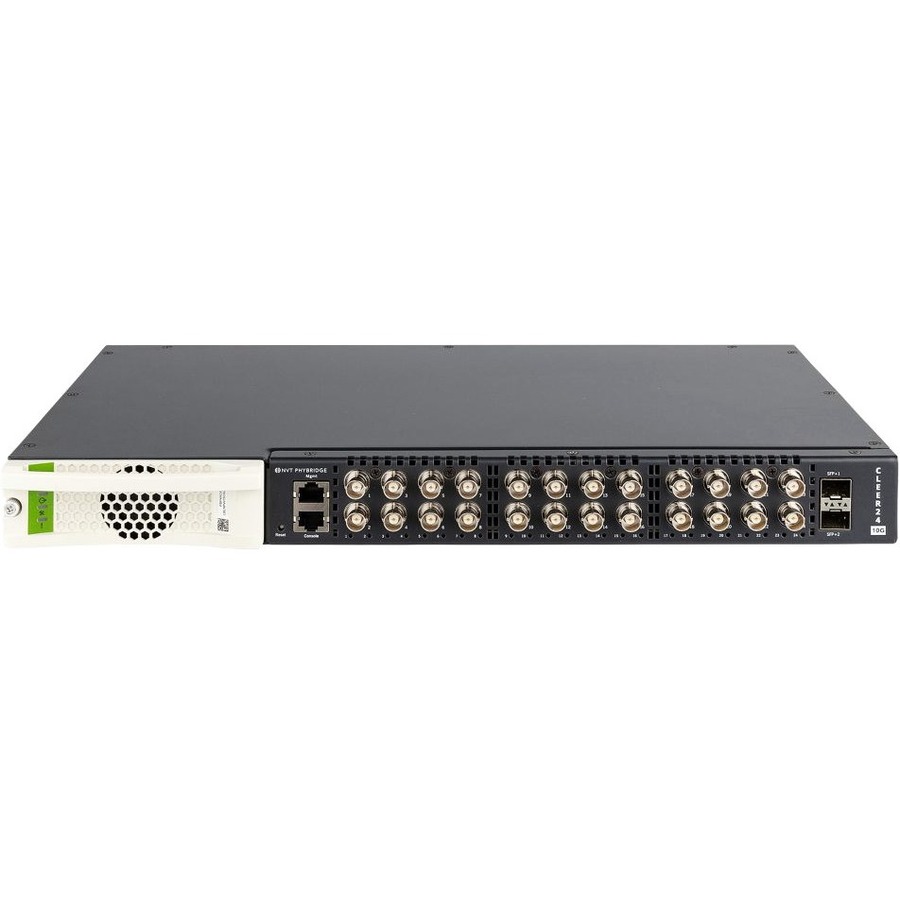

NVT Phybridge CLEER24-10G Managed Switch
24 Ports - Manageable - Fast Ethernet, 10 Gigabit Ethernet - 1000Base-T, 1000Base-TX, 1000Base-SX, 1000Base-LX, 1000Base-EX, 1000Base-ZX, 10GBase-T, 10GBase-SR, 10GBase-LR, 10GBase-ER, 10GBase-ZR, ... - 3 Layer Supported - Modular - 38 W Power Consumption - 50 W PoE Budget - Optical Fiber, Coaxial - 1U - Rack-mountable, Standalone, Shelf Mountable, Desktop
$5358.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Phybridge, Inc |
| Manufacturer Part Number | NV-CLR-024-10G |
| Brand Name | NVT Phybridge |
| Product Model | CLEER24-10G |
| Product Name | CLEER24-10G Managed Switch |
| Marketing Information | The NVT Phybridge CLEER24-10G Layer 3 Enterprise Grade switch is designed to make IP/IoT deployments simple, secure, and cost-effective. The CLEER24-10G switch delivers up to 50 Watts of power (PoE++) and 10/100 Mbps symmetrical, full-duplex, over coax cabling with up to 6,000ft (1,830m) reach. The CLEER24-10G switch enables Modern LAN principles and comes standard with 2 x SFP+ 10Gb/s uplink ports, dedicated management and console ports, 24 x 10/100 downlink ports, a 1,000 Watt hot-swappable power supply, power sharing, and power redundancy. The CLEER24-10G switch also comes with a new and intuitive GUI interface, ideal for any cloud or premise-based managed service offering. The new and improved CLI (Command Line Interface) is very similar to the Cisco offering for ease of use. Benefits Include:
CLEER24-10G switch delivers Fast Ethernet speeds and PoE++ (50W) over Coax with 6,000ft (1830m) reach. It is designed to support the most demanding IP endpoints with plenty of bandwidth to spare. The CLEER24-10G switch provides robust network performance at any distance. Industry Leading PowerWISE® Technology The NVT Phybridge CLEER24-10G switch is built with PowerWISE Technology, providing power sharing for redundancy, hot-swappable power supply, and auto-sensing 100-240 VAC delivering 1,000 Watts of power. The CLEER24-10G switch is one of the most energy efficient switches on the market, consuming 38 Watts of power to operate. |
| Product Type | Ethernet Switch |
Interfaces/Ports
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details |
|
Media & Performance
| Media Type Supported |
|
| Ethernet Technology |
|
| Network Technology |
|
I/O Expansions
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
Network & Communication
| Layer Supported | 3 |
| Networking Standards |
|
Management & Protocols
| Manageable | Yes |
Power Description
| PoE (RJ-45) Port | No |
| PoE Budget | 50 W |
| Frequency |
|
| Power Source | AC |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 38 W |
Physical Characteristics
| Compatible Rack Unit | 1U |
| Form Factor |
|
| Height | 1.73" (43.94 mm) |
| Width | 17.13" (435.10 mm) |
| Depth | 11.22" (284.99 mm) |
| Weight (Approximate) | 8 lb (3628.73896 g) |
Miscellaneous
| Package Contents |
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 735890501459 |
