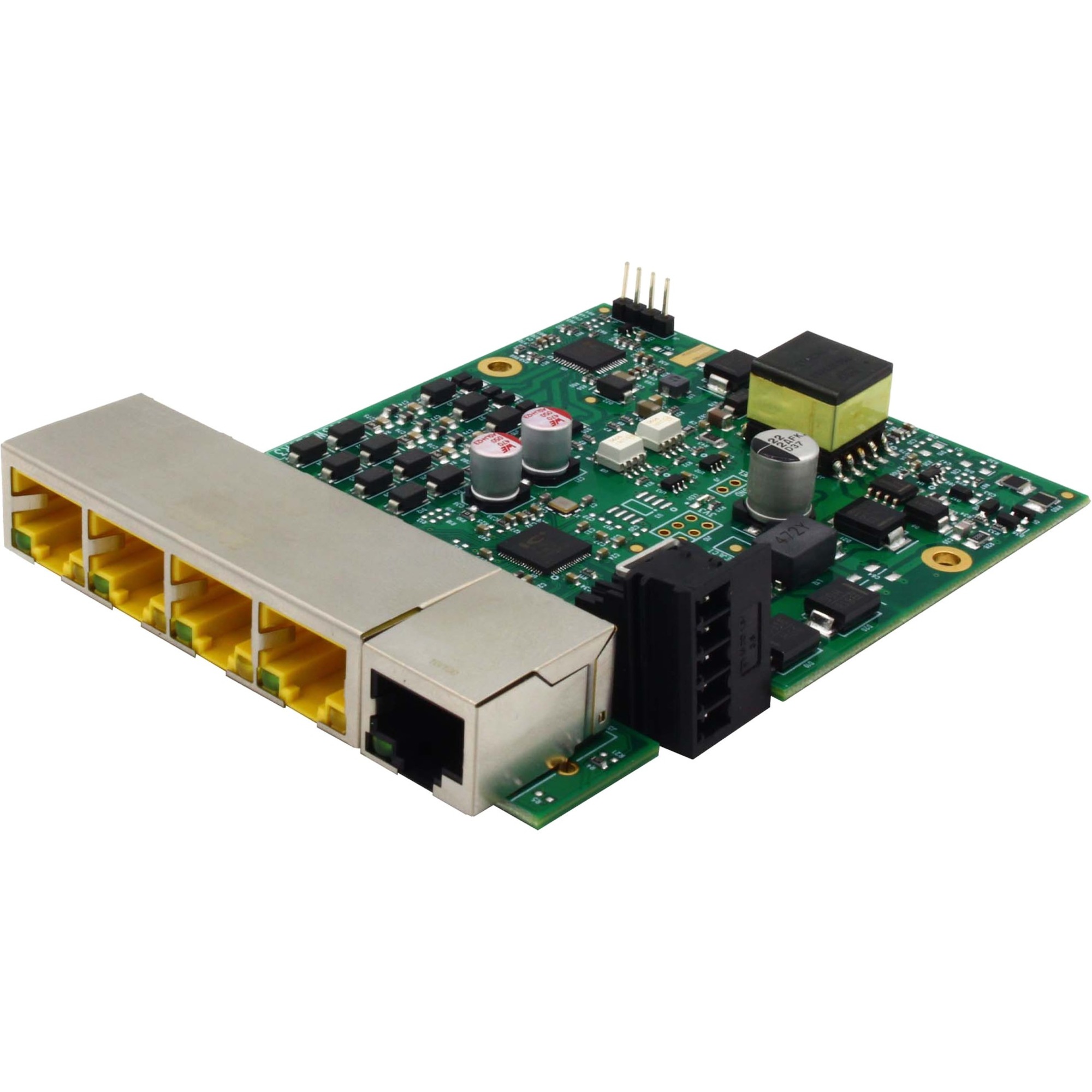

Brainboxes Embedded Industrial 5 Port PoE+ 10/100 Ethernet Switch

5 Ports - Fast Ethernet - 10/100Base-T - 2 Layer Supported - 4 W Power Consumption - 90 W PoE Budget - Twisted Pair - PoE Ports - Lifetime Limited Warranty

Part No. SW-125

by Brainboxes Limited

$229.99

Specifications
Options & Accessories (2)

General Information

Manufacturer	Brainboxes Limited
Manufacturer Part Number	SW-125
Brand Name	Brainboxes
Product Model	SW-125
Product Name	Embedded Industrial 5 Port PoE+ 10/100 Ethernet Switch
Marketing Information	Compact embeddable 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	5
Network (RJ-45)	Yes
Port/Expansion Slot Details	4 x Fast Ethernet PoE+ 1 x Fast Ethernet Network

Media & Performance

Media Type Supported	Twisted Pair
Ethernet Technology	Fast Ethernet
Network Technology	10/100Base-T

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3at IEEE 802.3af

Management & Protocols

Manageable	No

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	90 W
Input Voltage	44 V DC 57 V DC
Power Source	Power Supply USB
Redundant Power Supply Supported	Yes
Power Consumption	4 W
Plug/Connector Type	Terminal Block

Physical Characteristics

Height	3.94" (100 mm)
Width	3.54" (90 mm)
Depth	2.36" (60 mm)
Weight (Approximate)	2.68 oz (76 g)

Miscellaneous

Package Contents	Embedded Industrial 5 Port PoE+ 10/100 Ethernet Switch Quick Start Guide
Country of Origin	Great Britain
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Condition	No

Warranty

Limited Warranty	Lifetime
