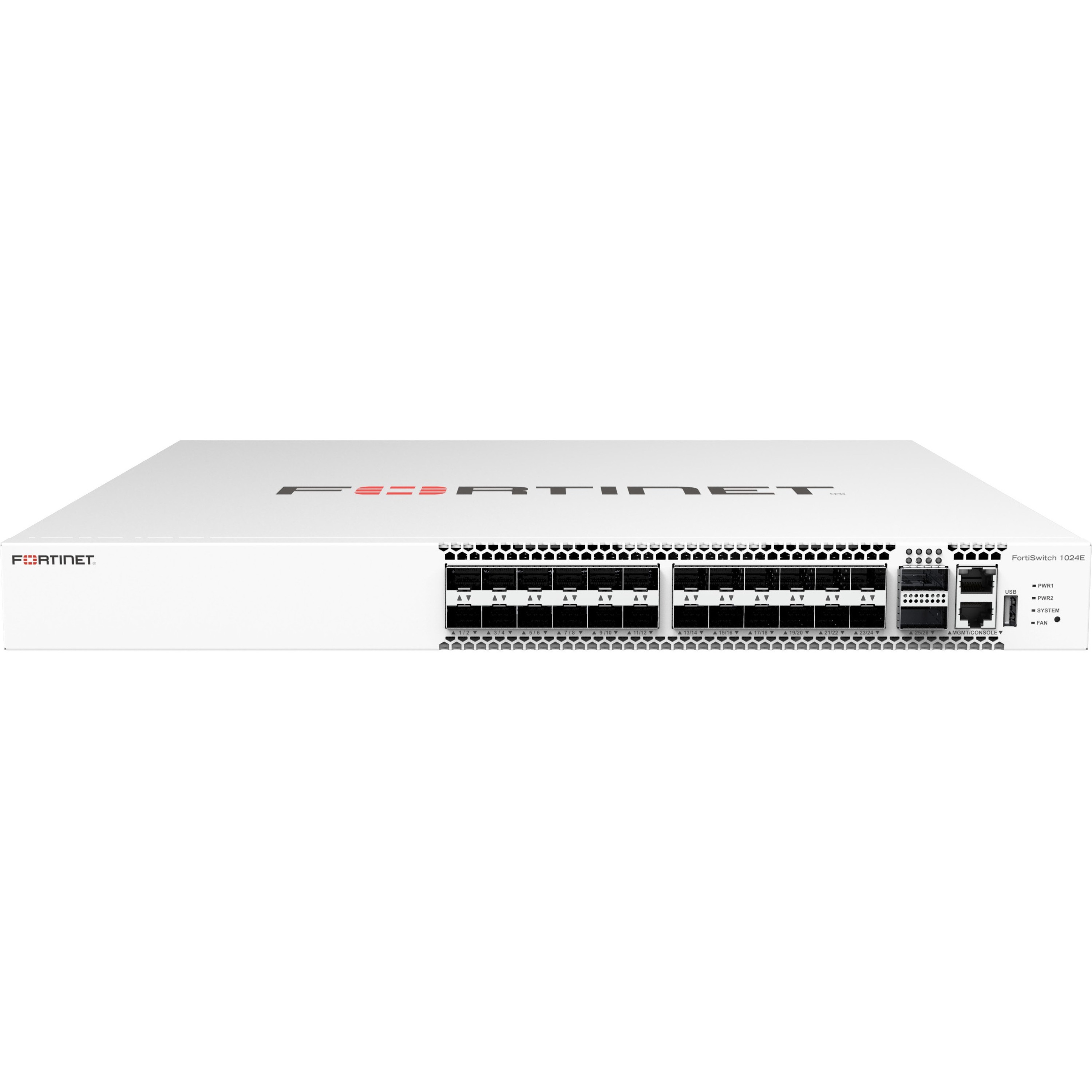

Fortinet FortiSwitch T1024E Ethernet Switch

Part No. FS-T1024E

by Fortinet, Inc

$15149.99

Fortinet FortiSwitch T1024E Ethernet Switch

24 Ports - Manageable - 10 Gigabit Ethernet - 10GBase-T, 100GBase-X - 3 Layer Supported - Modular - 128 W Power Consumption - Optical Fiber - 1U - Rack-mountable

Part No. FS-T1024E

by Fortinet, Inc

$15149.99
General Information
ManufacturerFortinet, Inc
Manufacturer Part NumberFS-T1024E
Brand NameFortinet
Product LineFortiSwitch
Product ModelT1024E
Product NameFortiSwitch T1024E Ethernet Switch
Marketing Information

Secure, Simple, Scalable Ethernet Solution | FortiSwitch Data Center switches deliver a secure, simple, scalable Ethernet solution with outstanding throughput, resiliency, and scalability. Virtualization and cloud computing have created dense high-bandwidth Ethernet networking requirements. FortiSwitch Data Center switches meet these challenges by providing a high-performance 10 GE, 40 GE, or 100 GE capable switching platform, with a low total cost of ownership. Ideal for Top of Rack server or firewall aggregation applications, as well as SD-Branch network core deployments, these switches are purpose-built to meet the needs of today's bandwidth-intensive environments.

Security Fabric Integration Through FortiLink
The FortiSwitch Data Center Series supports FortiGate management through FortiLink, extending the Fortinet Security Fabric to the Ethernet port level. This link allows the same policies configured and applied to FortiGate interfaces to be applied to the FortiSwitch Ethernet ports, reducing complexity and decreasing management cost. With network security and access layer functions enabled and managed through a single console, centralized policy management, including role-based access and control, are easy to implement and manage. Users or devices can be authenticated against the same database and have the same security policy applied regardless of how or where they connect to the network.

Product TypeEthernet Switch
Interfaces/Ports
Total Number of Network Ports24
Uplink PortYes
ModularYes
Stack PortYes
Port/Expansion Slot Details
  • 24 x 10 Gigabit Ethernet Expansion Slot
  • 2 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type SupportedOptical Fiber
Ethernet Technology10 Gigabit Ethernet
Network Technology
  • 10GBase-T
  • 100GBase-X
I/O Expansions
Total Number of Expansion Slots2
Expansion Slot TypeQSFP28
Shared SFP SlotNo
Network & Communication
Layer Supported3
Networking Standards
  • IEEE 802.1ad
  • IEEE 802.1AX
  • IEEE 802.1D
  • IEEE 802.1Q
  • IEEE 802.1Qbb
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3ae
  • IEEE 802.3ba
  • IEEE 802.3bj
  • IEEE 802.3bm
  • IEEE 802.3bz
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.1x
  • IEEE 802.1ab
  • IEEE 802.1p
  • IEEE 1588
Management & Protocols
ManageableYes
Power Description
Input Voltage
  • 110 V AC
  • 230 V AC
Frequency
  • 50 Hz
  • 60 Hz
Power SourcePower Supply
Redundant Power Supply SupportedYes
Power Consumption128 W
Physical Characteristics
Compatible Rack Unit1U
Form FactorRack-mountable
Height1.71" (43.43 mm)
Width17.26" (438.40 mm)
Depth18.11" (459.99 mm)
Weight (Approximate)14.40 lb (6531.73 g)
