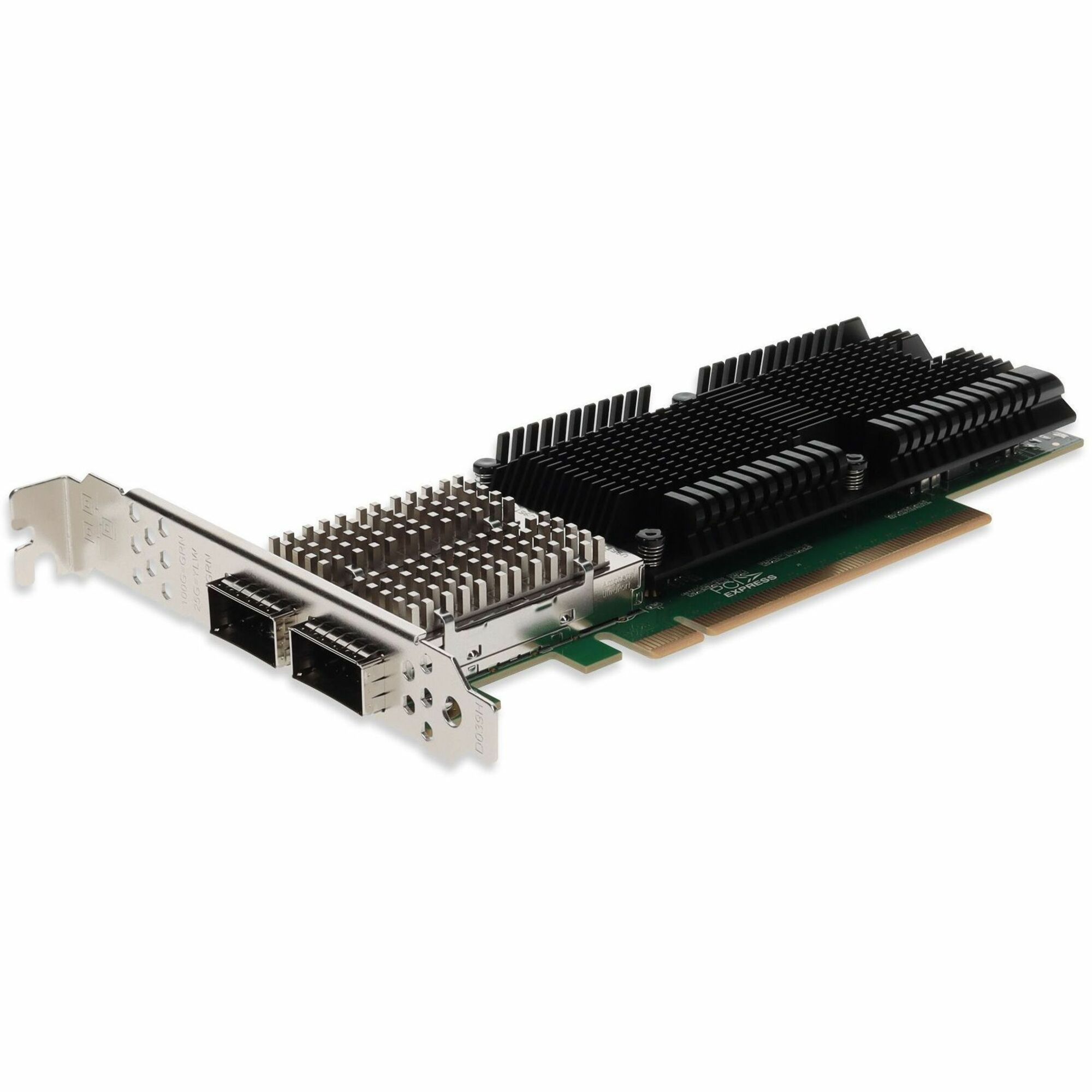

AddOn 100Gbs Dual Open QSFP28 Port PCIe 4.0 x16 Network Interface Card w/PXE boot
100GBS 2X QSFP28 PORT PCIE 4.0 CIE X16 NICW/PXE BOOT
$2379.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-PCIE4-2QSFP28 |
| Brand Name | AddOn |
| Product Name | 100Gigabit Ethernet Card |
| Marketing Information | This is a 100-Gigabit Ethernet PCIe 4.0 x16 network interface card with dual open QSFP28 ports that comply with IEEE 802.3 standards. It is based on an Intel E810 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 100Gbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering, iWarp, and RoCE. The dual open QSFP28 ports allow users to choose from a range of QSFP28 transceivers to accommodate multi-mode (MMF) and single-mode (SMF) fiber, granting customizable reach. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time. |
| Packaged Quantity | 1 |
| Product Type | 100Gigabit Ethernet Card |
Technical Information
| Chipset Manufacturer | Intel |
| Chipset Model | E810 |
Interfaces/Ports
| Host Interface | PCI Express 4.0 x16 |
I/O Expansions
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | QSFP28 |
Media & Performance
| Media Type Supported | Optical Fiber |
| Maximum Operating Distance | 328.08 ft (100000 mm) |
| Maximum Data Transfer Rate | 800 Gbit/s |
| Fiber Mode Supported |
|
Network & Communication
| Network Technology | 100GBase-X |
Physical Characteristics
| Color Family | Multicolor |
| Product Color |
|
| Form Factor | Plug-in Card |
| Height | 8" (203.20 mm) |
| Width | 4" (101.60 mm) |
| Depth | 1" (25.40 mm) |
| Weight (Approximate) | 4.80 oz (136.08 g) |
Miscellaneous
| Package Contents |
|
| Application/Usage | Network |
| Additional Information | |
| Device Supported | Server |
| Operating System Compatibility |
|
| Country of Origin | China |
| TAA Compliant | No |
| Condition | No |
| UPC | 0195285482921 |
Warranty
| Limited Warranty | Lifetime |
