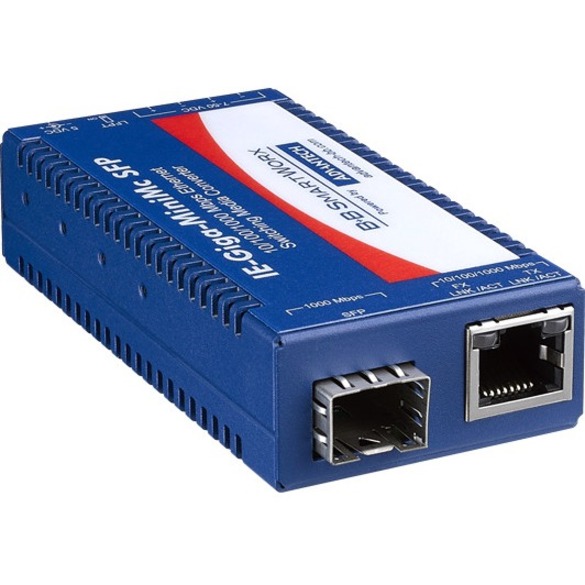

Advantech 10/100/1000Mbps Miniature Media Converter with LFPT
1 x Network (RJ-45) - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 1 x Expansion Slots - SFP (mini-GBIC) - 1 x SFP Slots - Power Adapter - DIN Rail Mountable, Wall Mountable, Compact
$468.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | IMC-370-SFP-PS-B |
| Brand Name | Advantech |
| Product Series | IMC-370 |
| Product Name | 10/100/1000Mbps Miniature Media Converter with LFPT |
| Marketing Information | The IMC-370 series offers the most compact media converters. They can extend the 10/100/1000Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100/1000 auto negotiation on the copper port and 1000Mbps full-duplex on the fiber port, the IMC-370I series serves as a media and data rate converter that has NEMA TS2 rating, making it ideal for use in traffic applications. The IMC-370 series supports Link Fault Pass Through (LFPT) functionality which can be enabled/disabled by a DIP switch on the unit. This useful diagnostic feature assists the network administrator in indicating a fault condition on a given segment between the interfaces. The IMC-370 supports plug-n-play functionality, auto negotiation, and AutoCross operation. It can be powered by AC/DC power, dual USB cable, or via installation in the centrally- powered media converter chassis. |
| Product Type | Transceiver/Media Converter |
Interfaces/Ports
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
Media & Performance
| Media Type Supported |
|
I/O Expansions
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
| Network Technology |
|
Power Description
| Power Source | Power Adapter |
| Frequency |
|
Physical Characteristics
| Form Factor |
|
| Height | 0.83" (21.10 mm) |
| Width | 1.80" (45.70 mm) |
| Depth | 3.35" (85.10 mm) |
| Weight (Approximate) | 11.18 oz (317 g) |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0663069957205 |
