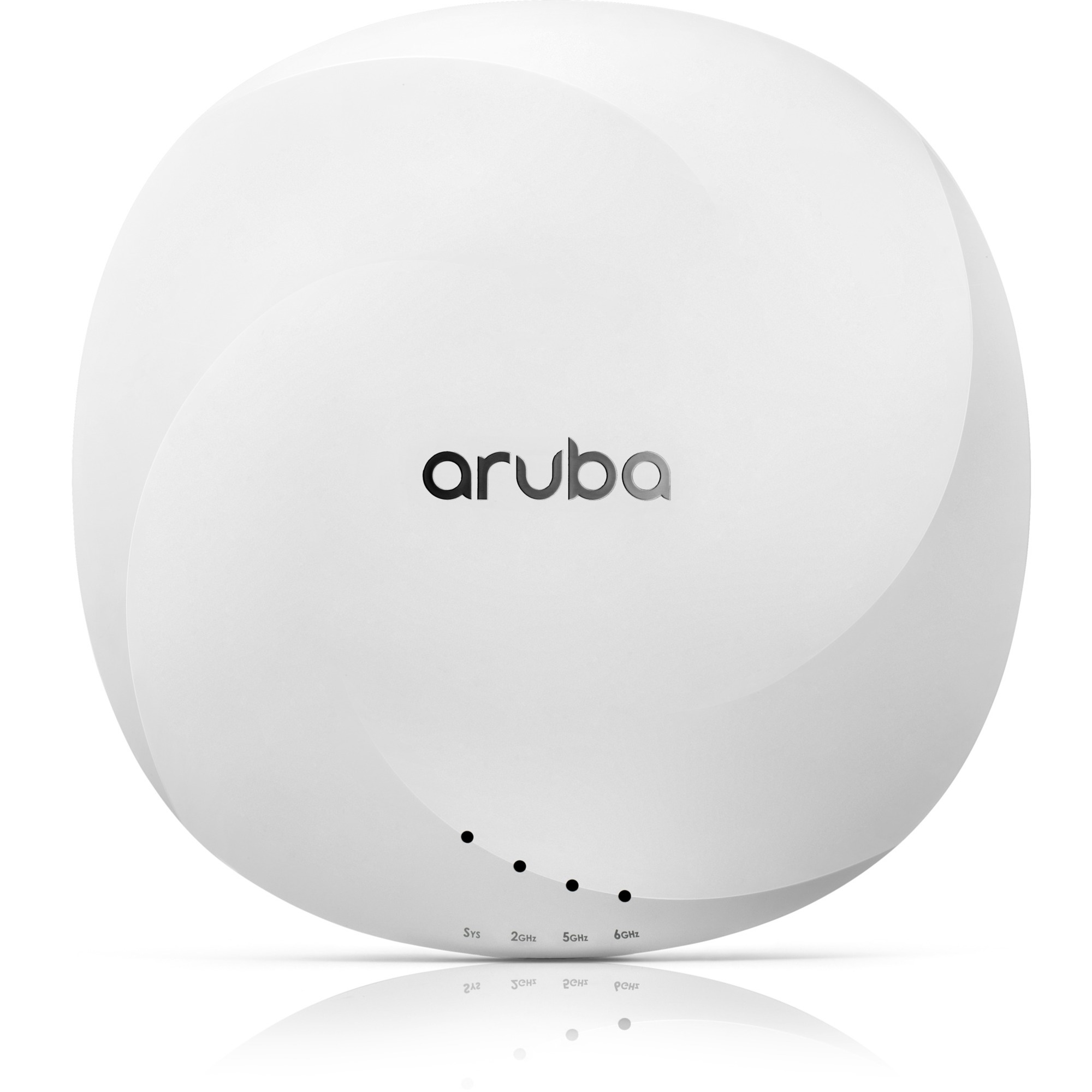

HPE AP-655 Tri Band IEEE 802.11ax 7.80 Gbit/s Wireless Access Point - Indoor

Part No. R7J43A

by Hewlett Packard Enterprise

HPE AP-655 Tri Band IEEE 802.11ax 7.80 Gbit/s Wireless Access Point - Indoor

2.40 GHz, 5 GHz, 6 GHz - Internal - MIMO Technology - 2 x Network (RJ-45) - 5 Gigabit Ethernet - Bluetooth 5 - Ceiling Mountable

Part No. R7J43A

by Hewlett Packard Enterprise

$2818.99
General Information
ManufacturerHewlett Packard Enterprise
Manufacturer Part NumberR7J43A
Brand NameHPE
Product Series650
Product ModelAP-655
Product NameAP-655 Wireless Access Point
Marketing Information

By leveraging the 6 GHz band, Aruba 650 Series Campus APs delivers peak performance and far greater capacity than previous generations of Wi-Fi. With up to 1200 MHz of new channels, capacity is nearly tripled - so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices and growth in cloud. Unique to Aruba, the 650 Series includes ultra tri-band filtering to minimize channel interference and dual configurable 5 Gbps ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity.

MORE CAPACITY AND WIDER CHANNELS
The 650 Series APs are designed to take advantage of the 6GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. It delivers 7.8 Gbps maximum aggregate data rates tri-radio, 4x4:4 uplink/downlink MIMO in all three bands (7.8 Gbps aggregate peak).

Advantages of 6GHz
Wi-Fi 6E provides up to 1200MHz in the 6GHz band for higher throughput and improved application performance. With up to seven 160MHz channels, Wi-Fi 6E can better support lowlatency, bandwidth hungry applications like high-definition video and artificial reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6GHz band so there is no interference or slowdowns due to legacy devices.

Device class support
The 650 Series APs are part of the low power indoor (LPI) device class. This fixed indoor-only class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services which is required for standard class APs.

LESS INTERFERENCE
650 Series Access Points include Aruba's ultra tri-band filtering, which enables enterprises to take advantage of the high end of 5GHz with the lower end of 6GHz without experiencing interference. Since there is only 50MHz between 5GHz and the 6GHz, without advanced filtering, enterprises would likely experience problems between the bands and would therefore be limited in the number of channels available. By applying advanced filtering capabilities, enterprises can take full use of available spectrum without creating coverage gaps or islands.

BUSINESS CONTINUITY
The Series 650 APs provide high availability with two HPE Smart Rate ethernet ports for hitless failover for both data and power. Configurable to 1, 2.5, or 5 Gbps, these dual ports provide business continuity for mission critical applications.

GLOBAL READINESS
While the need for more Wi-Fi capacity is recognized across the globe, countries are approaching 6GHz differently. The 650 Series APs are set up to automatically update regulatory rules once 6E regulations have been approved and certified.

Product TypeWireless Access Point
Technical Information
Wireless LAN StandardIEEE 802.11ax
Bluetooth StandardBluetooth 5
Network BandTri Band
Frequency Band
  • 2.40 GHz
  • 5 GHz
  • 6 GHz
Indoor/OutdoorIndoor
Wireless Transmission Speed7.80 Gbit/s
MIMO TechnologyYes
Beamforming TechnologyYes
Data EncryptionYes
Encryption Standard
  • WPA2-MPSK
  • WPA3-ENT
  • WPA2-ENT
  • WPA-ENT

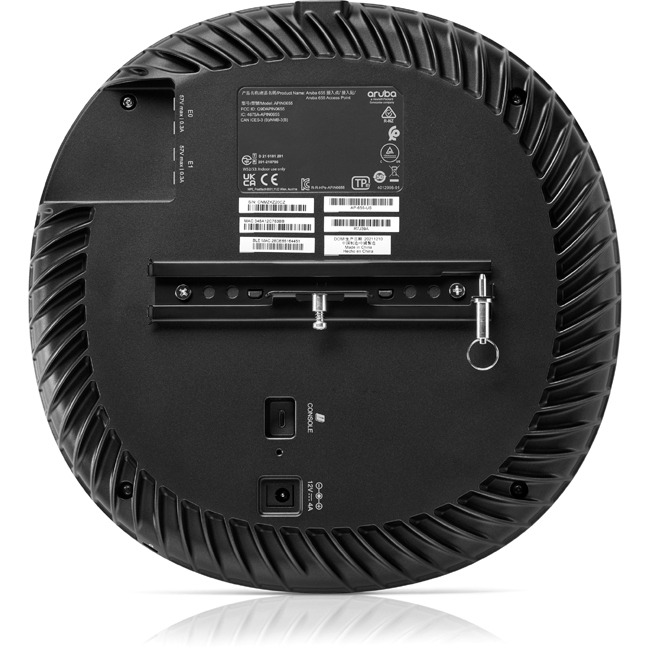

Interfaces/Ports
Ethernet Technology5 Gigabit Ethernet
Number of Network (RJ-45) Ports2
PoE PD PortYes
USBYes
Management PortYes
Physical Characteristics
Form FactorCeiling Mountable
Antenna Form FactorInternal
Height23.62" (600 mm)
Width10.24" (260 mm)
Depth10.24" (260 mm)
Weight (Approximate)3.97 lb (1800 g)
Miscellaneous
TAA CompliantYes
ConditionNo
UPC0190017493077
