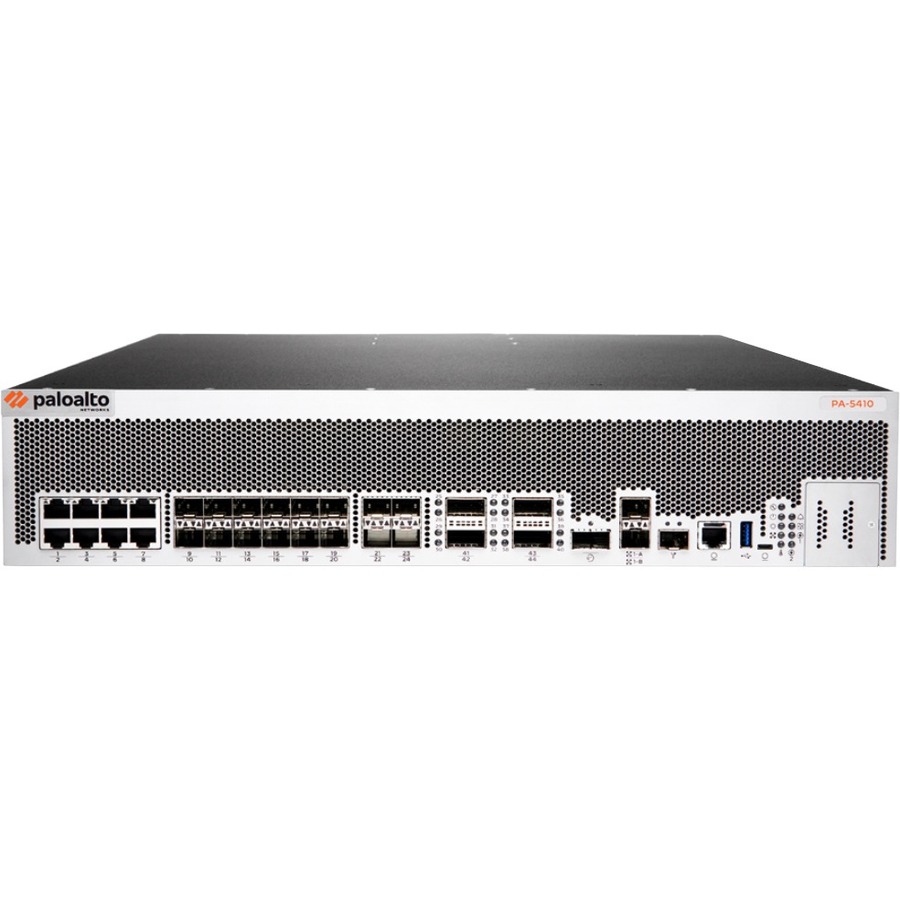

Palo Alto PA-5410 Network Security/Firewall Appliance

Intrusion Prevention - 8 Port - 10GBase-T, 10GBase-X, 40GBase-X, 100GBase-X - 100 Gigabit Ethernet - 46.20 Gbit/s Firewall Throughput - 3DES, AES (128-bit), AES (192-bit), AES (256-bit), MD5, SHA-1, SHA-256, SHA-384, SHA-512 - 8 x RJ-45 - 20 Total Expansion Slots - 50 Hz, 60 Hz - 2U - Rack-mountable

Part No. PAN-PA-5410-DC

by Palo Alto Networks

$104992.99

Manufacturer Brochure

Specifications

General Information

Manufacturer	Palo Alto Networks
Manufacturer Part Number	PAN-PA-5410-DC
Brand Name	Palo Alto
Product Series	5400
Product Model	PA-5410
Product Name	PA-5410 Network Security/Firewall Appliance
Marketing Information	Palo Alto Networks PA-5400 Series ML-Powered NGFWs-comprising the PA-5430, PA-5420, and PA-5410-are ideal for high-speed data center, internet gateway, and service provider deployments. The PA-5400 Series appliances secure all traffic, including encrypted traffic. The world's first ML-Powered Next-Generation Firewall (NGFW) enables you to prevent unknown threats, see and secure everything-including the Internet of Things (IoT)-and reduce errors with automatic policy recommendations. The controlling element of the PA-5400 Series is PAN-OS®, the same software that runs all Palo Alto Networks NGFWs. PAN-OS natively classifies all traffic, inclusive of applications, threats, and content, and then ties that traffic to the user regardless of location or device type. The application, content, and user-in other words, the elements that run your business-then serve as the basis of your security policies, resulting in improved security posture and reduced incident response time. Key Security and Connectivity Features \| ML-Powered Next-Generation Firewall Embeds machine learning (ML) in the core of the firewall to provide inline signatureless attack prevention for file-based attacks while identifying and immediately stopping never-before-seen phishing attempts Leverages cloud-based ML processes to push zero-delay signatures and instructions back to the NGFW Uses behavioral analysis to detect IoT devices and make policy recommendations; cloud-delivered and natively integrated service on the NGFW. Automates policy recommendations that save time and reduce the chance of human error. Identifies and Categorizes All Applications, on All Ports, All the Time, with Full Layer 7 Inspection Identifies the applications traversing your network irrespective of port, protocol, evasive techniques, or encryption (TLS/SSL). In addition, it automatically discovers and controls new applications to keep pace with the SaaS explosion with SaaS Security subscription. Uses the application, not the port, as the basis for all your safe enablement policy decisions: allow, deny, schedule, inspect, and apply traffic-shaping. Offers the ability to create custom App-ID™ tags for proprietary applications or request App-ID development for new applications from Palo Alto Networks. Identifies all payload data within the application (e.g., files and data patterns) to block malicious files and thwart data exfiltration attempts. Creates standard and customized application usage reports, including software-as-a-service (SaaS) reports that provide insight into all sanctioned and unsanctioned SaaS traffic on your network. Enables safe migration of legacy Layer 4 rule sets to App-ID-based rules with built-in Policy Optimizer, giving you a rule set that is more secure and easier to manage.
Packaged Quantity	1
Product Type	Network Security/Firewall Appliance

Technical Information

Functionality	Intrusion Prevention
Firewall Protection Supported	Threat Protection Application Firewall SSL Encrypted Traffic Protection User Authentication Data Loss Prevention URL Filtering DNS Security Secure IPsec VPN Connectivity Zero Day Event IoT Security SaaS Security Intrusion Prevention Advanced Threat Protection Malware Protection Web Protection
Firewall Throughput	46.20 Gbit/s
Encryption Standard	3DES AES (128-bit) AES (192-bit) AES (256-bit) MD5 SHA-1 SHA-256 SHA-384 SHA-512

Interfaces/Ports

Total Number of Ports	8
USB	Yes
Number of Network (RJ-45) Ports	8

Media & Performance

VPN Throughput	2.63 GB/s

Network & Communication

Ethernet Technology	100 Gigabit Ethernet
Network Standard	10GBase-T 10GBase-X 40GBase-X 100GBase-X

I/O Expansions

Total Number of Expansion Slots	20
Expansion Slot Type	SFP+ SFP28 QSFP28
Number of SFP+ Slots	12

Management & Protocols

Manageable	Yes

Power Description

Frequency	50 Hz 60 Hz

Physical Characteristics

Compatible Rack Unit	2U
Form Factor	Rack-mountable
Height	3.45" (87.63 mm)
Width	17.34" (440.44 mm)
Depth	22.50" (571.50 mm)
Weight (Approximate)	35.20 lb (15966.45 g)

Miscellaneous

Application/Usage	Data Center Enterprise Office Home Network
Condition	No

Warranty

Limited Warranty	12 Month
