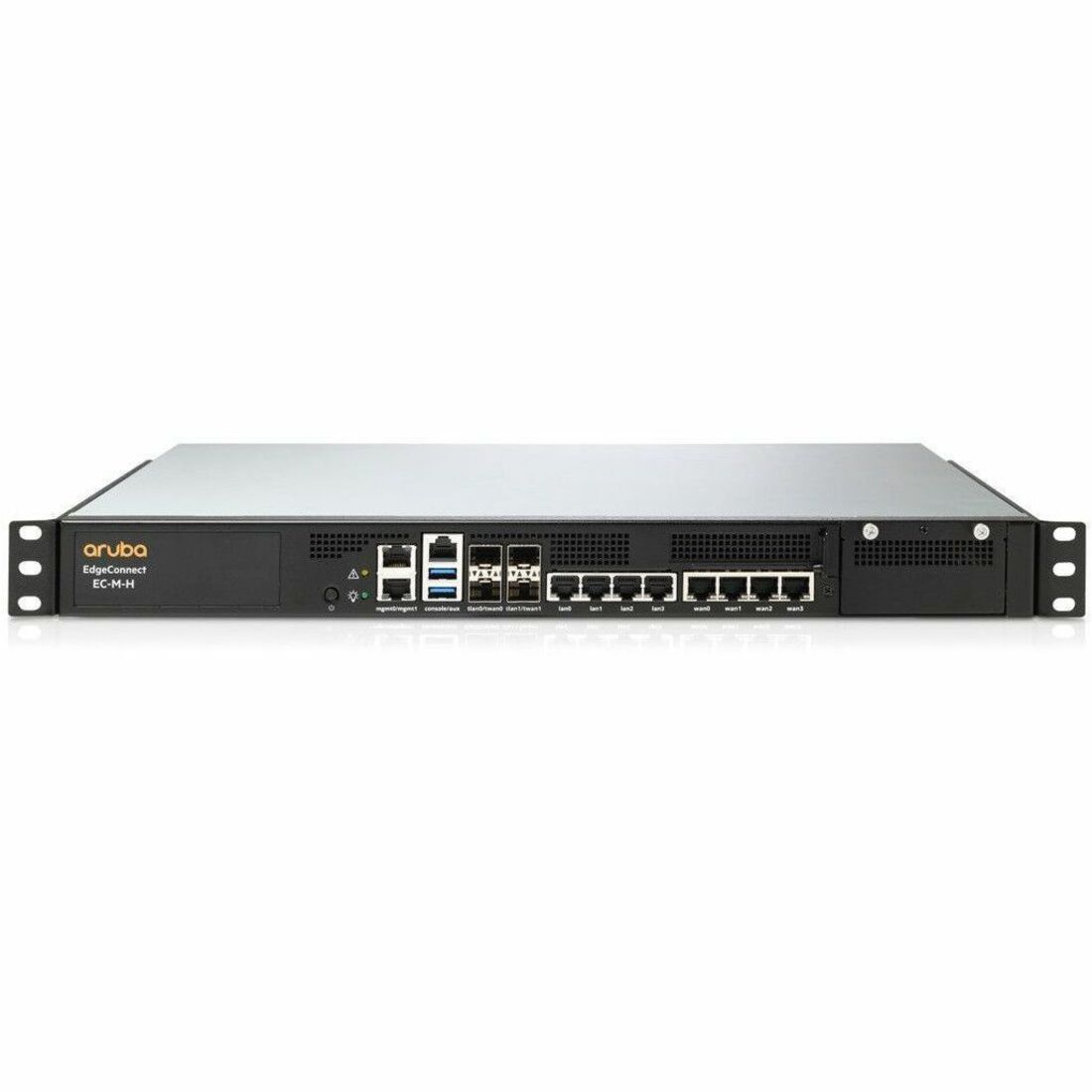

The Aruba EdgeConnect SD-WAN EC-M-H is a 1 U rack mountable hub gateway platform that serves to build an SD-WAN fabric using zero touch provisioning. It supports MPLS, 4G/LTE/5G and internet-based hybrid WAN transport services and a control plane that is automated and secured by the Aruba WAN Orchestrator centralized management software providing policy-based virtual network segmentation and acceleration of on-premises and SaaS cloud applications. Key features of Aruba EdgeConnect SD-WAN EC-M-H include high-availability through power supply and storage redundancy, 8 x 1GbE RJ45 ports along with 4 x 1/10Gbps Short Reach (SR) or Long Reach (LR) fiber optical ports, making it an ideal platform for Data Center and large hub environments with typical WAN bandwidth from 50Mbps to 5 Gbps (bidirectional).

• 10GBase-X
• 10/100/1000Base-T

• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.1Q

• FCC Part 15 Class A
• EN 55024/55032/55035 Class A
• VCCI Class A
• EN 61000-3-2/3-3
• UL/CB 60950-1 / 62368-1
• EN 60950 / 62368
