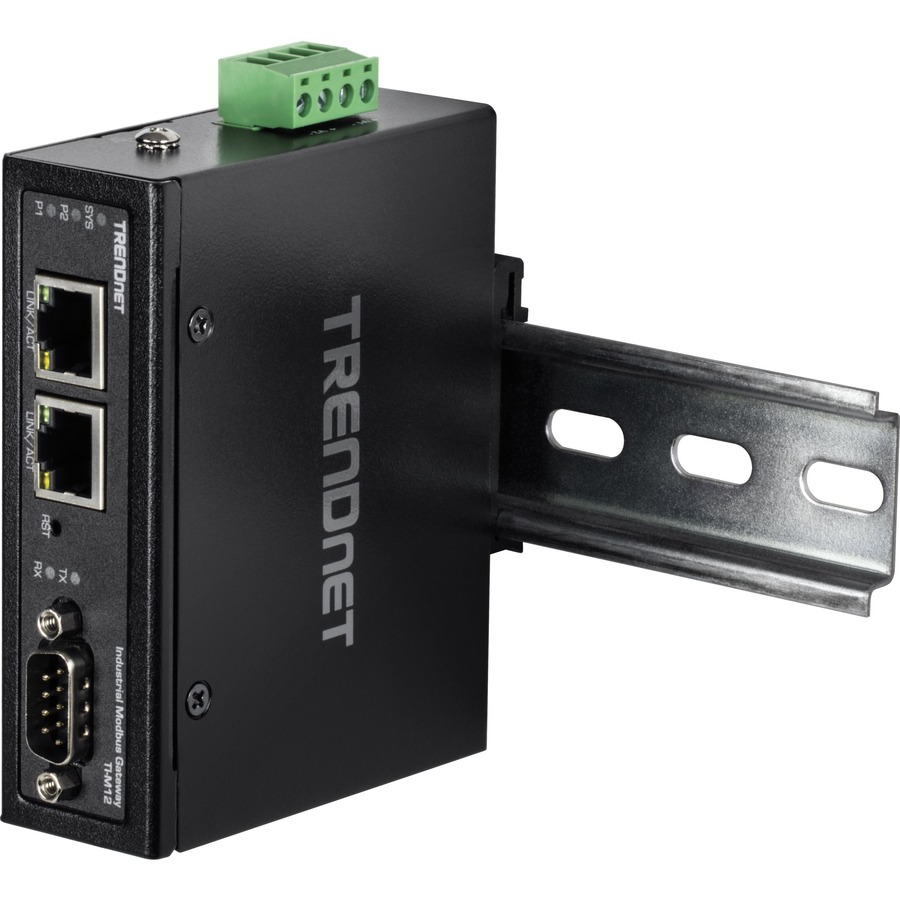

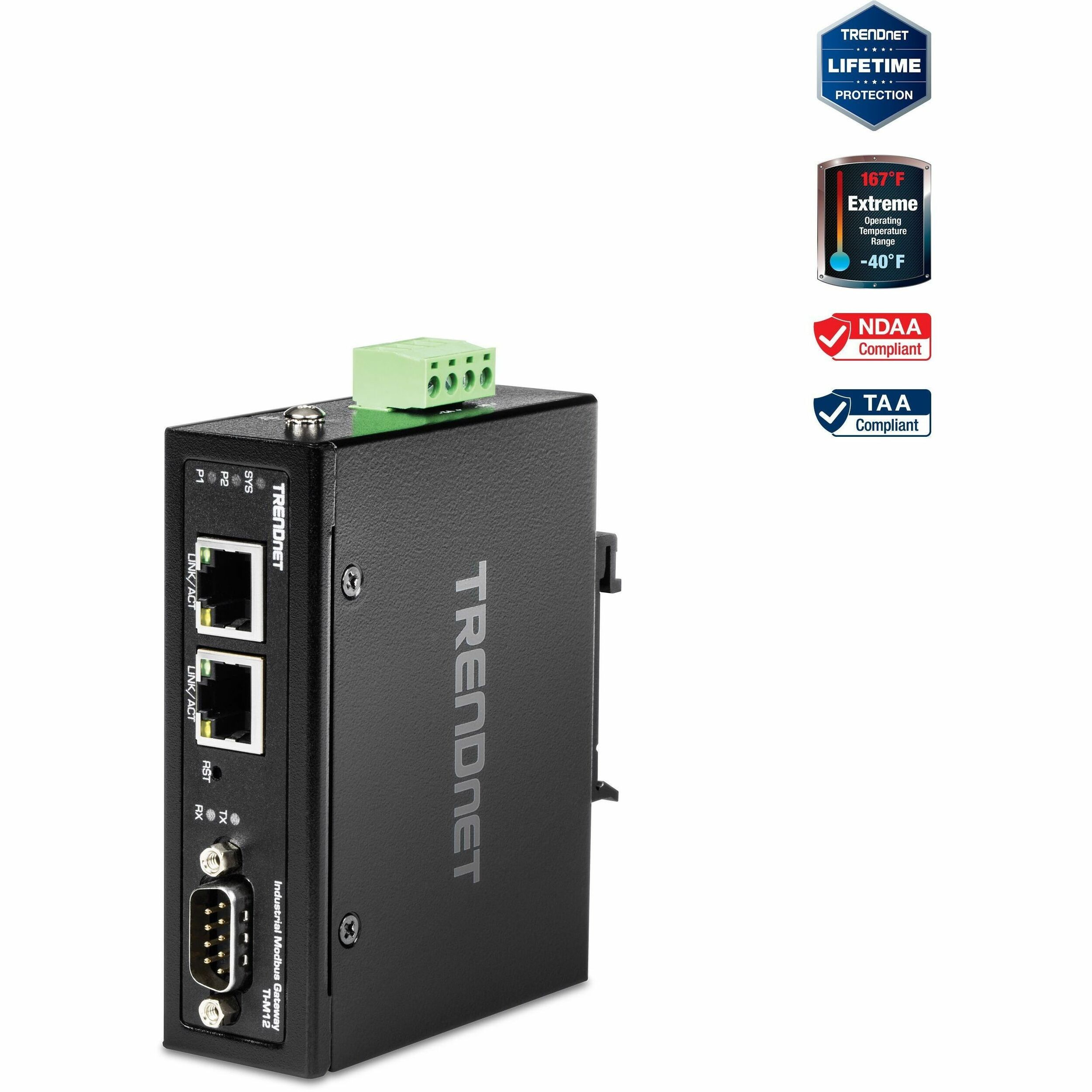

TRENDnet Industrial Modbus Gateway

Twisted Pair - 2 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - DIN Rail Mountable, Wall Mountable

Part No. TI-M12

by TRENDnet

$325.99

Specifications

General Information

Manufacturer	TRENDnet
Manufacturer Part Number	TIM12
Brand Name	TRENDnet
Product Model	TI-M12
Product Name	Industrial Modbus Gateway
Marketing Information	TRENDnet's Industrial Modbus Gateway, model TI-M12, provides one port serial connection and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling. This industrial modbus gateway allows users to connect a modbus serial device to a network. DEVICE INTERFACE: 1 x Serial (DB-9) port; 2 x 10/100Mbps (RJ-45) ports; 4-pin removable terminal block; LED indicators; DIN-Rail mount; Wall mount; Grounding point LIFETIME PROTECTION -We stand by the quality of our products. The TI-M12 1-Port Fast Ethernet Industrial Modbus Gateway with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only) NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial Modbus Gateway, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only) CONNECT ONE SERIAL DEVICE: The 1-Port Industrial Modbus Gateway supports RS-232, RS-422 and 2-wire RS-485, and allows you to connect one serial device such as a modem to a network. MANAGEMENT CONFIGURATION: Web / Telnet / Windows -based management IP30 RATED HOUSING: Hardened components for the Modbus Gateway are rated for extreme temperatures - 40° - 75° C (-40° - 167° F DATA TRANSFER RATE: The modbus gateway has a serial port baud rate from 50 bps to 921.6 Kbps Supports DHCP, automatically obtain an IP address and query IP address through serial setting protocol Auto-MDI/MDIX, RJ45 port with 10/100Mbps
Product Type	Device Server

Media & Performance

Media Type Supported	Twisted Pair

Network & Communication

Ethernet Technology	Fast Ethernet
Network Standard	10/100Base-TX

Interfaces/Ports

Network (RJ-45)	Yes
Serial Port	Yes
Number of Network (RJ-45) Ports	2
Number of Serial Ports	1

Power Description

Input Voltage	12 V DC 56 V DC
Input Voltage Range	12V DC to 56V DC
Power Consumption	3.84 W

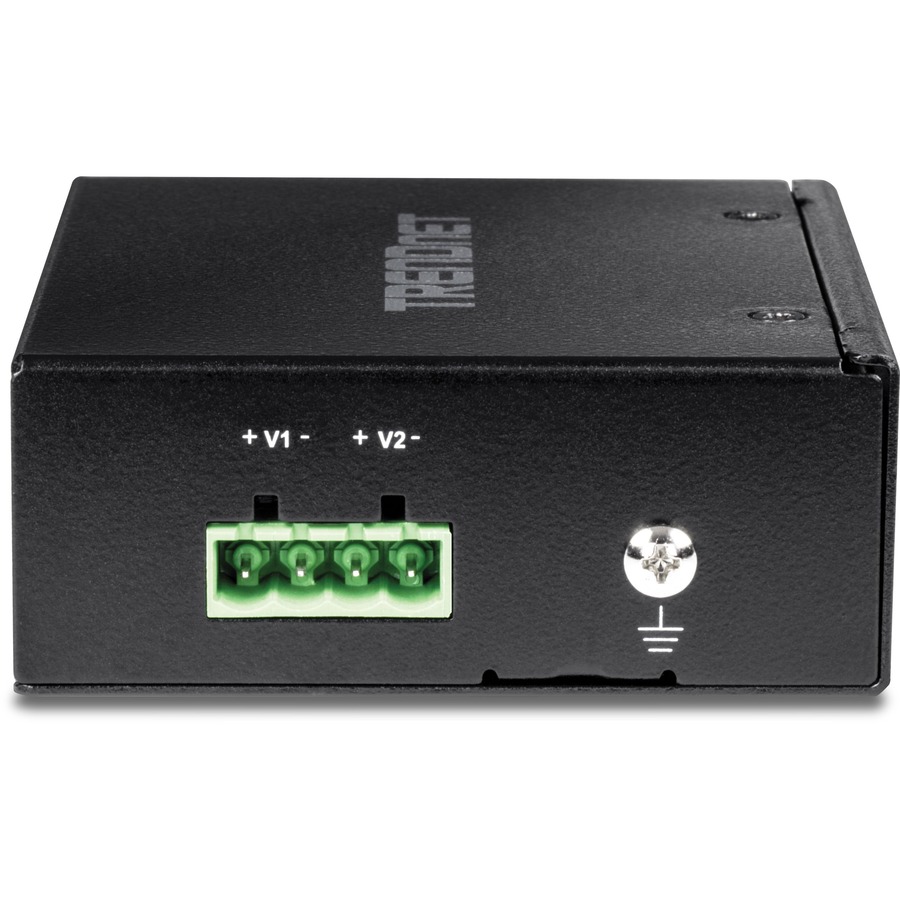

Plug/Connector Type	Terminal Block

Physical Characteristics

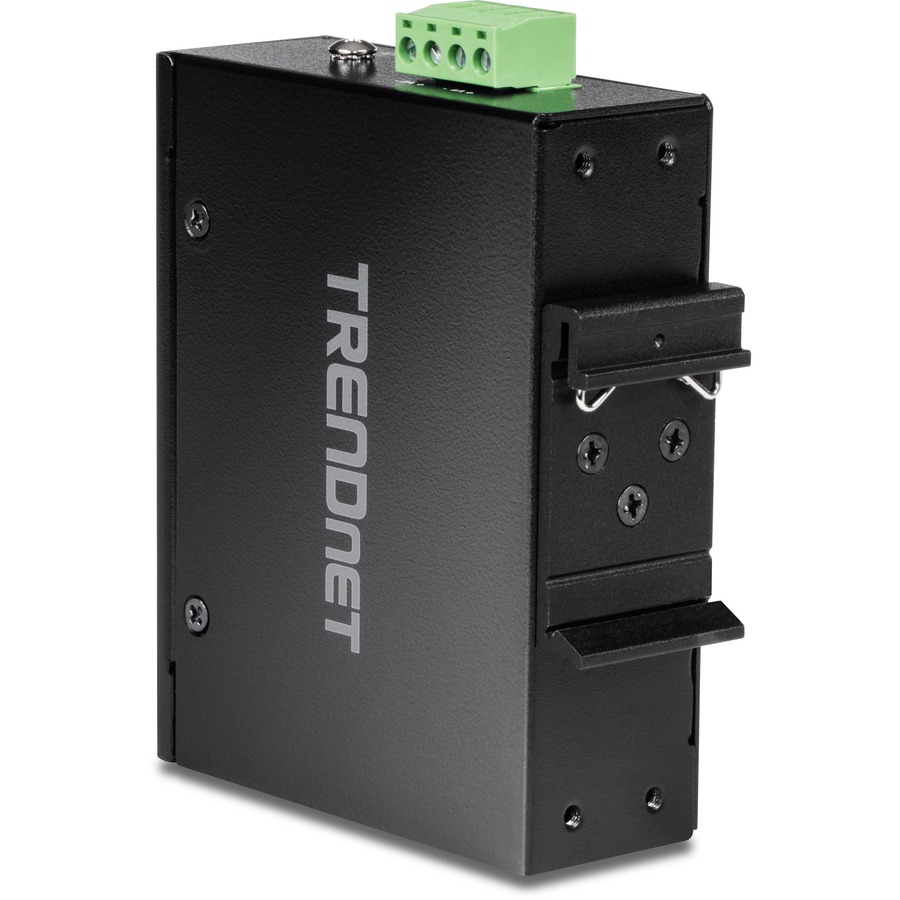

Form Factor	DIN Rail Mountable Wall Mountable
Height	1.22" (31 mm)
Width	4.07" (103.50 mm)
Depth	3.15" (80 mm)
Weight (Approximate)	5.43 oz (154 g)

Miscellaneous

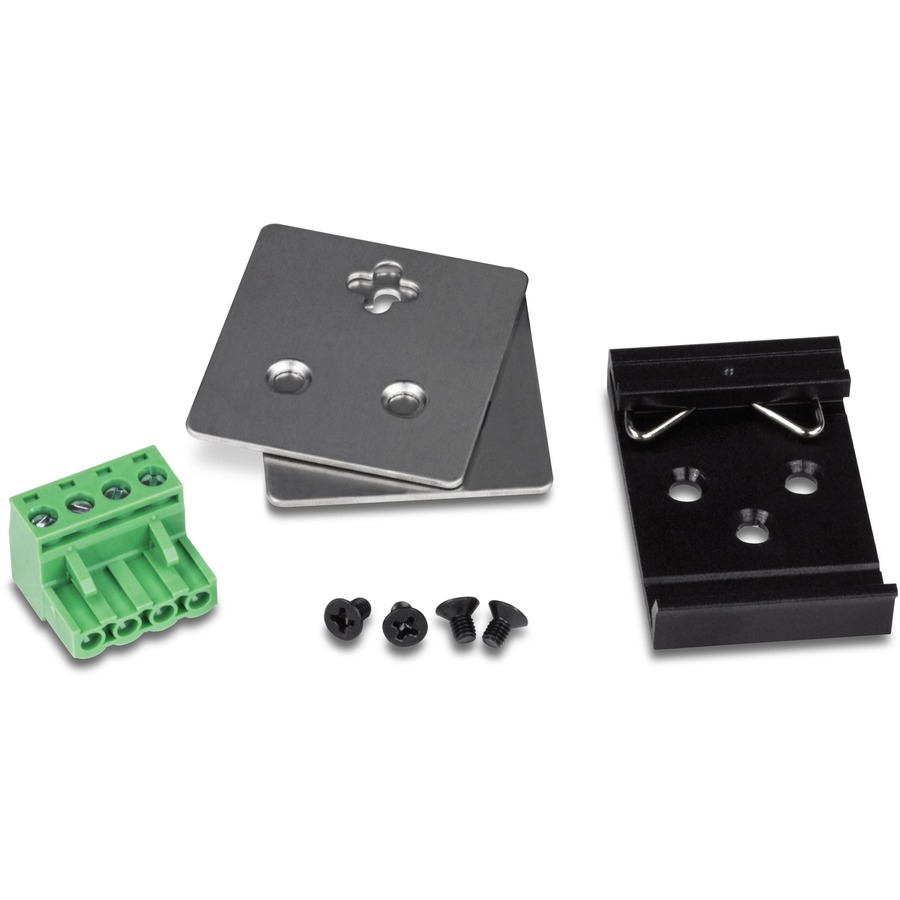

Package Contents	Industrial Modbus Gateway Quick Installation Guide Removable Terminal Block DIN-Rail and Wall Mount Kit
Country of Origin	Taiwan
Condition	No
UPC	710931161656

Warranty

Limited Warranty	Lifetime
