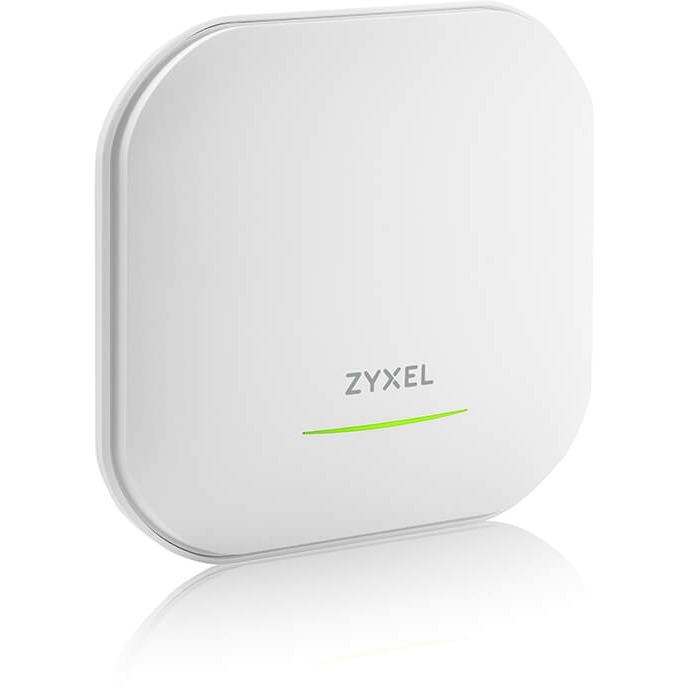

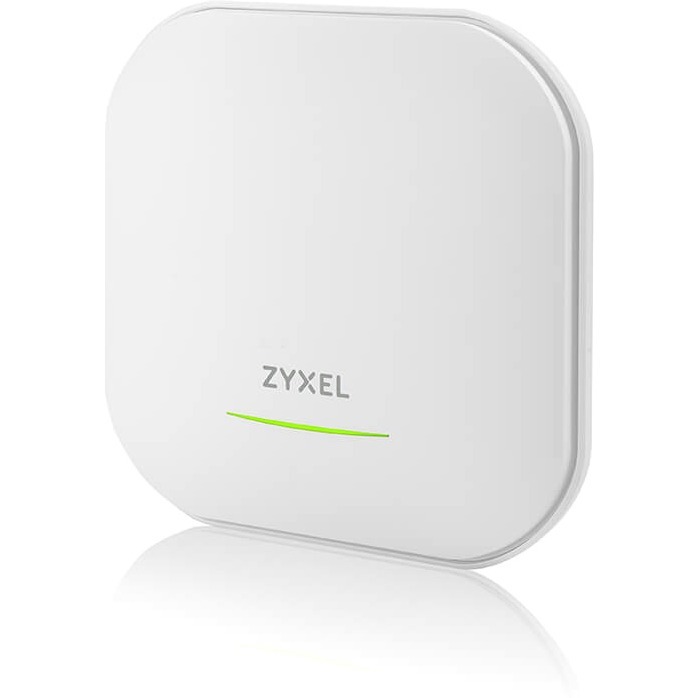

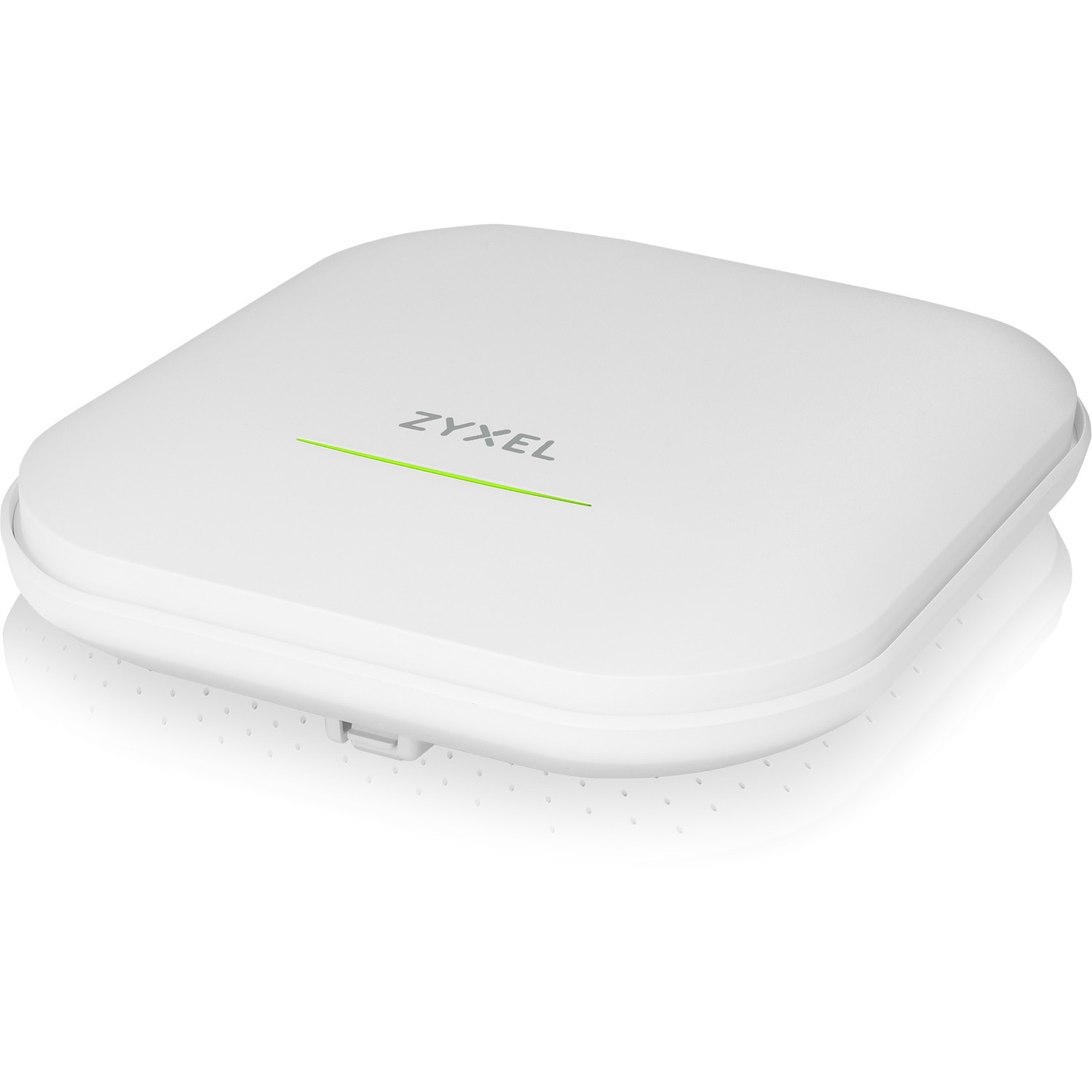

ZYXEL WAX620D-6E Tri Band IEEE 802.11 a/b/g/n/ac/ax 5.40 Gbit/s Wireless Access Point - Indoor
2.40 GHz, 5 GHz, 6 GHz - 6 x Internal Antenna(s) - Internal - MIMO Technology - Multi User MIMO - 2 x Network (RJ-45) - Gigabit Ethernet, 2.5 Gigabit Ethernet - Wall Mountable, Ceiling Mountable, T-bar Mount - 1
$356.99
In Stock Availability
- All Locations: (3+)
- Mississuaga, ON (3+)
General Information
| Manufacturer | ZYXEL Communications Corp. |
| Manufacturer Part Number | WAX620D-6E |
| Brand Name | ZYXEL |
| Product Model | WAX620D-6E |
| Product Name | AXE5400 WiFi 6E Dual-Radio Access Point |
| Marketing Information | Featuring 6 spatial streams (4x4 in 6 GHz/5 GHz selectable, 2x2 in 2.4 GHz) with the maximum data rate of 5.4 Gbps, the Zyxel WAX620D-6E is the dual-radio access point with a BandFlex radio that can support either 5 GHz or 6 GHz by configuration, making it the most economical choice to fit into your existing 5 GHz coverage as well as futureproofing the use of 6 GHz. WAX620D-6E includes all the benefits of WiFi 6 capabilities like OFDMA, MU-MIMO, BSS Coloring, and brings them into the brand-new, interference-free 6 GHz that more than doubles the WiFi capacity to deliver multi-gigabit speed, and low-latency connections. The brand-new, interference-free 6GHz band presents a solution to quenching the thirst for today's network hungry for more bandwidth, making it a perfect choice for high-density WiFi and emerging technology connectivity. To reach the full potential of the new band, Zyxel 6E Boost, using the high-gain 4x4 streams in 6 GHz, increases the maximum gains in transmit beamforming and receive MIMO to extend its range and ensure the highest performance is delivered. The WAX620D-6E is ideal in high density environments such as transport hubs, exhibition halls, schools, offices, hotels, restaurants, or any other organizations that need to accommodate a large number of devices as it can offer the optimal premium service for everyone, every time they connect to WiFi. Benefits | WiFi 6E - bringing WiFi 6 into 6 GHz spectrum WiFi 6E is the WiFi 6 extended into 6 GHz spectrum. It includes all the WiFi 6 features, plus the following:
People without RF expertise may not realize that installing an AP optimized for ceiling-mount as wall-mount may cause the ceiling-mount radiation pattern to interfere with other devices up- or downstairs as well as to deliver signals with shorter-than-expected range for its clients. Designed with the innovative "Dual-optimized" antenna, the WAX620D-6E adapts to both wall- and ceiling-mount installations. Thus, users can switch between the two optimized antenna modes easily to fit either situation. To boost WiFi speeds for your network, the WAX620D-6E is definitely an excellent choice. |
| Packaged Quantity | 1 |
| Product Type | Wireless Access Point |
Technical Information
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Network Band | Tri Band |
| Frequency Band |
|
| Total Number of Antennas | 6 |
| Number of Internal Antennas | 6 |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 5.40 Gbit/s |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard |
|
Interfaces/Ports
| Ethernet Technology |
|

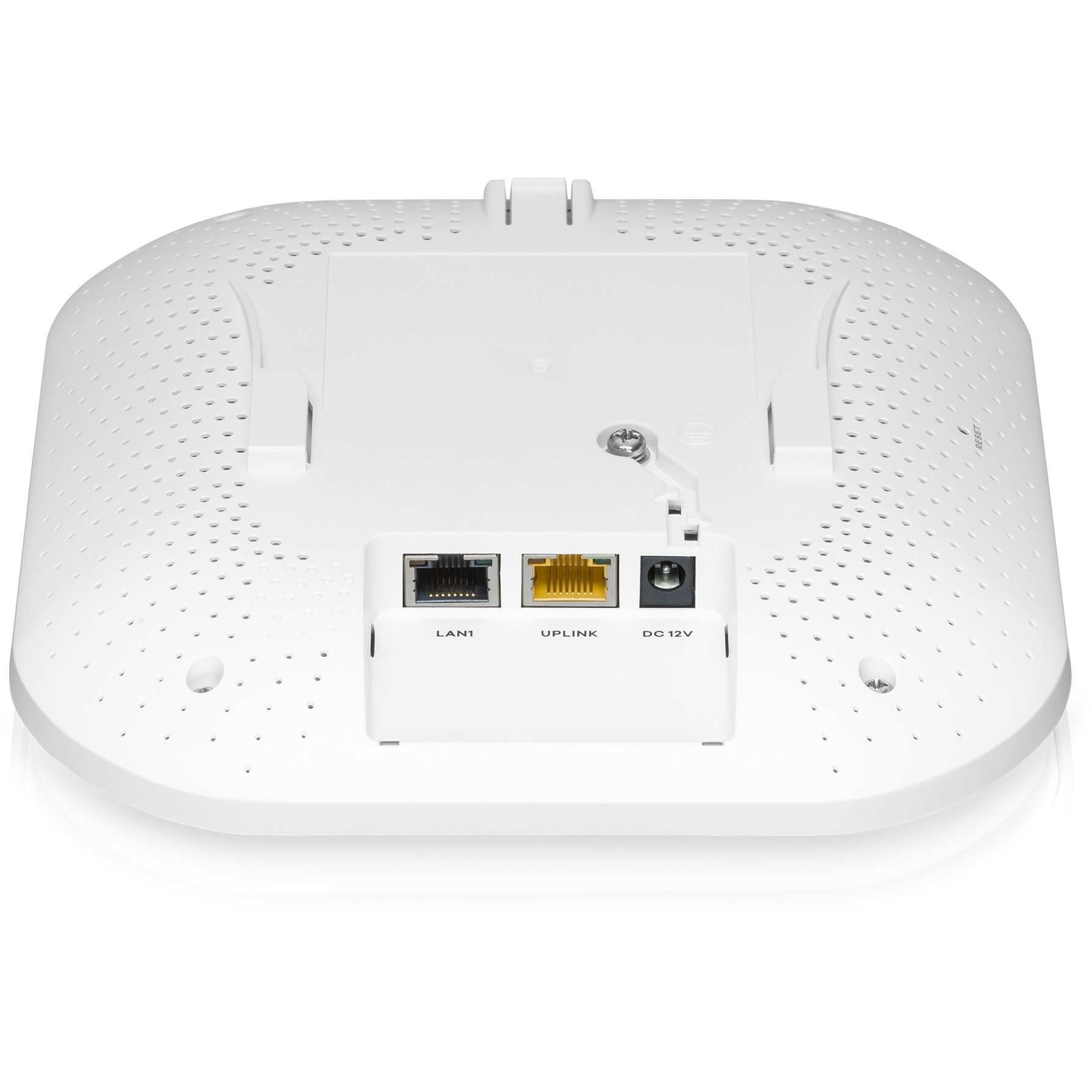

| Number of Network (RJ-45) Ports | 2 |
| PoE PD Port | Yes |
Network & Communication
| Wi-Fi Generation | Wi-Fi 6E |
| Communication Protocols |
|
| Wireless Performance | AXE5400 |
Physical Characteristics
| Form Factor |
|
| Antenna Form Factor | Internal |
| Height | 1.65" (42 mm) |
| Width | 7.09" (180 mm) |
| Depth | 7.09" (180 mm) |
| Weight (Approximate) | 1.43 lb (650 g) |
Miscellaneous
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 760559129750 |
