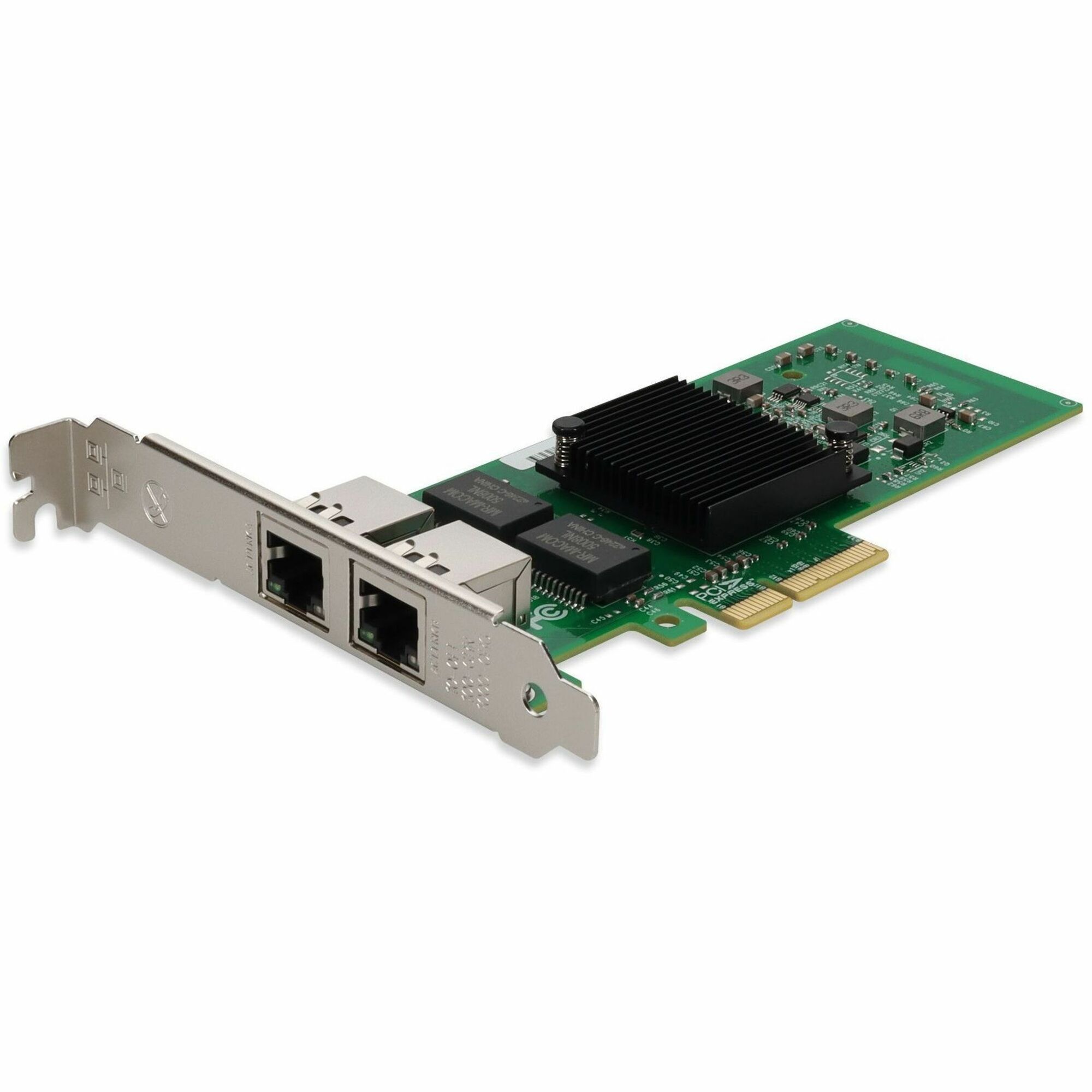

AddOn 10/100/1000Mbs Dual RJ-45 Port 100m PCIe 2.0 x4 Network Interface Card Intel 82576 Chipset based on Intel 82576 Chipset
PCI Express 2.0 x4, RJ-45 - 7.81 Gbit/s Data Transfer Rate - Intel 82576 - 2 Port(s) - 2 x Network (RJ-45) - Twisted Pair - 10/100/1000Base-T - Plug-in Card
$94.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-PCIE-2RJ45-V2 |
| Brand Name | AddOn |
| Product Name | Gigabit Ethernet Card |
| Marketing Information | This is a Gigabit Ethernet PCIe 2.0 x4 network interface card with dual RJ-45 ports that comply with IEEE 802.3 standards. It is based on an Intel 82576 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 10/100/1000Mbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The dual RJ-45 ports operate over copper patch cable, allowing for an operating distance of 100m. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time. |
| Packaged Quantity | 1 |
| Product Type | Gigabit Ethernet Card |
Technical Information
| Chipset Manufacturer | Intel |
| Chipset Model | 82576 |
| Features |
|
Interfaces/Ports
| Host Interface |
|
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
Media & Performance
| Media Type Supported | Twisted Pair |
| Maximum Operating Distance | 328.08 ft (100000 mm) |
| Maximum Data Transfer Rate | 7.81 Gbit/s |
Network & Communication
| Network Technology | 10/100/1000Base-T |
Physical Characteristics
| Form Factor | Plug-in Card |
| Height | 4.20" (106.68 mm) |
| Width | 0.80" (20.32 mm) |
| Depth | 3.70" (93.98 mm) |
| Weight (Approximate) | 6.40 oz (181.44 g) |
Miscellaneous
| Package Contents |
|
| Application/Usage | Network |
| Additional Information | |
| Device Supported | Server |
| Operating System Compatibility |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| TAA Compliant | No |
| Condition | No |
| UPC | 0195285644275 |
Warranty
| Limited Warranty | Lifetime |
