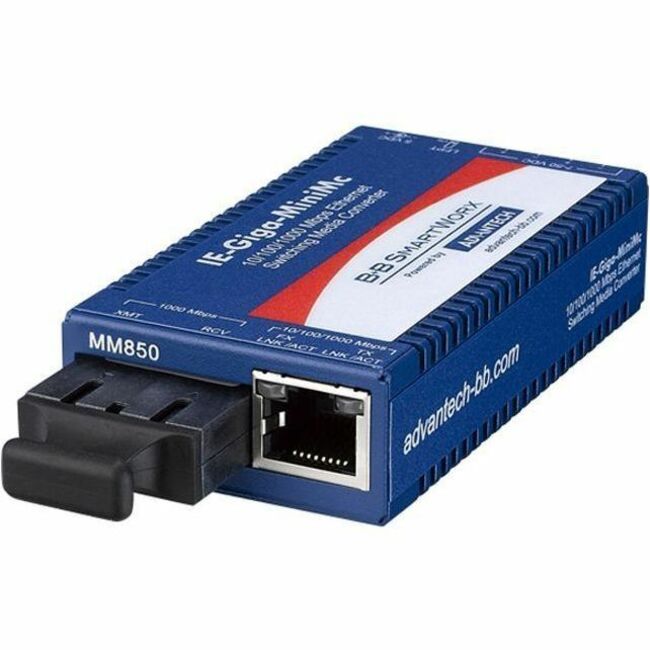

Advantech 10/100/1000Mbps Miniature Media Converter with LFPT
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | IMC-370I-MM-PS-B |
| Brand Name | Advantech |
| Product Line | IE-Giga-MiniMc |
| Product Series | IMC-370I |
| Product Name | 10/100/1000Mbps Miniature Media Converter with LFPT |
| Marketing Information | The IMC-370 series offers the most compact media converters. They can extend the 10/100/1000Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100/1000 auto negotiation on the copper port and 1000Mbps full-duplex on the fiber port, the IMC-370I series serves as a media and data rate converter that has NEMA TS2 rating, making it ideal for use in traffic applications. The IMC-370 series supports Link Fault Pass Through (LFPT) functionality which can be enabled/disabled by a DIP switch on the unit. This useful diagnostic feature assists the network administrator in indicating a fault condition on a given segment between the interfaces. The IMC-370 supports plug-n-play functionality, auto negotiation, and AutoCross operation. It can be powered by AC/DC power, dual USB cable, or via installation in the centrally- powered media converter chassis. |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media Type Supported |
|
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-TX |
| Power Source | AC/DC |
| Plug/Connector Type | Barrel |
| Frequency |
|
| Form Factor |
|
| Height | 0.83" (21.10 mm) |
| Width | 1.80" (45.70 mm) |
| Depth | 3.35" (85.10 mm) |
| Weight (Approximate) | 11.18 oz (317 g) |
| Package Contents |
|
| Application/Usage | Network |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0663069012829 |
