Future-Proof Your Business with 10G Enterprise Connectivity

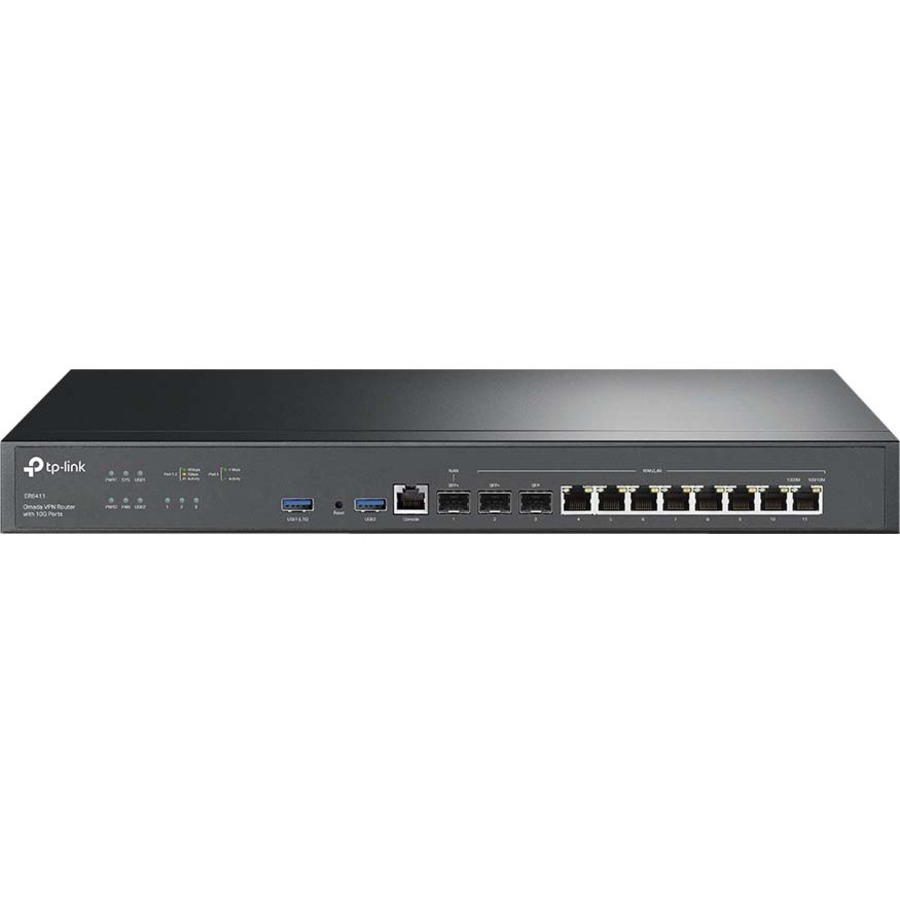

Omada VPN Router with 10G Ports

ER8411

Centralized Cloud Management

Seamless integration into the Omada SDN platform

Up to 10 WAN Ports

Multi-WAN Load Balance raises the utilization rate of multi-line broadband

High-Security VPN

Enterprise-standard SSL / IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN

Quad-Core 2.2 GHz CPU

Enterprise-level hardware design provides maximum performance

Two USB 3.0 Ports

Available 4G/3G Modem connection for LTE WAN backup

Enhanced Security

Powerful Firewall, DoS defense, IP/MAC/URL/ Keyword filtering

Two 10GE SFP+ Ports

High-bandwidth aggregation with 1× WAN and 1× WAN/LAN ports

High-Capacity Performance

Supports up to 2,300,000 concurrent sessions

Dual Redundant Power Supplies

Carrier-class reliability for enterprise networking

High-Capacity Performance with Quad-Core 2.2 GHz CPU

Manage your entire business network with the right amount of processing power. Dual redundant power supplies further ensure carrier-class reliability for enterprise networking.

Maximize the 10G Broadband with Omada Enterprise Gateway

Maximized 10G Broadband with the Omada Enterprise Gateway Build your lightning-fast network with Omada ER8411 - an enterprise VPN router with 10G ports. It surpasses the need for high-speed, reliable, and safe enterprise networks, ideal for large-scale deployments such as offices, schools, and hotels.

Easily Build a Whole 10G Enterprise Network | 10× WAN Ports & One USB WAN for Mobile Broadband

Up to 10× WAN SFP+, SFP, and RJ45 ports allow the router to support various internet access requirements. Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup.

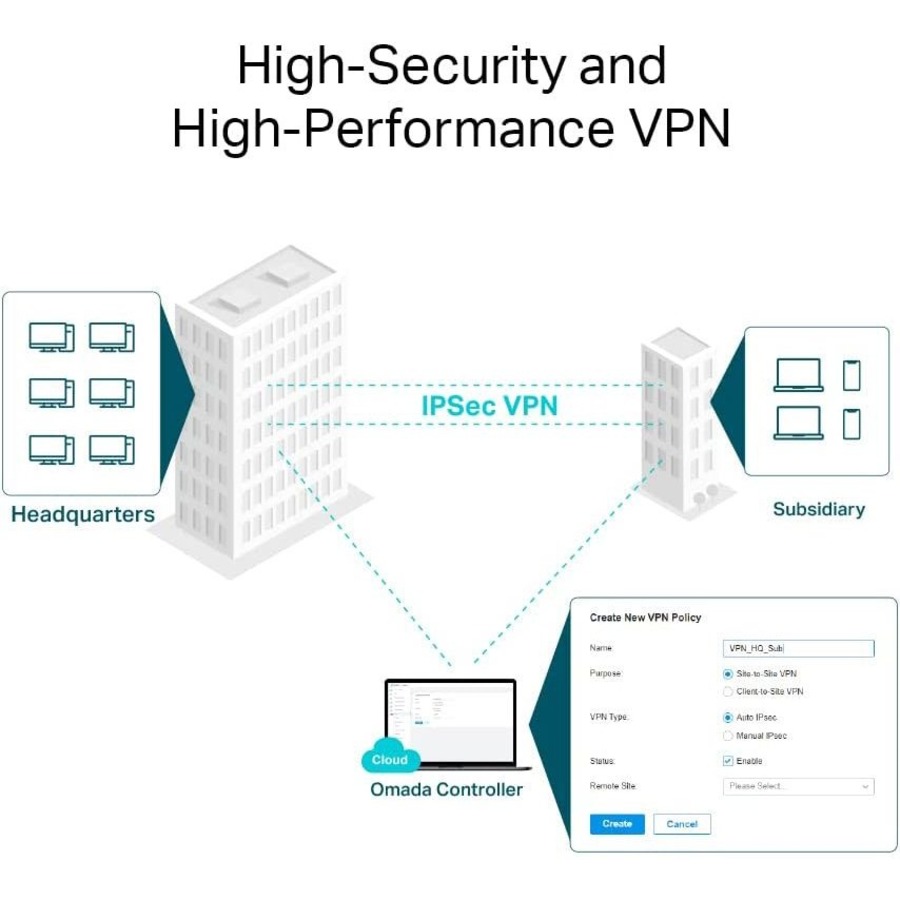

High-Security and High-Performance VPN

ER8411 supports pass-through traffic and multiple VPN protocols, including SSL, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features built-in VPN engine hardware, allowing support and management of hundreds of IPSec, PPTP, L2TP, SSL VPN, and OpenVPN Tunnels.

Robust Security Features | Powerful Firewall

Advanced firewall policies protect your network and data.

Convenient VLAN Support

Create virtual network segments for enhanced security and simplified network management.

• 10/100/1000Base-T
• 1000Base-X
• 10GBase-X

• Omada VPN Router with 10G Ports
• Power Cord
• Rack-Mount Kit
• Quick Installation Guide
