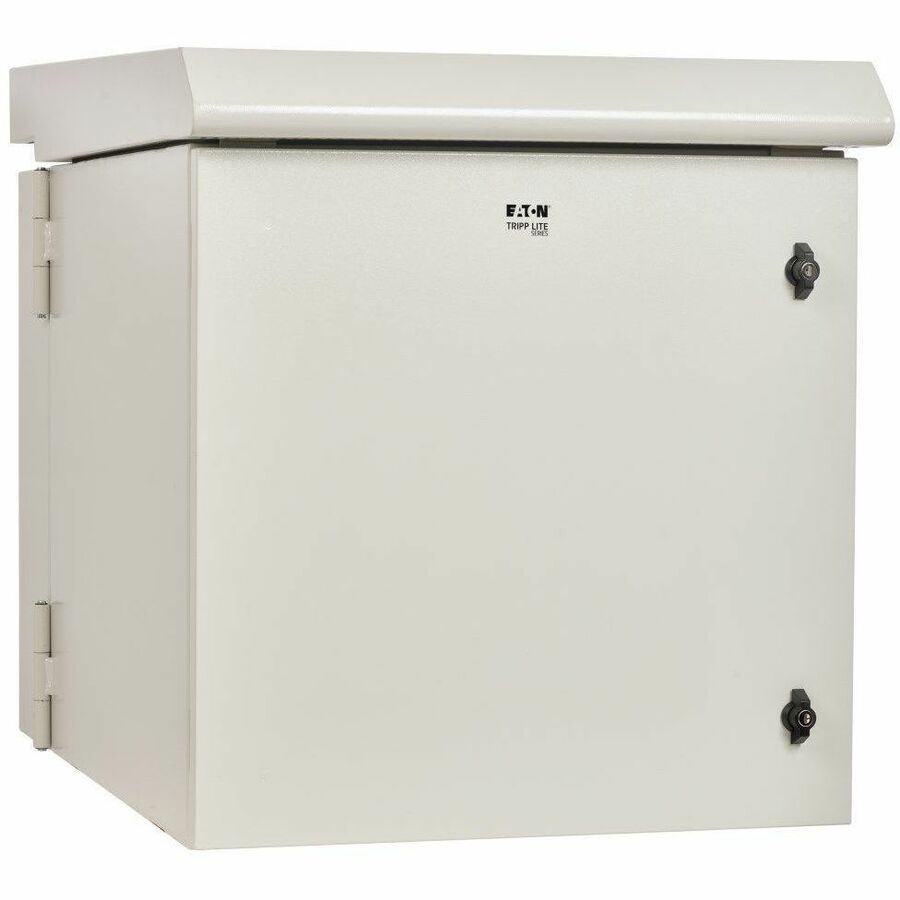

Tripp Lite series SmartRack SRN3RG12US Rack Mount Enclosure

For DVR, Switch, PDU, Patch Panel, UPS, Computer, Server - 12U Rack Height32.50" (825.50 mm) Rack Depth - Wall Mountable Enclosed Cabinet - Gray - Metal, Steel - 200 lb (90718.47 g) Maximum Weight Capacity - 200.62 lb (91000 g) Static/Stationary Weight Capacity

Part No. SRN3RG12US

by Eaton Corporation

$2232.99

Manufacturer Brochure

Specifications
Options & Accessories (4)

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	SRN3RG12US
Brand Name	Tripp Lite series
Product Line	SmartRack
Product Model	SRN3RG12US
Product Name	SmartRack SRN3RG12US Rack Mount Enclosure
Marketing Information	Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 28 in. Deep This SmartRack® industrial enclosure is designed to house 12U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from steel with a durable gray powder-coated finish, the SRN3RG12US has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications. NEMA 3R Enclosure Designed for Protection Against Harsh Elements The SRN3RG12US protects its contents against the ingress of water (including rain, sleet and snow), solid foreign objects (including falling dirt) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way. Locks and Hinged Back Allow Easy Authorized Access to Equipment and Cabling The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering and unauthorized access. The enclosure swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout. Easy Enclosure and Equipment Installation This 12U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 28 inches deep. Hardware for mounting equipment inside the enclosure is included. Built-in fans help keep mounted equipment cool and lasting longer.
Product Type	Rack Mount Enclosure

Technical Information

Rack Type	Enclosed Cabinet
Application/Usage	DVR Switch PDU Patch Panel UPS Computer Server
Features	Snow Resistant Moisture Resistant Lockable Door Damage Resistant Tamper Resistant Anti-theft Cable Management Adjustable Mounting Rails Debris Resistant Heavy Duty Rain Resistant Water Resistant

Power Description

Plug/Connector Type	NEMA 5-15P

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Gray
Product Color	Gray
Product Material	Metal Steel
Maximum Weight Capacity	200 lb (90718.47 g)
Static/Stationary Weight Capacity	200.62 lb (91000 g)
Height	28.49" (723.60 mm)
Width	25.17" (639.30 mm)
Depth	32.13" (816.10 mm)
Weight (Approximate)	146.43 lb (66420 g)
Rack Height	12U
Rack Depth	32.50" (825.50 mm)

Miscellaneous

Package Contents	SRN3RG12US Industrial Enclosure 48 x 10-32 Screws 48 x M6 Washers 4 x LDPE Sheet Metal Plugs 4 x M10 Foam Washers 2 x Keys Owner's manual
Assembly Required	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Condition	No
UPC	0037332277855
