VMware Edge 610 Application Acceleration Appliance

Part No. NB-VC-610-P-RTR-C

by VMware, Inc.

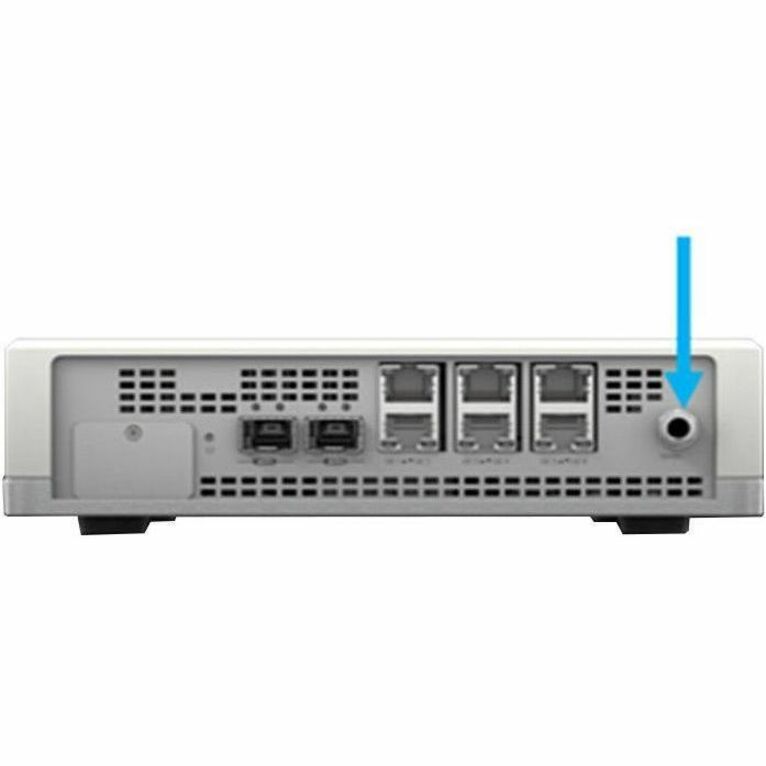

VMware Edge 610 Application Acceleration Appliance

6 RJ-45 - Gigabit Ethernet - 200 Mbit/s Throughput - 2 x Expansion Slots - GBIC - 2 x SFP Slots - 4 GB Standard Memory - Desktop, Wall Mountable, Rack-mountable

Part No. NB-VC-610-P-RTR-C

by VMware, Inc.

$1092.99
General Information
ManufacturerVMware, Inc.
Manufacturer Part NumberNBVC610PRTRC
Brand NameVMware
Product LineEdge
Product Series600
Product Model610
Product NameEdge 610 Application Acceleration Appliance
Marketing Information

VMware SD-WAN™, a fundamental component of VMware SASE™ (Secure Access Service Edge), offers converged cloud networking and security services to achieve flexibility, agility, and scale for enterprises of all sizes. VMware SD-WAN is built on software-defined networking principles to address end-to-end automation, application continuity, branch transformation, and security from the edge to the data center and the cloud.

VMware SD-WAN and VMware SASE are emerging as a platform for enterprises to bring networking and edge compute together for modern applications, while delivering security and ubiquity of access for the distributed workforce. Only VMware delivers SD-WAN and SASE as a cloud-native, edge services architecture for today's distributed enterprises embracing cloud, workforce, and application transformation.

As a cloud-delivered solution, VMware SD-WAN ensures resilient WAN connectivity and allows users to have flexible WAN choices, such as broadband, MPLS, and LTE. VMware SD-WAN offers high application performance and availability while lowering networking costs. It can detect the slightest degradations and dynamically remediate over one or multiple WAN links, resulting in a highly satisfied user experience. While most enterprises deploy SDWAN hardware appliances at their branch locations, a software-based remote client is also available as an extension of VMware SD-WAN. Moreover, Enhanced Firewall Service, based on VMware's proven NSX security technology, is built into VMware SD-WAN Edges, providing comprehensive security and eliminating the need for legacy firewalls at branch locations.

Product TypeApplication Acceleration Appliance
Technical Information
Load Balance Applications
  • Quality of Service (QoS)
  • NAT
  • RADIUS
  • DHCP
  • VLAN
  • NetFlow
  • SNMP
Interfaces/Ports
Network (RJ-45)Yes
Number of Network (RJ-45) Ports6
Media & Performance
Media Type SupportedTwisted Pair
Maximum Throughput200 Mbit/s
I/O Expansions
Total Number of Expansion Slots2
Expansion Slot TypeGBIC
Number of SFP Slots2
Network & Communication
Ethernet TechnologyGigabit Ethernet
Network Standard
  • 1000Base-X
  • 1000Base-TX
Memory
Standard Memory4 GB
Power Description
Frequency
  • 50 Hz
  • 60 Hz
Physical Characteristics
Form Factor
  • Desktop
  • Wall Mountable
  • Rack-mountable
Height2" (50.80 mm)
Width8.10" (205.74 mm)
Depth7.90" (200.66 mm)
Weight (Approximate)2.91 lb (1319.95 g)
Miscellaneous
Package Contents
  • Edge 610 Application Acceleration Appliance
  • Wall Mount Bracket
  • Power Adapter + Cable
  • Quick Start Guide
  • Additional Information

    Capacity:

  • Tunnel scale: 50
  • Flows per second: 2400
  • Maximum concurrent flows: 240000
  • Maximum number of routes: 16000
  • Maximum segments: 16
  • Maximum number of configured SSIDs: 8

    Compliant Standards:

  • IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.1ad, IEEE 802.11n, IEEE 802.11ac
  • VCCI, CISPR 22 Class A, CISPR 24, EN55024, EN50082-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC, RoHS, UL 60950-1, IEC 60950-1, KCC, GB 4943, EN 61000, SRRC, NCC, CNS 13438, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1
  • Power:AC 120/230 V (50/60 Hz)
  • Power Consumption Operational:25 Watt
  • Flash Memory:16 GB
  • Frequency Band:
  • Frequency Band:2.4 GHz, 5 GHz
  • Routing Protocol:OSPF, BGP, static IP routing
  • Antenna:Internal
  • Connectivity Technology:Wireless, wired
  • Service & Support:Extended service agreement - replacement - 1 year
  • Encryption Algorithm:SHA-1, PKI, 128-bit AES, 256-bit AES, IKEv2, SHA-2, TLS 1.2
  • Environmentally FriendlyYes
    Environmental ComplianceRestriction of Hazardous Substances (RoHS)
    ConditionNo
    Warranty
    Limited Warranty1 Year
