Matrox ConvertIP DSH

Part No. CIP-DSH2

by Matrox

Matrox ConvertIP DSH

1 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Power over Ethernet (PoE) - Rack-mountable

Part No. CIP-DSH2

by Matrox

$2978.99
General Information
ManufacturerMatrox
Manufacturer Part NumberCIP-DSH2
Brand NameMatrox
Product NameConvertIP DSH

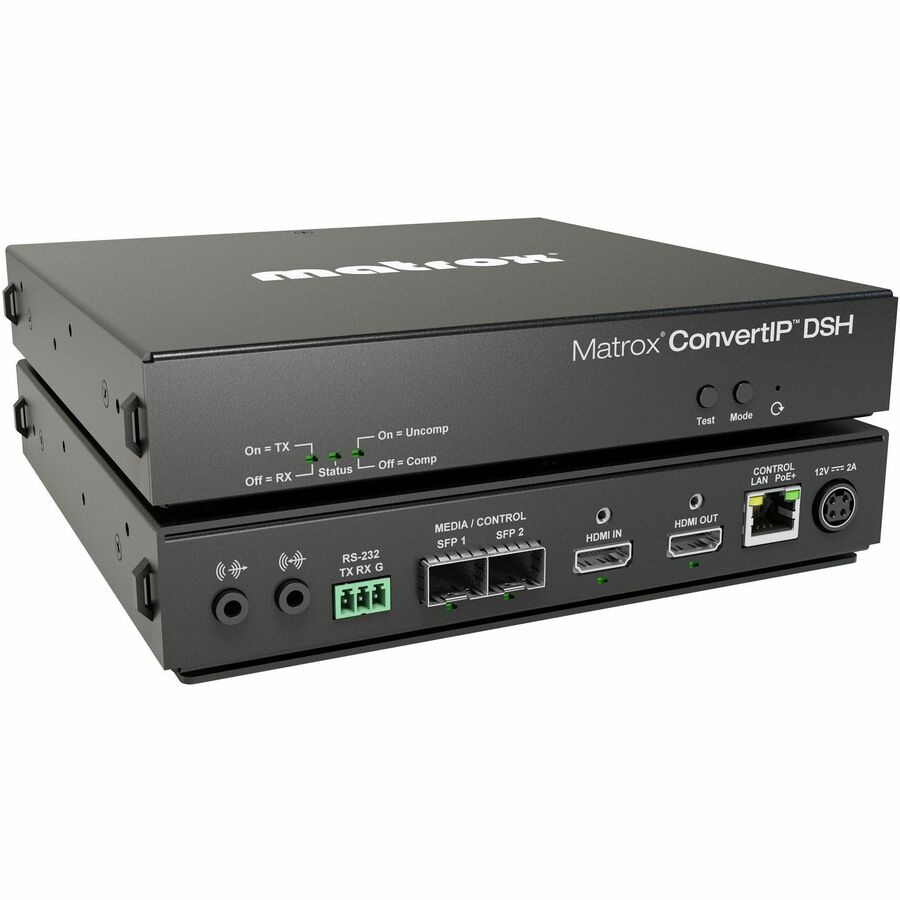

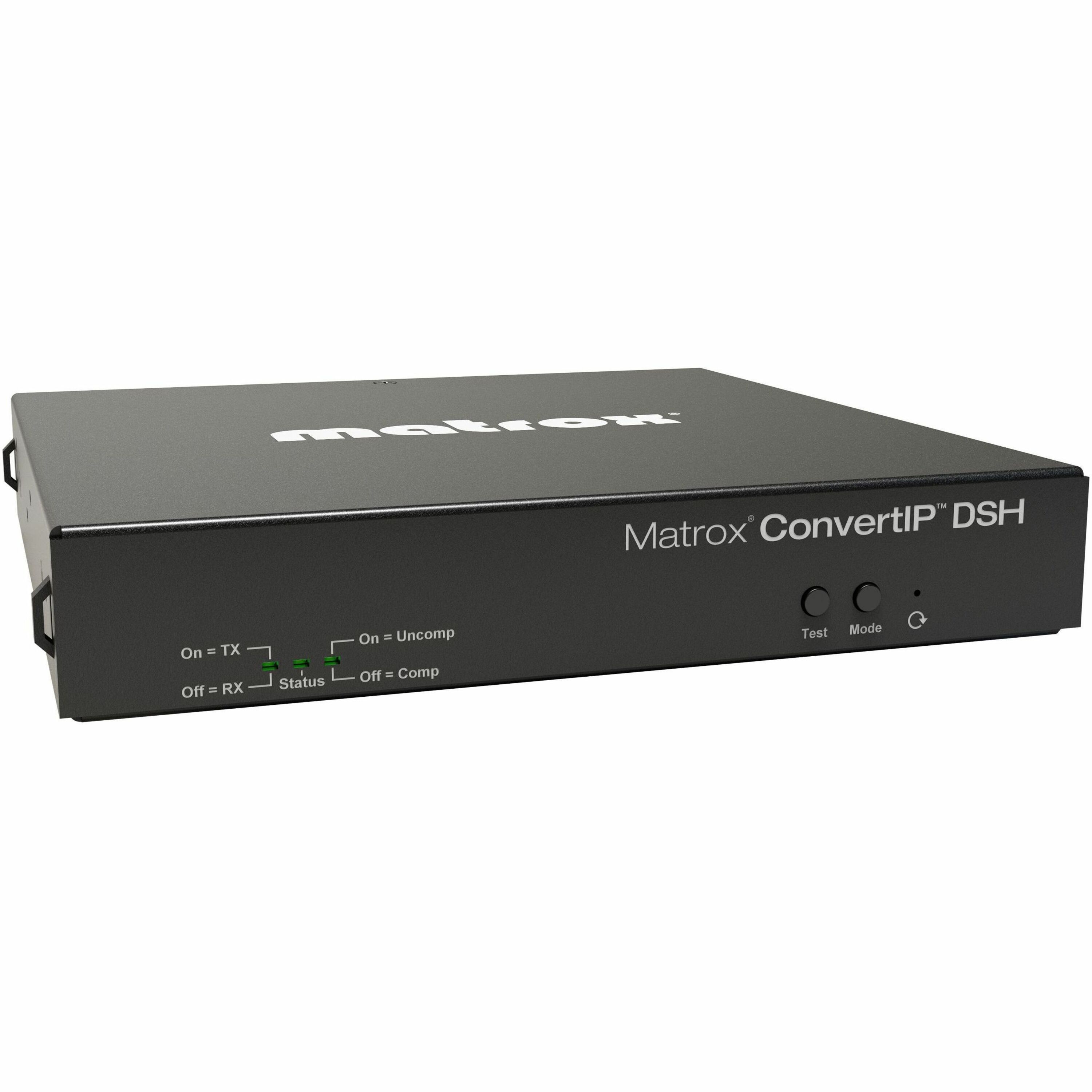

Marketing InformationMatrox ConvertIP DSH is a compact, standalone ST 2110 and IPMX transmitter/receiver device with a unique IP video gateway feature. Featuring HDMI I/O, one RJ45, and two SFP28 ports on a single device, ConvertIP DSH is designed for compressed or uncompressed workflows up to 25G and is optimal for an ultra-low latency experience. The device can deliver power over Ethernet through its RJ45 connection, or it can be powered through an optional power supply unit. Both can be used simultaneously to deliver power redundancy.
Product TypeVideo Extender Transmitter/Receiver
Technical Information
Connectivity TechnologyWired
Video
Graphics Modes4K
Maximum Video Resolution4096 x 2160
Interfaces/Ports
Network (RJ-45)Yes
HDMI InYes
HDMI OutYes
Number of Network (RJ-45) Ports1
Number of HDMI Inputs1
Number of HDMI Outputs1
Power Description
Power over Ethernet (PoE)Yes
Physical Characteristics
Transmitter Height1.42" (36 mm)
Transmitter Width7.52" (191 mm)
Transmitter Depth7.13" (181 mm)
Receiver Height1.42" (36 mm)
Receiver Width7.52" (191 mm)
Receiver Depth7.13" (181 mm)
Form FactorRack-mountable
Transmitter Weight (Approximate)1.66 lb (755 g)
Receiver Weight (Approximate)1.66 lb (755 g)
Miscellaneous
Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
ConditionNo
UPC790750260587
Warranty
Limited Warranty3 Year
