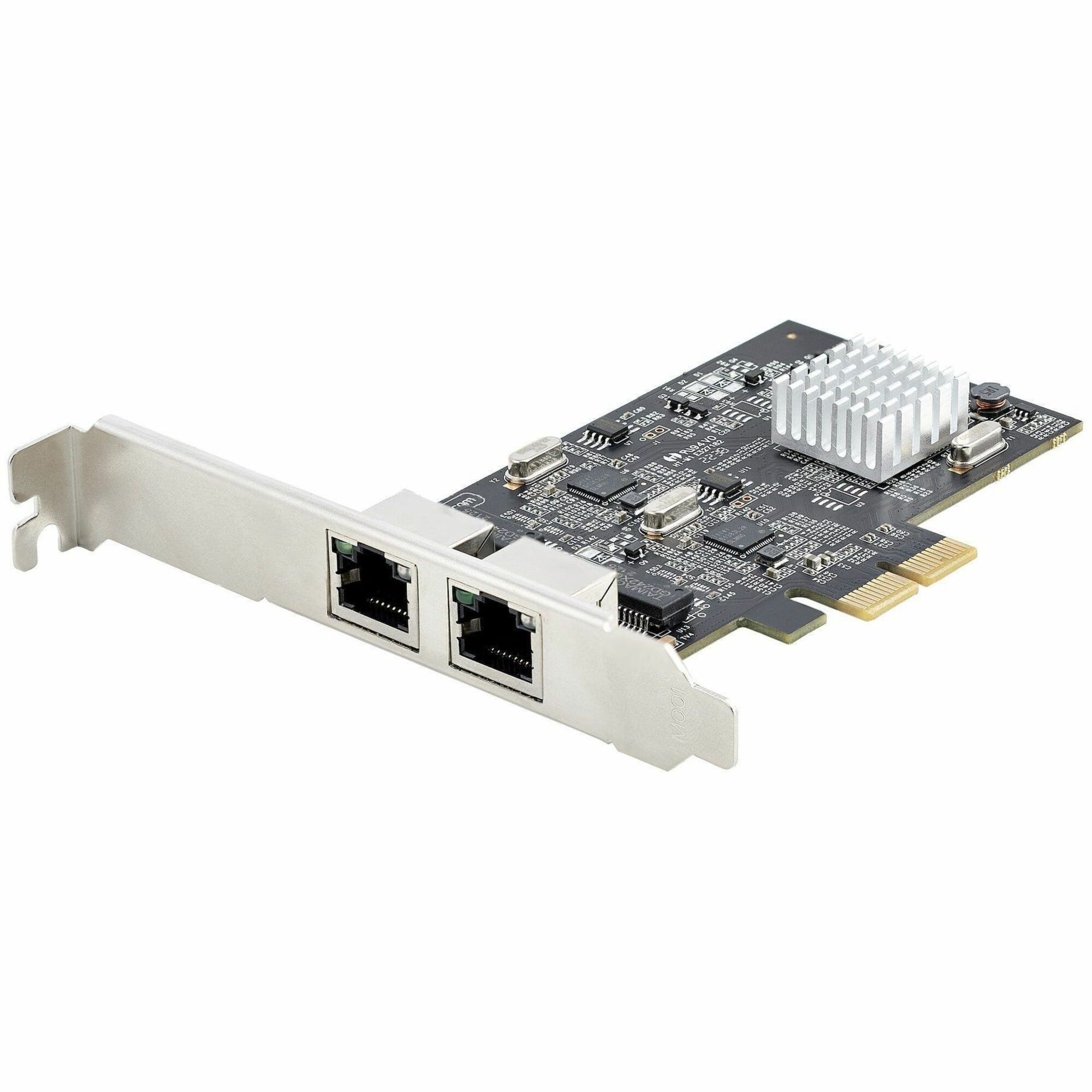

StarTech.com 2-Port 2.5G NBASE-T PCIe Network Card, Computer Network Card Interface, Intel® I225-V, Dual-Port Ethernet, Multi-Gigabit NIC

Part No. PR22GI-NETWORK-CARD

by StarTech.com

StarTech.com 2-Port 2.5G NBASE-T PCIe Network Card, Computer Network Card Interface, Intel® I225-V, Dual-Port Ethernet, Multi-Gigabit NIC

Dual-port 2.5Gbps interface NIC; PCIe network card w/ Intel® I225V - Supports NBASE-T, Multi-Gigabit speeds, Intel vPro®; PXE boot, 9K jumbo, WoL, PCI Express 2.0 - LAN card adapter incl. low-profile bracket - Ethernet card compatible with major OSes

Part No. PR22GI-NETWORK-CARD

by StarTech.com

$231.99
General Information
ManufacturerStarTech.com
Manufacturer Part NumberPR22GI-NETWORK-CARD
Brand NameStarTech.com
Product Name2-Port 2.5GBase-T Ethernet Network Adapter Card - PCIe 2.0 x2
Marketing Information

This dual-port 2.5GbE network interface card (NIC) features independent Intel I225-V chipsets for each port with Intel vPro technology, to enhance performance and data integrity across two 2.5G ethernet connections. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.

Increased Network Speed

The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment. To ensure reliable performance, two Intel I225-V chipsets are used, providing independent Ethernet controllers to each port.

Enhance Existing Hardware

The network interface card connects via an available x2 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard-profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows and Linux.

This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.

Packaged Quantity1
Product Type2.5Gigabit Ethernet Adapter
Technical Information
Chipset ManufacturerIntel
Chipset ModelI225-V
Interfaces/Ports
Host InterfacePCI Express 2.0 x2
Total Number of Ports2
Number of Network (RJ-45) Ports2
Media & Performance
Media Type SupportedTwisted Pair
Network & Communication
Network Technology2.5GBase-T
Physical Characteristics
Form FactorPlug-in Card
Bracket HeightLow Profile
Miscellaneous

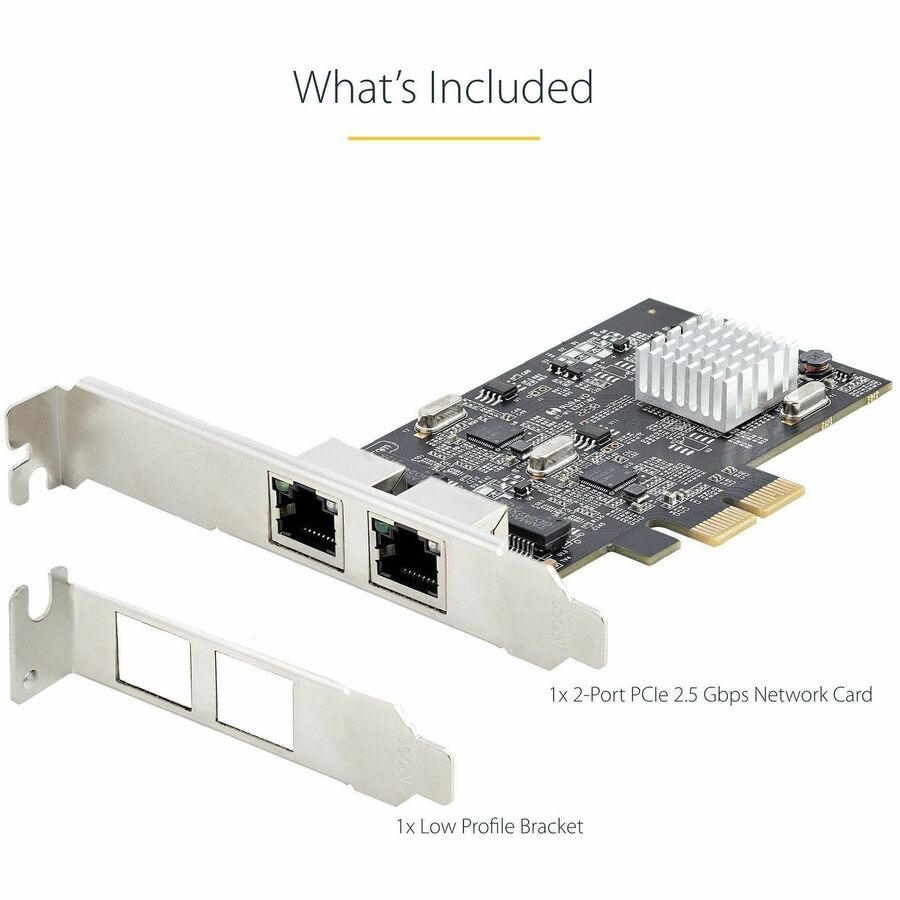

Package Contents
  • 2-Port 2.5GBase-T Ethernet Network Adapter Card - PCIe 2.0 x2
  • 1 x Low Profile Bracket
  • 1 x Quick-Start Guide
Application/UsageNetwork
Device SupportedServer
Environmentally FriendlyYes
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
ConditionNo
UPC0065030898140
Warranty
Limited Warranty2 Year
