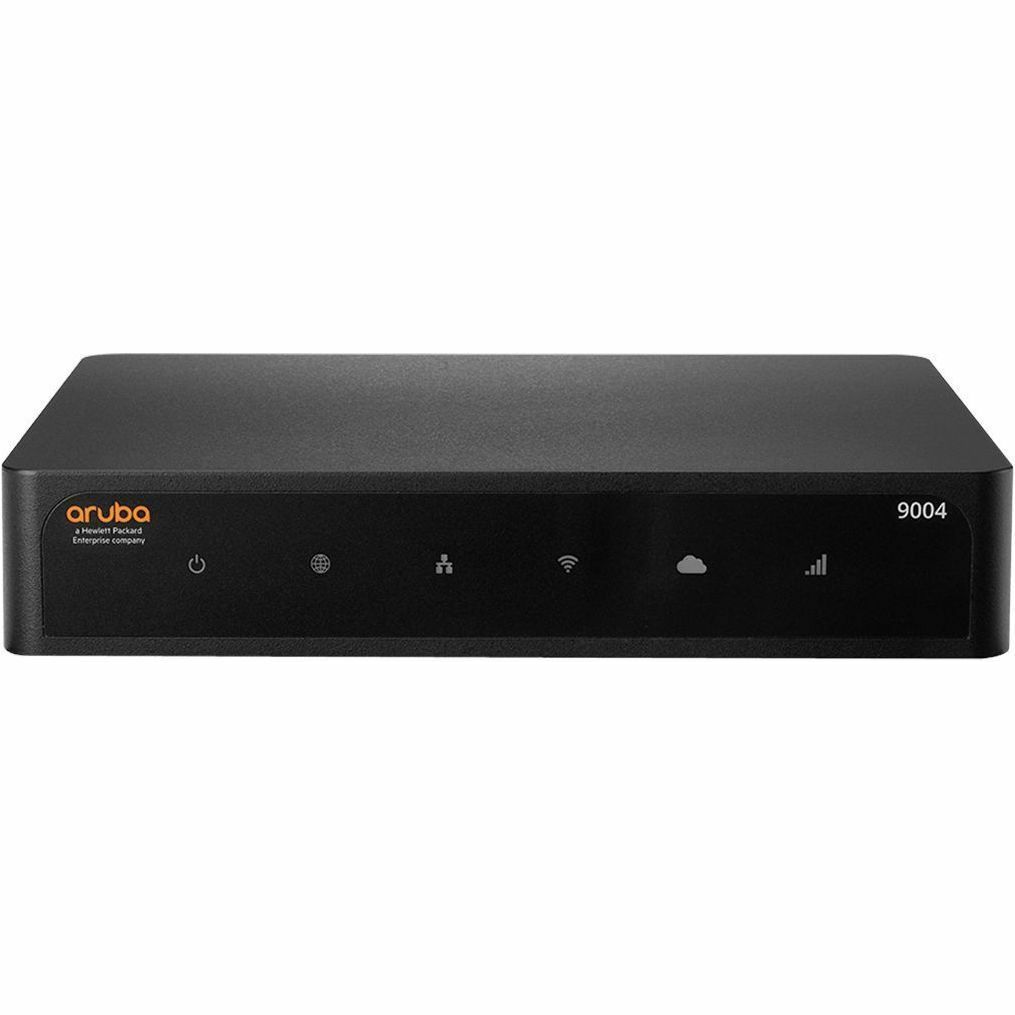

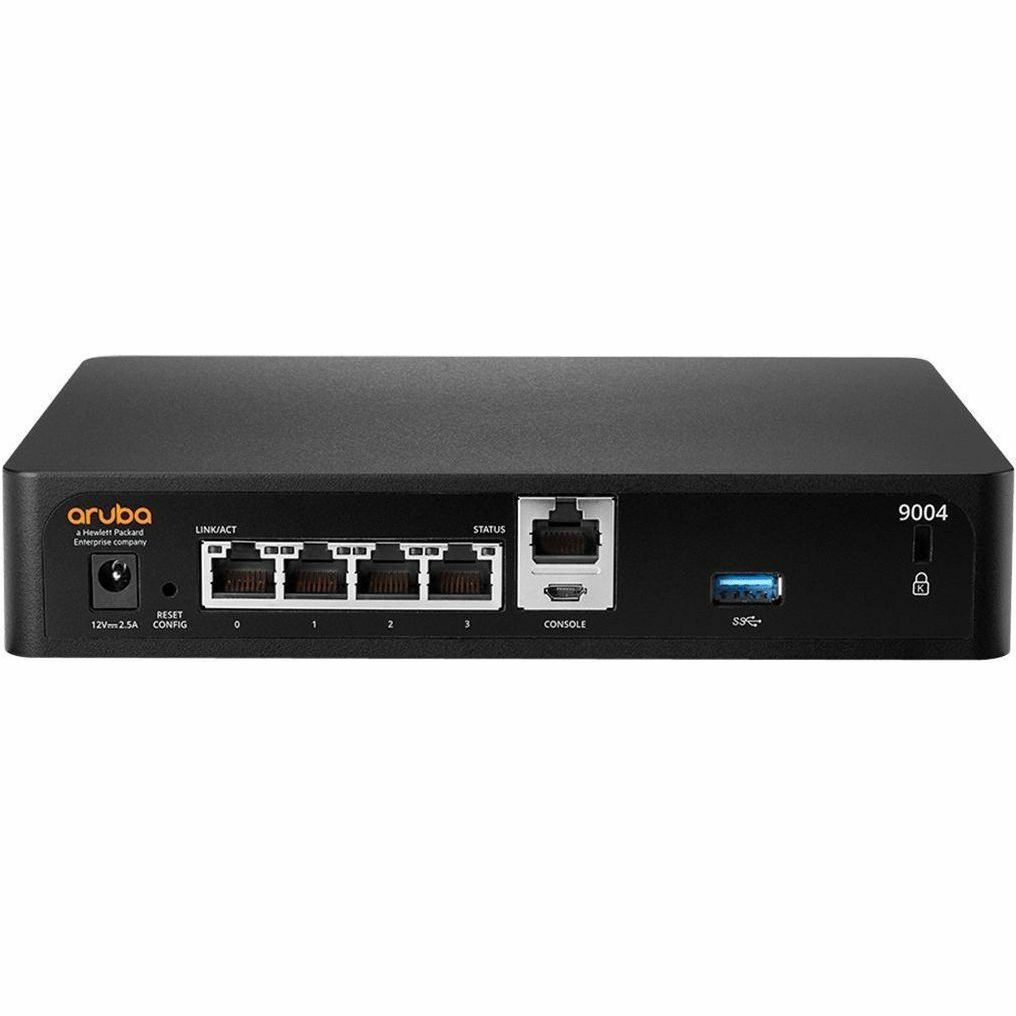

HPE 9004 (IL) 4-Port GbE RJ45 Gateway

Part No. R1B23A

by Hewlett Packard Enterprise

HPE 9004 (IL) 4-Port GbE RJ45 Gateway

4 Ports - Management Port - Gigabit Ethernet - 1U - Rack-mountable, Desktop - 1 Year

Part No. R1B23A

by Hewlett Packard Enterprise

$1968.99
General Information
ManufacturerHewlett Packard Enterprise
Manufacturer Part NumberR1B23A
Brand NameHPE
Product Series9004
Product Name9004 (IL) 4-Port GbE RJ45 Gateway
Marketing Information

Aruba 9004 Gateway | Improved network performance, visibility, and control

Aruba 9004 Series Gateways provide high-performance SD-WAN and security functionality in a compact and cost-effective form factor. Ideally suited for branch and small campus networks, the 9004 Series Gateways serve a key role within Aruba's SD-Branch solution, which unifies WLAN, LAN, SD-WAN and security for distributed enterprises.

The 9004 Series can be easily configured and managed using Aruba Central, a cloud-based network operations, assurance and security platform. Onsite deployment is accomplished with a simple mobile installer application.

Product TypeRouter
Interfaces/Ports
Total Number of Ports4
USB StandardUSB 3.0 Type A
Management PortYes
Network & Communication
Ethernet TechnologyGigabit Ethernet
Network Technology1000Base-T
Power Description
Power SourcePower Adapter
Physical Characteristics
Compatible Rack Unit1U
Form Factor
  • Rack-mountable
  • Desktop
Height1.50" (38.10 mm)
Width7.81" (198.37 mm)
Depth6.03" (153.16 mm)
Weight (Approximate)1.14 kg
Miscellaneous
Package Contents
  • 9004 (IL) 4-Port GbE RJ45 Gateway
  • 1 x JX990A Power Adapter Supply
  • Power Cord
Certifications & Standards
  • UL 60950-1 Second Edition
  • CAN/CSA-C22.2 No. 60950-1 Second Edition
  • EN 60950-1 Second Edition
  • EN 60950:2005
  • IEC 60950-1 Second Edition
  • EN/IEC 62368-1 2nd Edition
  • NOM (obtained by partners and distributors)
  • UL 60950-1 Second Edition
  • CAN/CSA-C22.2 No. 60950-1 Second Edition
  • EN 60950-1 Second Edition
  • EN 60950:2005
  • IEC 60950-1 Second Edition
  • EN/IEC 62368-1 2nd Edition
  • NOM (obtained by partners and distributors)
  • FCC/ISED
  • RED Directive 2014/53/EU
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
Warranty
Limited Warranty1 Year
Additional Warranty Information

1 year parts/ labor
