AXIS Ex Connection Rail 8-port PoE++

8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 100Base-TX, 1000Base-X - 2 Layer Supported - 4 SFP Slots - 480 W Power Consumption - Optical Fiber, Twisted Pair - Wall Mountable

Part No. 02747-001

by Axis Communications

$16931.99

Specifications

General Information

Manufacturer	Axis Communications
Manufacturer Part Number	02747001
Brand Name	AXIS
Product Line	Ex Connection Rail
Product Name	Ex Connection Rail 8-port PoE++

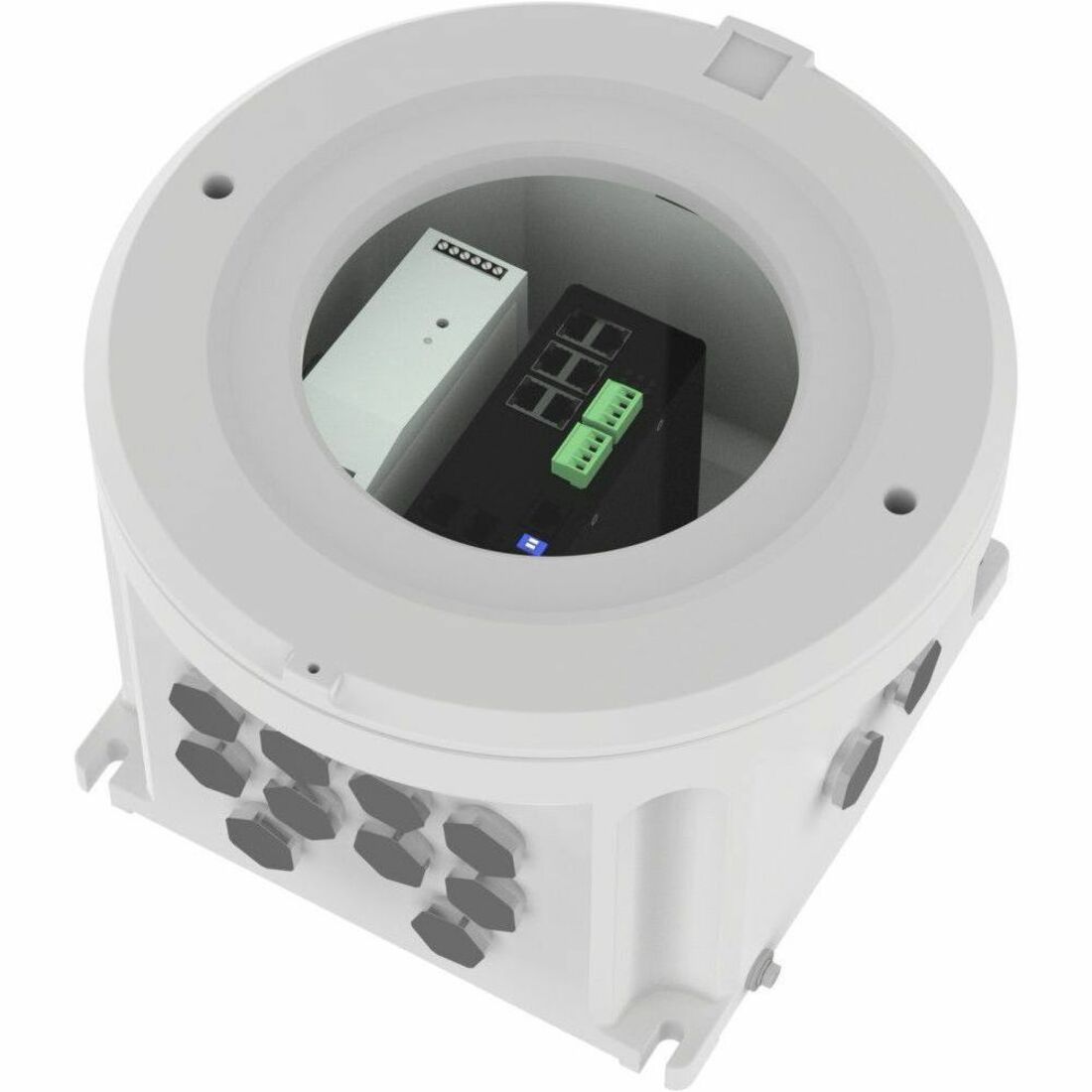

Marketing Information	Ex Connection Rail 8-Port PoE++ \| High-performance PoE++ switch for hazardous areas Ex Connection Rail 8-Port PoE++ is a high performance industrial PoE++ switch for hazardous areas. It is designed to provide power and network connectivity for up to eight explosion-protected PoE cameras. Furthermore, this managed switch is equipped with four additional RJ45 and four SFP data ports that allows for fiber connectivity over long distance installations. The enclose is equipped with a glass front for easy status verification without opening in a potentially combustible atmosphere. The Ex d-rated enclosure is made from seawater-resistant copper-free aluminum and is ready for wall mounting. Eight 60 W PoE ports ATEX, IECEx Ex d IIC/IIIC Four SFP ports Resistant to corrosion Visual status verification
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	8
Network (RJ-45)	Yes
Port/Expansion Slot Details	8 x Gigabit Ethernet PoE++ 4 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 100Base-TX 1000Base-X

I/O Expansions

Total Number of Expansion Slots	4.0
Expansion Slot Type	SFP
Number of SFP Slots	4

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3at IEEE 802.3bt

Management & Protocols

Manageable	Yes

Power Description

Input Voltage	120 V AC 230 V AC
Frequency	50 Hz 60 Hz
Power Source	Power Supply AC
Power Consumption	480 W

Physical Characteristics

Color Family	White
Product Color	White
Product Material	Aluminum
Form Factor	Wall Mountable
Height	11.06" (281 mm)
Weight (Approximate)	68.34 lb (31000 g)

Miscellaneous

Application/Usage	Network
Compatibility	AXIS XFQ1656 Explosion-Protected Camera AXIS ExCam XF P1377 Explosion-Protected Camera AXIS ExCam XF M3016 Explosion-Protected Network Camera AXIS ExCam XF P3807 Explosion-Protected Panoramic Camera AXIS ExCam XPT Q6075 Explosion-Protected PTZ Camera AXIS ExCam XF Q1785 Explosion-Protected Network Camera
Condition	No
UPC	7331021083035
