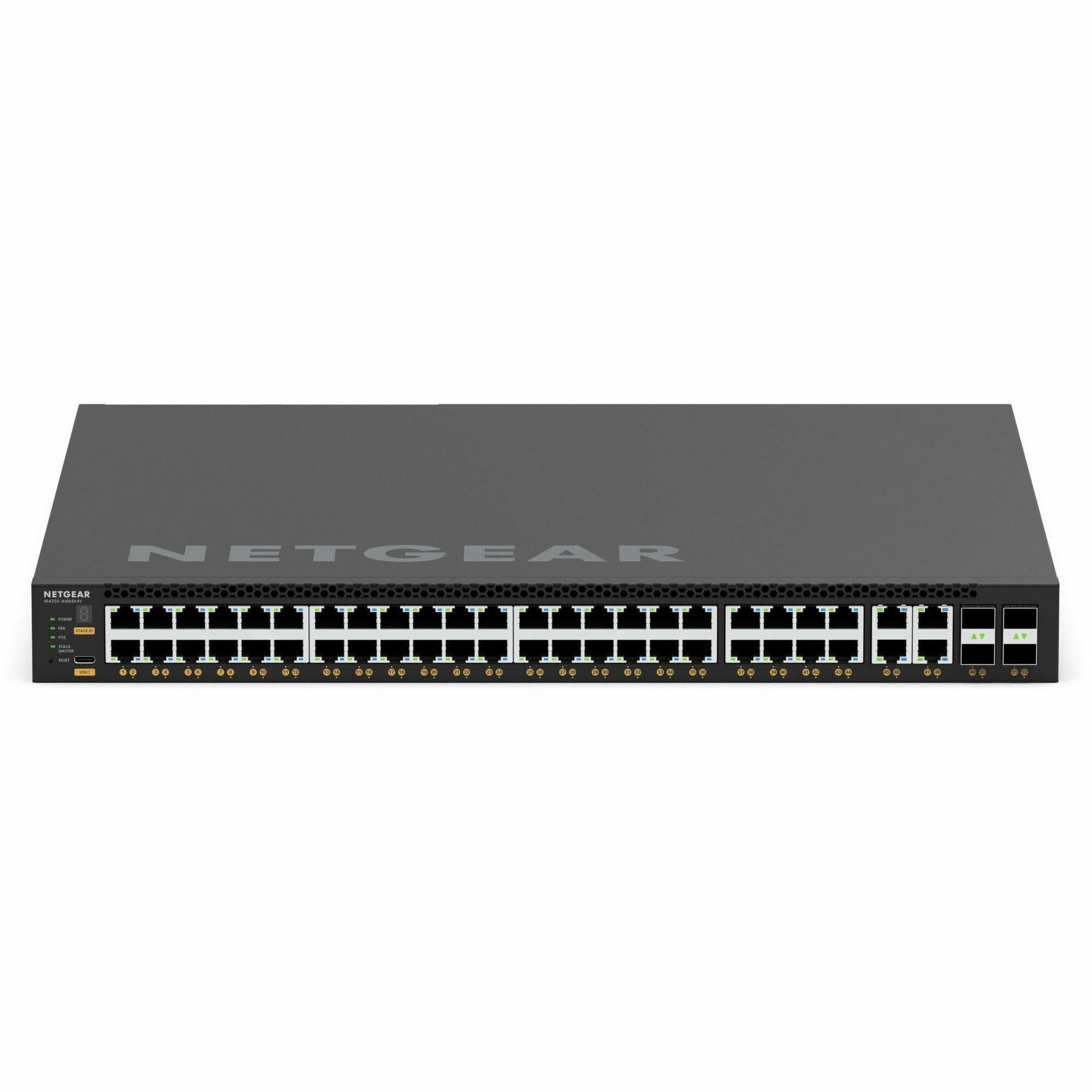

Netgear AV Line M4350-44M4X4V Ethernet Switch

48 Ports - Manageable - 25 Gigabit Ethernet - 10GBase-X, 25GBase-X, 1000Base-X, 10GBase-T, 2.5GBase-T, 5GBase-T, 10/100/1000Base-T - 3 Layer Supported - Modular - 550 W Power Consumption - 194 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U - Rack-mountable, Table Top - Lifetime Limited Warranty

Part No. MSM4352-TAANES

by Netgear, Inc

$7101.99

General Information

Manufacturer	Netgear, Inc
Manufacturer Part Number	MSM4352TAANES
Brand Name	Netgear
Product Line	AV Line
Product Series	M4350
Product Model	M4350-44M4X4V
Product Name	AV Line M4350-44M4X4V Ethernet Switch
Marketing Information	Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols. NETGEAR listens to and supports the Pro AV community IGMP Plus™ means AV-over-IP multicasting will work out of the box and not flood your network Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches The Engage™ Controller manages all M4250, M4300, and M4350 switches for your AV installations NETGEAR ProAVDesign team tohelp with system design andimplementation toensure theproject will work AVB, Dante, Q-SYS, AES67, NVX, AMX, Q-SYS, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others! SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI Enterprise-class hardware From 1G to 2.5G, to 10G, to 25G, to 100G always within 40cm (15.7in) depth Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat) Other IT use cases Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack Industry standard management Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI) SNMP, sFlow and RSPAN - the entire feature set is available without license Industry leading warranty NETGEAR M4350 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	48
Uplink Port	Yes
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	44 x 2.5 Gigabit Ethernet PoE++ 4 x 10 Gigabit Ethernet PoE++ 4 x 25 Gigabit Ethernet Expansion Slots

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Ethernet Technology	25 Gigabit Ethernet
Network Technology	10GBase-X 25GBase-X 1000Base-X 10GBase-T 2.5GBase-T 5GBase-T 10/100/1000Base-T

I/O Expansions

Total Number of Expansion Slots	4.0
Expansion Slot Type	SFP28

Network & Communication

Layer Supported	3
Networking Standards	IEEE 802.3bt IEEE 802.3af IEEE 802.3at IEEE 802.1as IEEE 802.1Qav IEEE 802.1Qat IEEE 802.1ak IEEE 802.3az IEEE 802.3ad IEEE 802.1AX IEEE 802.1s IEEE 802.1w IEEE 802.1p IEEE 802.1Q IEEE 802.1BA

Management & Protocols

Manageable	Yes

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	194 W
Redundant Power Supply Supported	Yes
Number of Power Supplies Supported	2
Number of Power Supplies Installed	1
Power Consumption	550 W
Plug/Connector Type	C14

Physical Characteristics

Compatible Rack Unit	1U
Form Factor	Rack-mountable Table Top
Height	17.01" (432 mm)
Width	14.44 ft (4400 mm)
Depth	15.75" (400 mm)
Weight (Approximate)	7.34 kg

Miscellaneous

Package Contents	AV Line M4350-44M4X4V Ethernet Switch Power Cord(s) USB Type-C To USB-A 2.0 Console Cable Rubber Caps For The SFP+/SFP28/QSP28 Sockets Rubber Footpads For Tabletop installation Installation Guide Rackmounting Standard Brackets Longer Brackets For Recessed Mounting
Application/Usage	Enterprise Business Network IP Phone VoIP Phone
Environmentally Friendly	Yes
Energy Efficiency Compliance	Energy-related Products Directive (ErP) Energy-using Products Directive (EuP)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Condition	No
UPC	606449168792
