CyberPower CR12U61003 Wall Mount Enclosure

Part No. CR12U61003

by CyberPower Systems, Inc

CyberPower CR12U61003 Wall Mount Enclosure

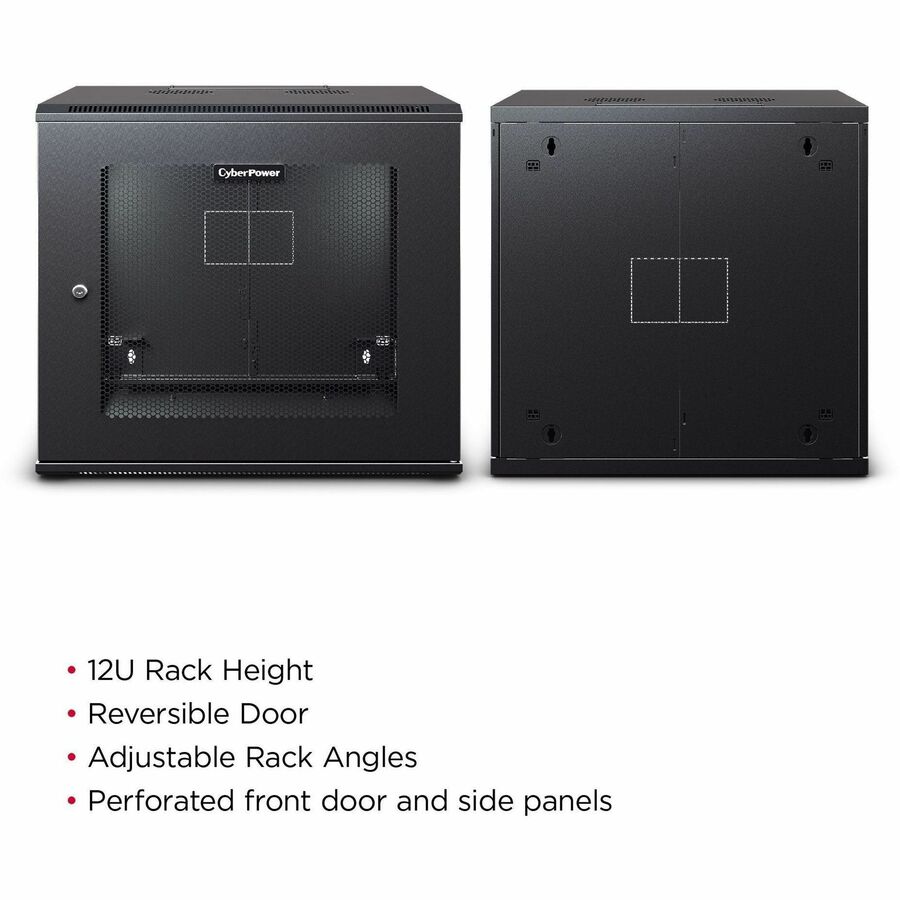

12U 19" Wall Mount Enclosure, 600mm wide, 600mm deep, hex perforated metal door, side panels, locking doors/side panels, black, 132lbs (60kg) loading capacity, 5 year warranty

Part No. CR12U61003

by CyberPower Systems, Inc

$804.99
General Information
ManufacturerCyberPower Systems, Inc
Manufacturer Part NumberCR12U61003
Brand NameCyberPower
Product NameCR12U61003 Wall Mount Enclosure

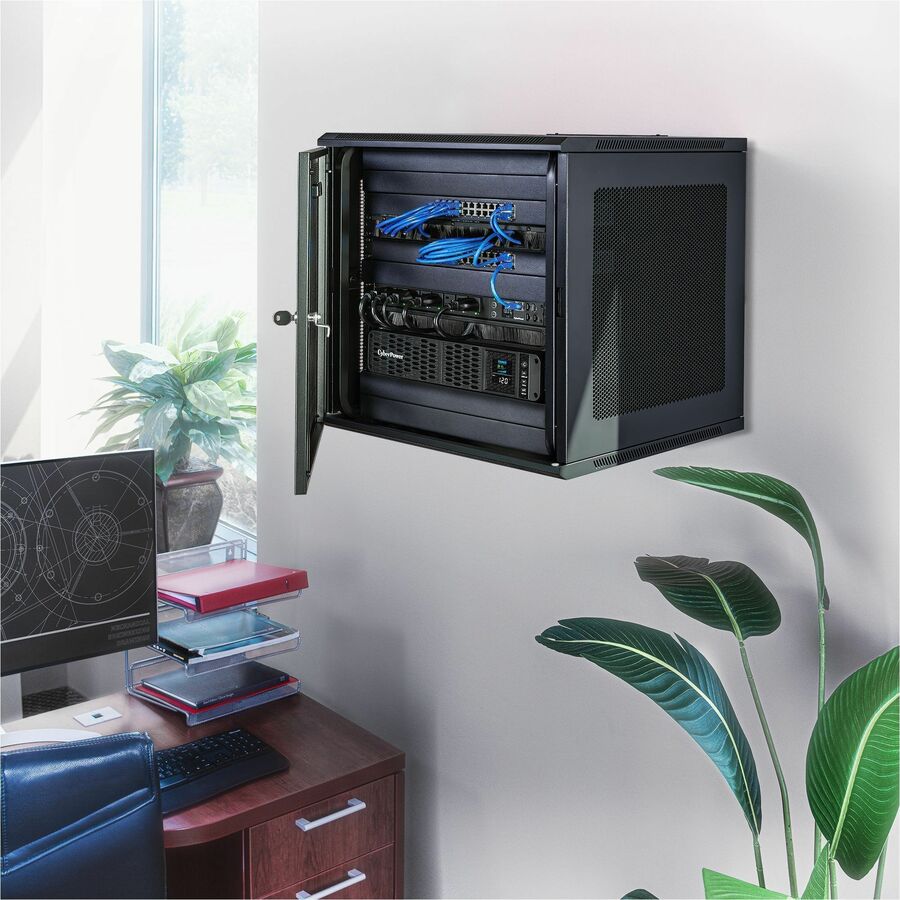

Marketing InformationThe CR12U61003 is designed for use in network closets, classrooms, and other locations. It houses network switches and patch panels up to 20.3 inches deep. This rack features convenient top panel cable access openings, perforated doors and side panels for efficient airflow, adjustable rack angles, and square and threaded mounting holes. The CR12U61003 ships fully assembled for quick deployment and can be customized with compatible accessories. It is covered by a 5-year limited warranty.
Product TypeRack Cabinet
Technical Information
Application/Usage
  • Switch
  • Patch Panel
Features
  • Perforated Door
  • Lockable Door
  • Lockable Side Panel
  • Removable Door
  • Removable Side Panel
  • Reversible Front Door
  • Vented
  • Reversible Door
Physical Characteristics
Form FactorWall Mountable
Color FamilyBlack
Product ColorBlack
Product MaterialMetal
Static/Stationary Weight Capacity132.28 lb (60000 g)
Height23.10" (586.74 mm)
Width23.60" (599.44 mm)
Depth23.60" (599.44 mm)
Weight (Approximate)39.71 lb (18010 g)
Rack Height12U
Miscellaneous
Package Contents
  • CR12U61003 Wall Mount Enclosure
  • Mounting Hardware
Additional Information
  • Physical Dimensions - (WxHxD) (cm) : 59.94 x 58.67 x 59.94 (cm)
  • Physical Dimensions - (WxHxD) (in) : 23.6 x 23.1 x 23.6 (in)
  • Physical Dimensions - (WxHxD) (mm) : 599 x 587 x 599 (mm)
  • Weight (kg) : 18.01
  • Weight (lb) : 39.7
  • Shipping Dimensions - (WxHxD) (cm) : 66.68 x 71.12 x 66.68 (cm)
  • Shipping - Dimensions (WxHxD, in) : 26.25 x 28 x 26.25 (in)
  • Shipping - Dimensions (WxHxD, mm) : 666.75 x 711.2 x 666.75 (mm)
  • Shipping - Weight (kg) : 21.59
  • Shipping - Weight (lb) : 47.6
  • USB Charge Port : No
  • Cable Access Opening Dimensions : 9.8 x 2.2 in (249 x 56 m)
  • Color : Black

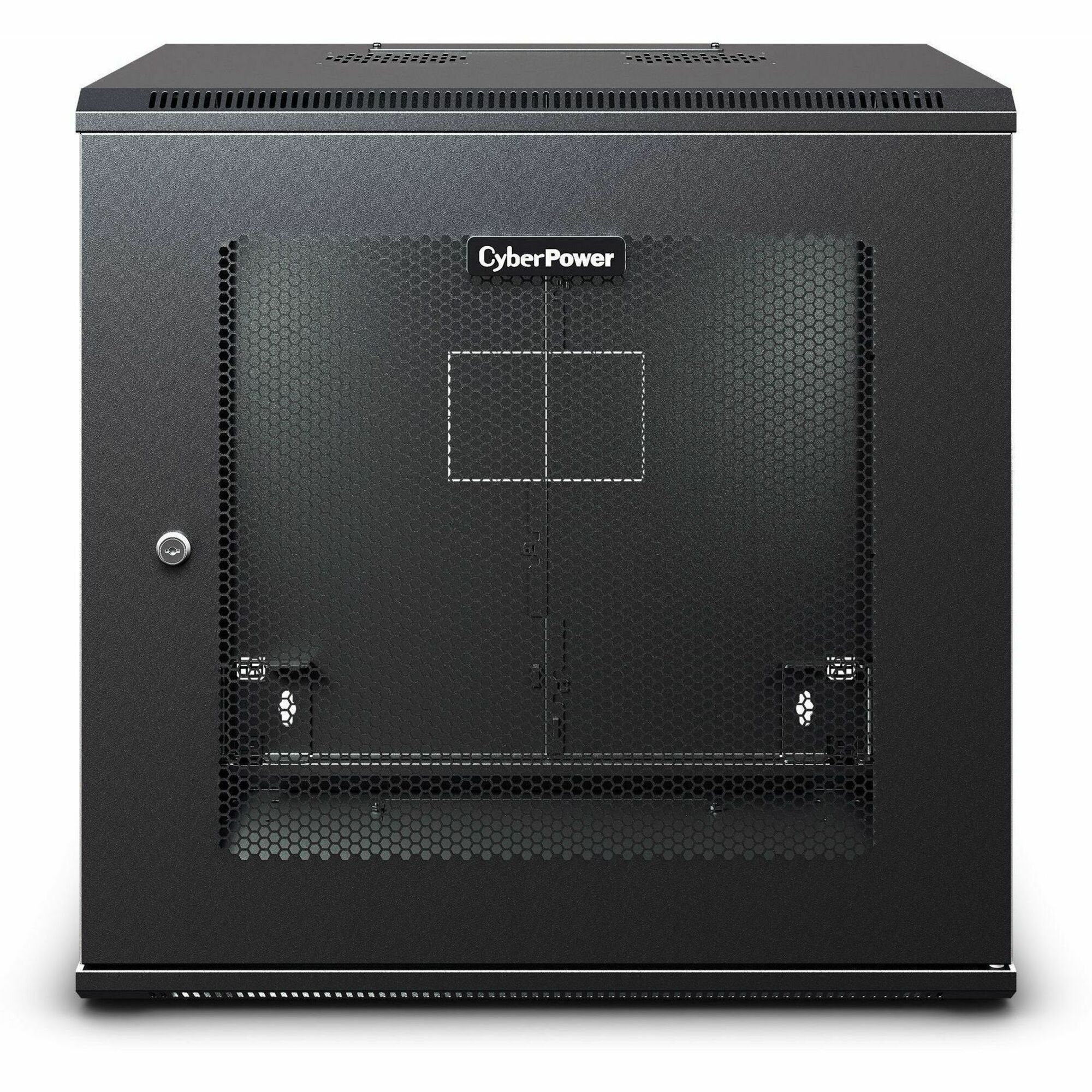

  • Door Type : Hex Perforated Metal Door
  • Factory Default Mounting Depth : 13.2 ft (335.3 mm)
  • Material of Construction : Metal
  • Max. Mounting Depth (in) : 20.3
  • Max. Mounting Depth (mm) : 516
  • Min. Mounting Depth (in) : 1.9
  • Min. Mounting Depth (mm) : 47
  • Rack Angle Mounting Hole Type : Square Mounting Holes
  • Rack Height : 12U
  • Wall Mount Rear Frame : Swing Out
  • Weight Capacity - stationary load (kg) : 60
  • Weight Capacity - stationary load (lbs) : 132.3
  • Cable Access : Top and Bottom Openings
  • Lockable Doors and Side Panels : Yes, keyed alike
  • Numbered Rack Units : Yes
  • PE Grounding Point : Yes
  • Removable Doors and Side Panels : Yes
  • Reversible Front Door : Yes
  • Ventilation : Perforated Doors
  • Protection Class : IP20
  • Environmental : RoHS Compliant
  • Safety : EIA-310E, IEC-60297-1, 2, ASTM-D610, ASTM-B117
  • Product Warranty : 5 Year Limited Warranty
  • Certifications & StandardsSafety: EIA-310E, IEC-60297-1, 2, ASTM-D610, ASTM-B117
    Assembly RequiredNo
    Environmentally FriendlyYes
    Environmental ComplianceRestriction of Hazardous Substances (RoHS)
    ConditionNo
    UPC0649532936137
    Warranty
    Limited Warranty5 Year
