CyberPower CR6U61003 Wall Mount Enclosure

Part No. CR6U61003

by CyberPower Systems, Inc

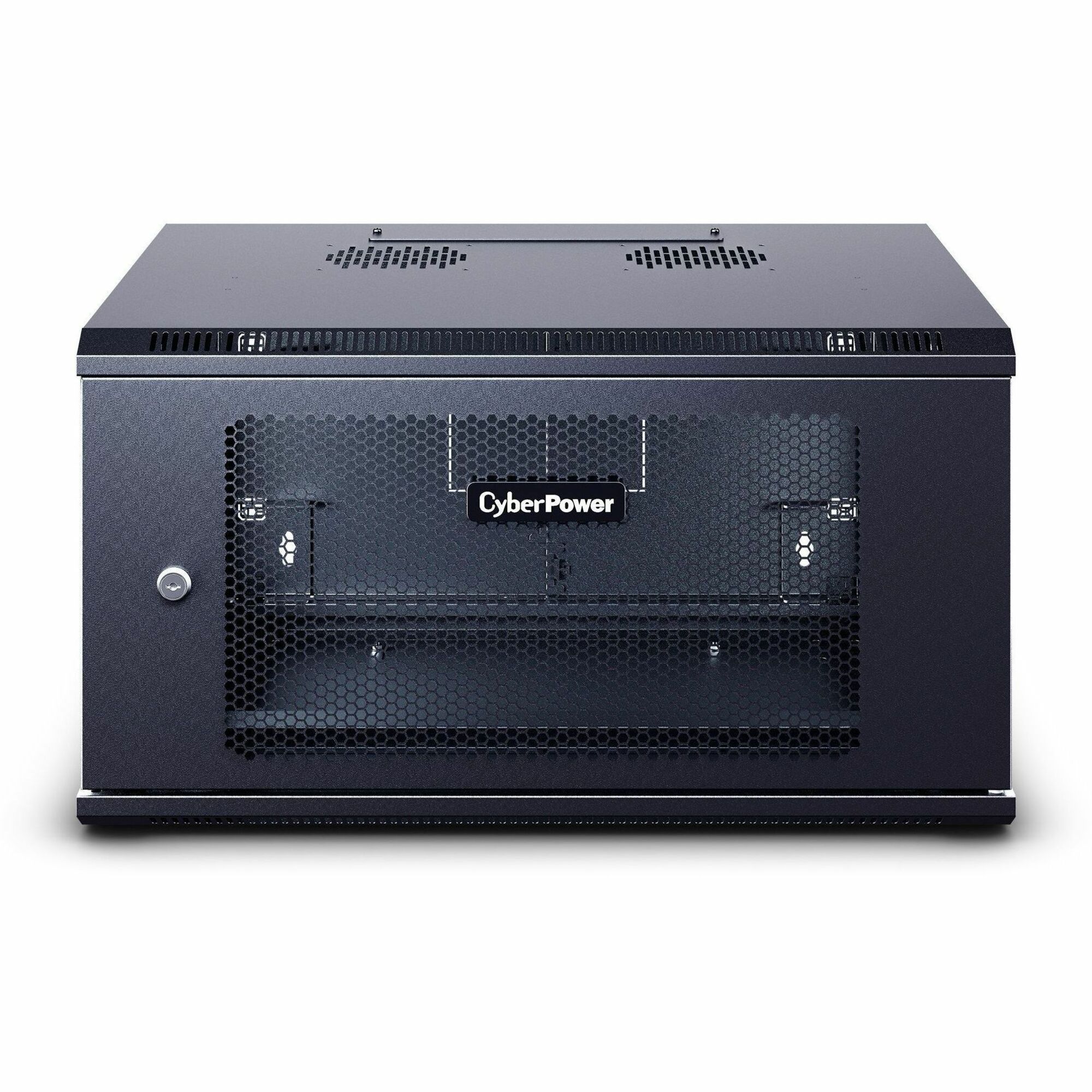

CyberPower CR6U61003 Wall Mount Enclosure

6U 19" Wall Mount Enclosure, 600mm wide, 600mm deep, hex perforated metal door, side panels, locking doors/panels, black, 132lbs (60kg) loading capacity, 5 year warranty

Part No. CR6U61003

by CyberPower Systems, Inc

$565.99
General Information
ManufacturerCyberPower Systems, Inc
Manufacturer Part NumberCR6U61003
Brand NameCyberPower
Product NameCR6U61003 Wall Mount Enclosure
Marketing InformationThe CR6U61003 is designed for use in network closets, classrooms, and other locations. This wall mount rack houses network switches and patch panels up to 20.3" deep. It includes convenient top panel cable access openings, perforated front door and side panels for efficient airflow, adjustable rack angles, and square and threaded mounting holes. The CR6U61003 ships fully assembled for quick deployment and can be customized with compatible accessories. It is covered by a 5-year limited warranty.
Product TypeRack Cabinet
Technical Information
Application/Usage
  • Switch
  • Patch Panel
Features
  • Perforated Door
  • Lockable Door
  • Lockable Side Panel
  • Removable Door
  • Removable Side Panel
  • Reversible Front Door
  • Vented
  • Reversible Door
Physical Characteristics
Form FactorWall Mountable
Color FamilyBlack
Product ColorBlack
Product MaterialMetal
Static/Stationary Weight Capacity132.28 lb (60000 g)
Height12.60" (320.04 mm)
Width23.60" (599.44 mm)
Depth23.60" (599.44 mm)
Weight (Approximate)29.70 lb (13470 g)
Rack Height6U
Miscellaneous
Package Contents
  • CR6U61003 Wall Mount Enclosure
  • Mounting Hardware
Additional Information
  • Physical Dimensions - (WxHxD) (cm) : 59.94 x 32.0 x 59.94 (cm)
  • Physical Dimensions - (WxHxD) (in) : 23.6 x 12.6 x 23.6 (in)
  • Physical Dimensions - (WxHxD) (mm) : 599 x 320 x 599 (mm)
  • Weight (kg) : 13.47
  • Weight (lb) : 29.7
  • Shipping Dimensions - (WxHxD) (cm) : 67.01 x 45.42 x 66.7 (cm)
  • Shipping - Dimensions (WxHxD, in) : 26.38 x 17.88 x 26.26 (in)
  • Shipping - Dimensions (WxHxD, mm) : 670.05 x 454.15 x 667.0 (mm)
  • Shipping - Weight (kg) : 19.5
  • Shipping - Weight (lb) : 43
  • USB Charge Port : No
  • Cable Access Opening Dimensions : 9.8 x 2.2 in (249 x 56 m)
  • Color : Black
  • Door Type : Hex Perforated Metal Door
  • Factory Default Mounting Depth : 17.2 ft (436.9 mm)
  • Material of Construction : Metal
  • Max. Mounting Depth (in) : 20.3
  • Max. Mounting Depth (mm) : 516
  • Min. Mounting Depth (in) : 1.9
  • Min. Mounting Depth (mm) : 47
  • Rack Angle Mounting Hole Type : Square Mounting Holes
  • Rack Height : 6U
  • Weight Capacity - stationary load (kg) : 60
  • Weight Capacity - stationary load (lbs) : 132.3
  • Cable Access : Top and Bottom Openings
  • Lockable Doors and Side Panels : Yes, keyed alike
  • Numbered Rack Units : Yes
  • PE Grounding Point : Yes
  • Removable Doors and Side Panels : Yes
  • Reversible Front Door : Yes
  • Ventilation : Perforated Doors
  • Protection Class : IP20
  • Environmental : RoHS Compliant
  • Safety : EIA-310E, IEC-60297-1, 2, ASTM-D610, ASTM-B117
  • Product Warranty : 5 Year Limited Warranty
  • Assembly RequiredNo
    Environmentally FriendlyYes
    Environmental ComplianceRestriction of Hazardous Substances (RoHS)
    ConditionNo
    UPC0649532936113
    Warranty
    Limited Warranty5 Year
