Grandstream GWN7700 Ethernet Switch
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Grandstream Networks, Inc |
| Manufacturer Part Number | GWN7700 |
| Brand Name | Grandstream |
| Product Series | GWN7700 |
| Product Name | GWN7700 Ethernet Switch |

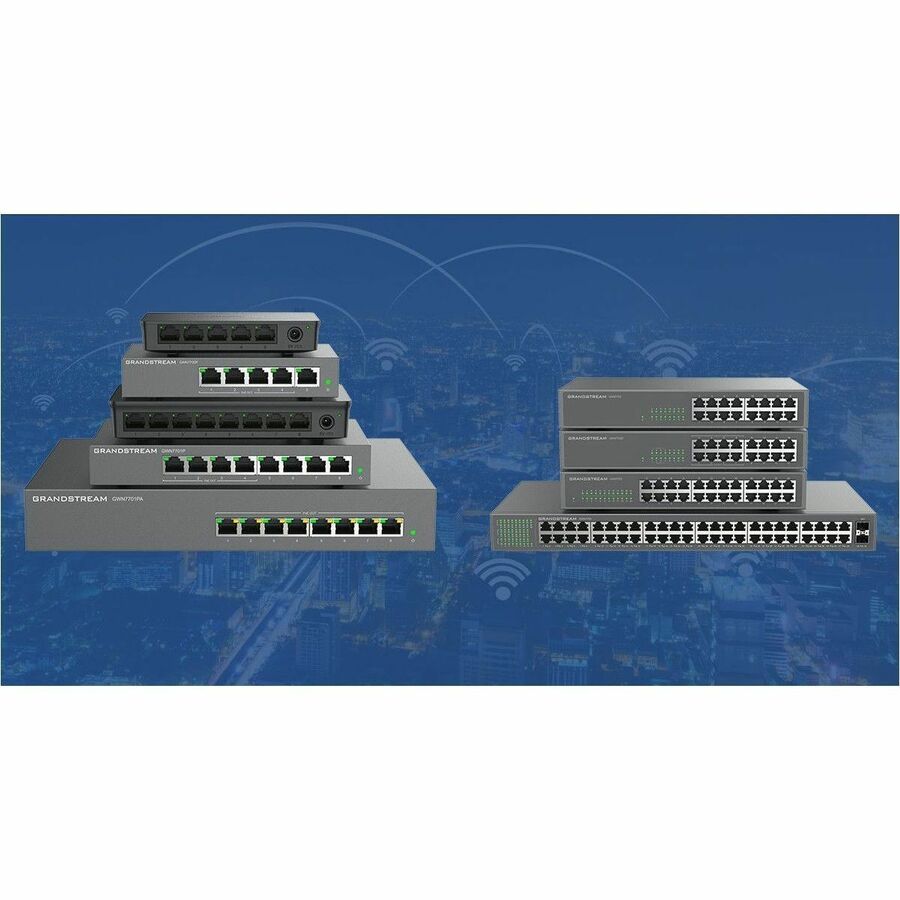

| Marketing Information | Unmanaged Network Switches The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses. 5/8/16/24/48 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA & GWN7702P) Green technology reduces power consumption LED Indicators; Per port: Link/Activity Per device: Power Auto MDI/MDIX crossover for all ports 802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/ GWN7701PA/GWN7702P only) Broadcast/Multicast/ Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels Supports long cable connection QoS - Supports Default Strict Priority when present |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Features |
|
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Maximum Data Transfer Rate | 128 MB/s |
| Layer Supported | 2 |
| Networking Standards |
|
| Manageable | No |
| Power Source | Power Adapter |
| Power Consumption | 1.70 W |
| Product Material | Plastic |
| Form Factor |
|
| Height | 0.96" (24.50 mm) |
| Width | 2.56" (65 mm) |
| Length | 4.72" (120 mm) |
| Weight (Approximate) | 3.53 oz (100 g) |
| Package Contents |
|
| Application/Usage |
|
| Certifications & Standards |
|
| Condition | No |
