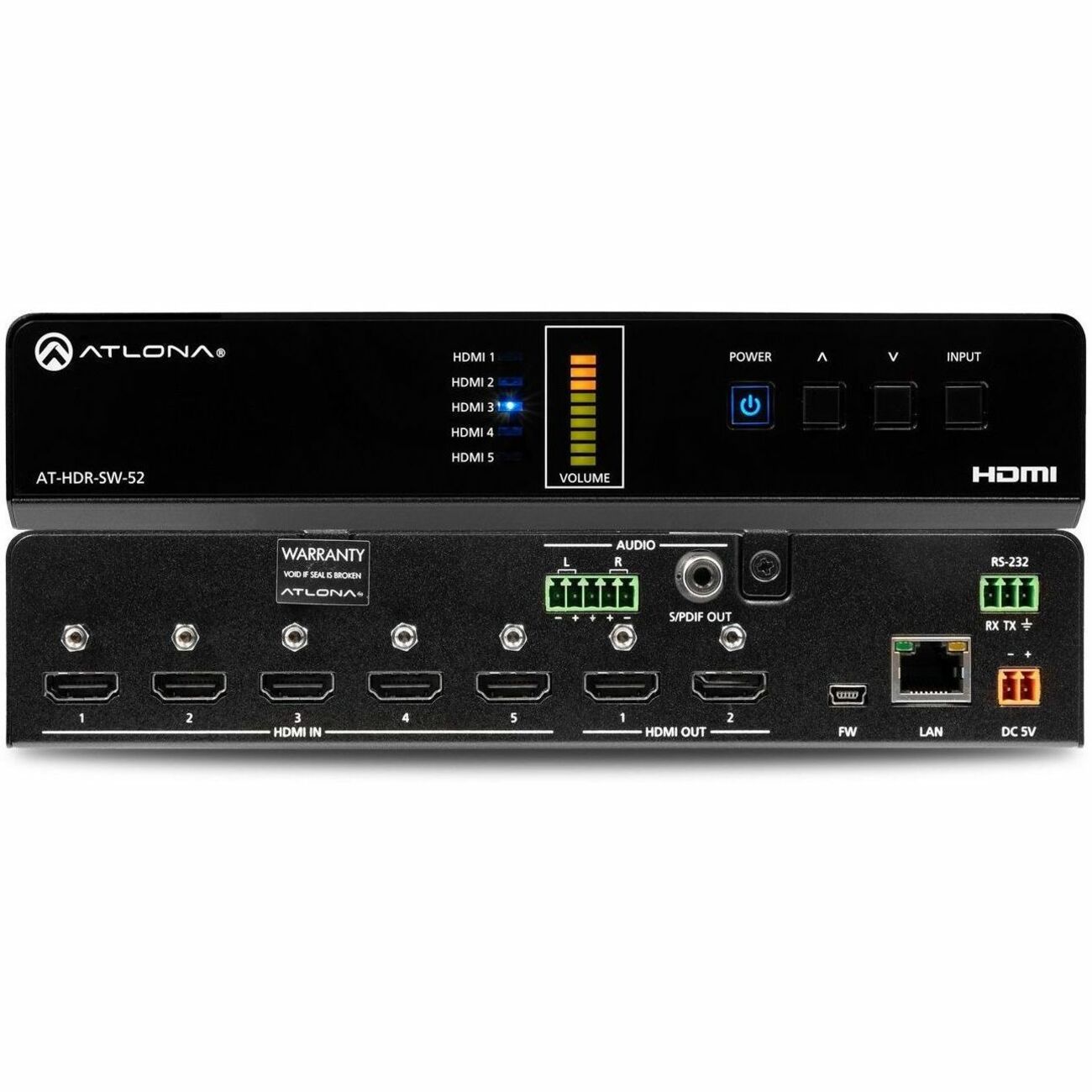

The Atlona AT-HDR-SW-52 is a 5×2 HDMI matrix switcher for high dynamic range (HDR) formats. Part of the comprehensive family of Atlona 4K HDR integration products, it features five HDMI inputs and matrixed or mirrored HDMI outputs. The HDR-SW-52 is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. It is ideal for the latest as well as emerging 4K/UHD and HDR sources and displays, and includes EDID management features, and automatic input switching. Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available for the HDMI outputs when connected to an HD display. The HDR-SW-52 can de-embed audio from an HDMI input to S/PDIF or balanced analog audio outputs. This HDMI switcher can be controlled via Ethernet, RS-232, and IR.

Applications | Conference rooms and meeting rooms

The HDR-SW-52 is compact and ideal for under-table mounting. It conveniently provides automatic switching for simplified user operation, especially when laptops are brought into the system.

Presentation spaces where two displays are needed

This matrix switcher can feed separate content into dual, side-by-side presentation displays.

Key Features | 5x2 HDMI matrix switcher

• HDMI inputs and outputs.
• Delivers flexible matrix switching capability for meeting and presentation spaces.

Selectable AV switching modes

• Selectable switching modes available with mirrored or matrixed outputs.
• Enables simple configuration and effortless user operation, tailored to the specific AV application.

Selectable 4K to 1080p downscaling

• Integrated video processing available for down-converting 4K/UHD @ 60, 30, or 24 Hz to 1080p.
• Ideal for applications with 1080p displays, video conferencing codecs, and other HD sink devices.

Automatic input selection using hot plug detect and video detection technology

• Selects active input when sources are connected or if there is a change in source power status.
• Enables simplified, automatic system operation without user intervention.

Audio de-embedding

• De-embeds two channel PCM audio from the selected HDMI source to S/PDIF and balanced, analog audio outputs.
• De-embeds 5.1 channel PCM audio from the selected HDMI source to S/PDIF audio output.
• Provides direct interfacing into an external audio system.

TCP/IP, RS-232, and IR control

• Flexible control options for compatibility with the Atlona Velocity™ control system, as well as other third-party control systems.
• Reduces integration time and costs.

• 5x2 HDMI Matrix Switcher
• External Power Supply
