Brainboxes Pure Embedded 10/100 5 Port Industrial Ethernet Switch
5 Ports - Fast Ethernet - 100Base-T - 2 Layer Supported - 2.50 W Power Consumption - Twisted Pair - Compact
$56.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | PE505 |
| Brand Name | Brainboxes |
| Product Name | Pure Embedded 10/100 5 Port Industrial Ethernet Switch |

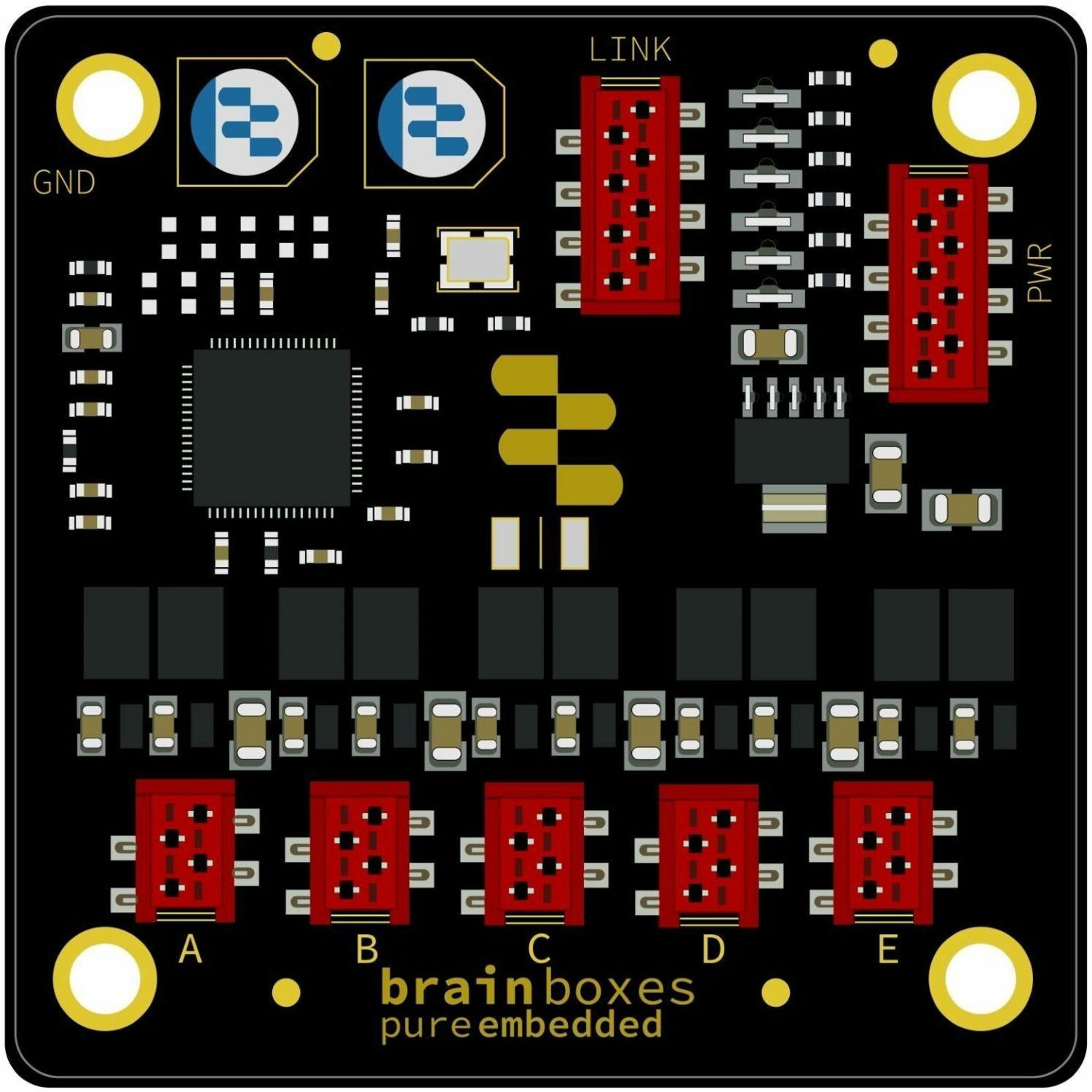

| Marketing Information | Pure compatibility, pure stability, pure design. The perfect fit for any stable, future-proof system, even where space is limited. PE-505 Pure Embedded 5 Port Industrial Ethernet Switch has a mega compact form - at 55x55x10mm it's smaller than a standard business card. 3D CAD files and PCB footprints, combined with logical placements and fixed distances, provide seamless integration with design software. Board-to-board and board-to-cable connection options, with LEDs visible in all orientations, with the option of routing through fibre optic light pipes. |
| Product Type | Ethernet Switch |
Interfaces/Ports
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 5 x Fast Etherent Network |
Media & Performance
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-T |
Network & Communication
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3az |
Power Description
| Input Voltage |
|
| Power Source | DC |
| Power Consumption | 2.50 W |
Physical Characteristics
| Form Factor | Compact |
| Height | 0.39" (10 mm) |
| Width | 2.17" (55 mm) |
| Depth | 2.17" (55 mm) |
| Weight (Approximate) | 1.41 oz (40 g) |
Miscellaneous
| Application/Usage | Industrial |
| Country of Origin | United Kingdom |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 837324004960 |
