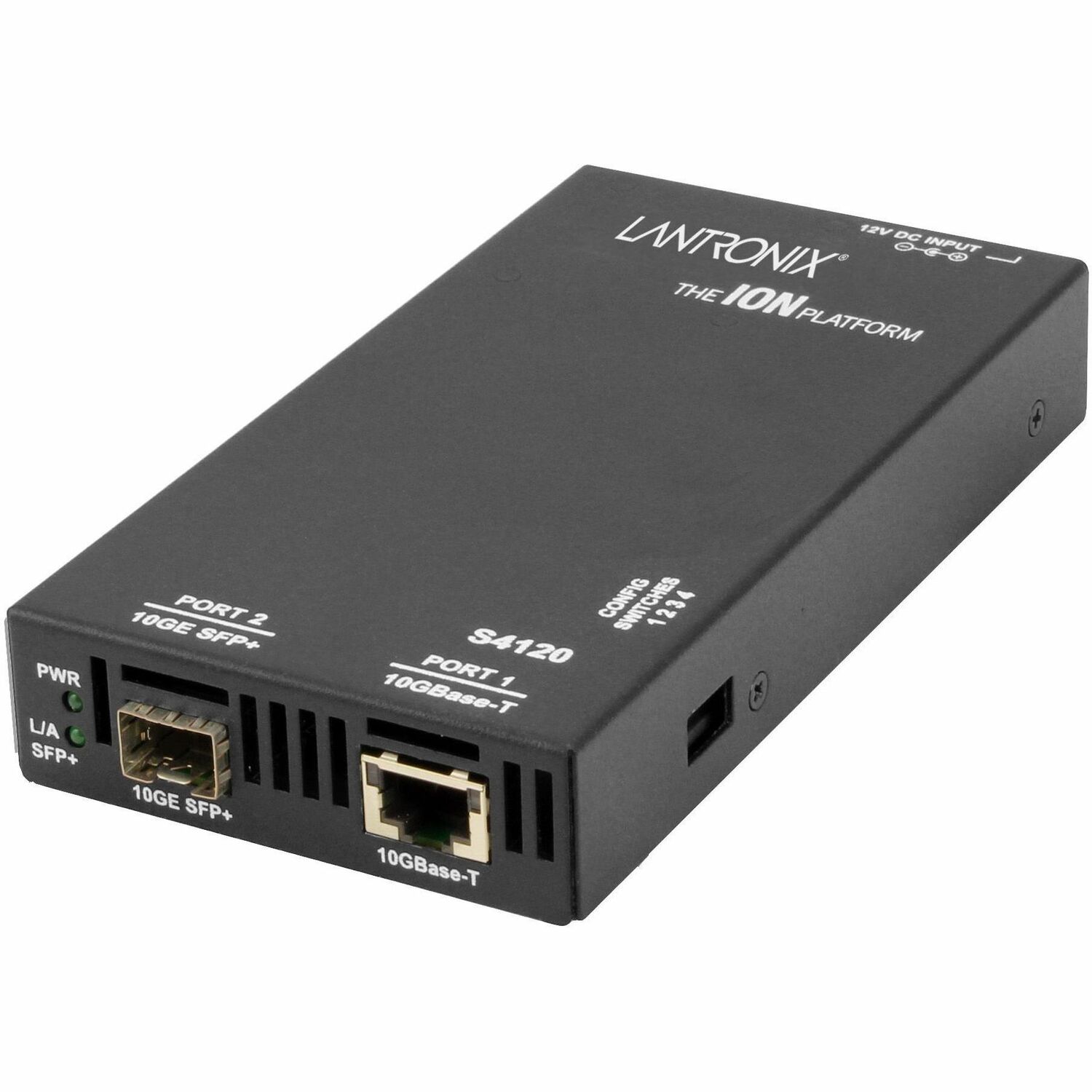

Lantronix S4120-1048 Transceiver/Media Converter
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | S4120-1048-OZ |
| Brand Name | Lantronix |
| Product Line | ION |
| Product Model | S4120-1048 |
| Product Name | S4120-1048 Transceiver/Media Converter |
| Marketing Information | Stand-alone 10 Gigabit Ethernet Media Converter 10GBase-T Copper to Fiber The S4120 is a stand-alone media converter that provides an interface between 10GBase-T ports and 10GBase-X slot via an open SFP+ port, allowing users to convert their 10Gig Ethernet ports to the preferred type of cabling used in their networks. The open SFP+ slot supports a wide variety of Transition Networks 10GE SFP+ fiber modules. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making the S4120 ideal for applications where low latency is essential. The ION S4120 can be managed, in-band, over the fiber, when it is linked back to a C4120 card installed in a managed ION chassis. |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media Type Supported |
|
| Maximum Data Transfer Rate | 10 Gbit/s |
| Maximum Distance Supported | 0.10 km (0.06 Mile) |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 1 |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology |
|
| Power Source | AC/DC |
| Input Voltage | 12 V DC |
| Power Consumption | 10.50 W |
| Form Factor |
|
| Height | 1" (25.40 mm) |
| Width | 3.25" (82.55 mm) |
| Depth | 6.50" (165.10 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Package Contents | |
| Application/Usage |
|
| Additional Information | 10GBase-T RJ-45 100m to 10GBase-X SFP+ Slot (Empty) |
| Certifications & Standards | FCC Class A, EN55022 Class A, EN55024, CE Mark |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Condition | No |
| UPC | 783384246935 |
| Limited Warranty | Lifetime |
