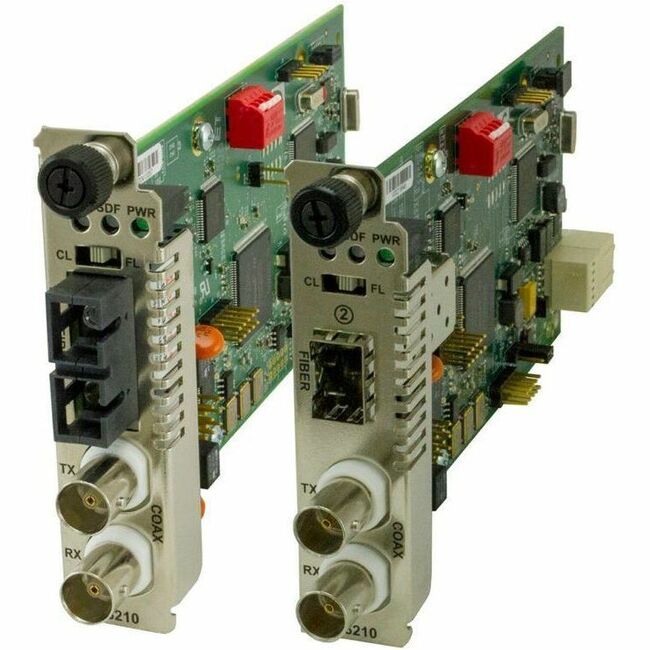

Transition Networks ION DS3 - T3/E3 Network Interface Device Module
1 x SC Ports - Multi-mode - 1300 nm Fiber - Fast Ethernet - T3/E3, 100Base-X/OC-3 - 2 km (1.24 Mile) - 1 x Expansion Slots - SFP - 1 x SFP Slots - Plug-in Module
$923.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | C6210-3013 |
| Brand Name | Transition Networks |
| Product Line | ION |
| Product Series | C6210 |
| Product Model | C6210-3013 |
| Product Name | ION DS3 - T3/E3 Network Interface Device Module |
| Marketing Information | The ION C6210 is a managed media converter module that provides a solution for those users that need to extend DS3-T3/E3 connections over fiber. The C6210 is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure. The C6210 DS3-T3/E3 converters must be used in pairs. A typical installation will include a modular card installed in a managed ION chassis linked over fiber to a stand-alone S6210 in a remote location. |
| Product Type | Transceiver/Media Converter |
Interfaces/Ports
| Total Number of Ports | 3 |
| Number of SC Ports | 1 |
Media & Performance
| Media Type Supported |
|
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1300 nm |
| Maximum Distance Supported | 2 km (1.24 Mile) |
I/O Expansions
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
Network & Communication
| Ethernet Technology | Fast Ethernet |
| Network Technology |
|
Power Description
| Power Consumption | 2.50 W |
Physical Characteristics
| Form Factor | Plug-in Module |
| Height | 3.40" (86.36 mm) |
| Width | 0.86" (21.84 mm) |
| Depth | 6.50" (165.10 mm) |
| Weight (Approximate) | 1 lb (453.59 g) |
Miscellaneous
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 648177031511 |
Warranty
| Limited Warranty | Lifetime |
