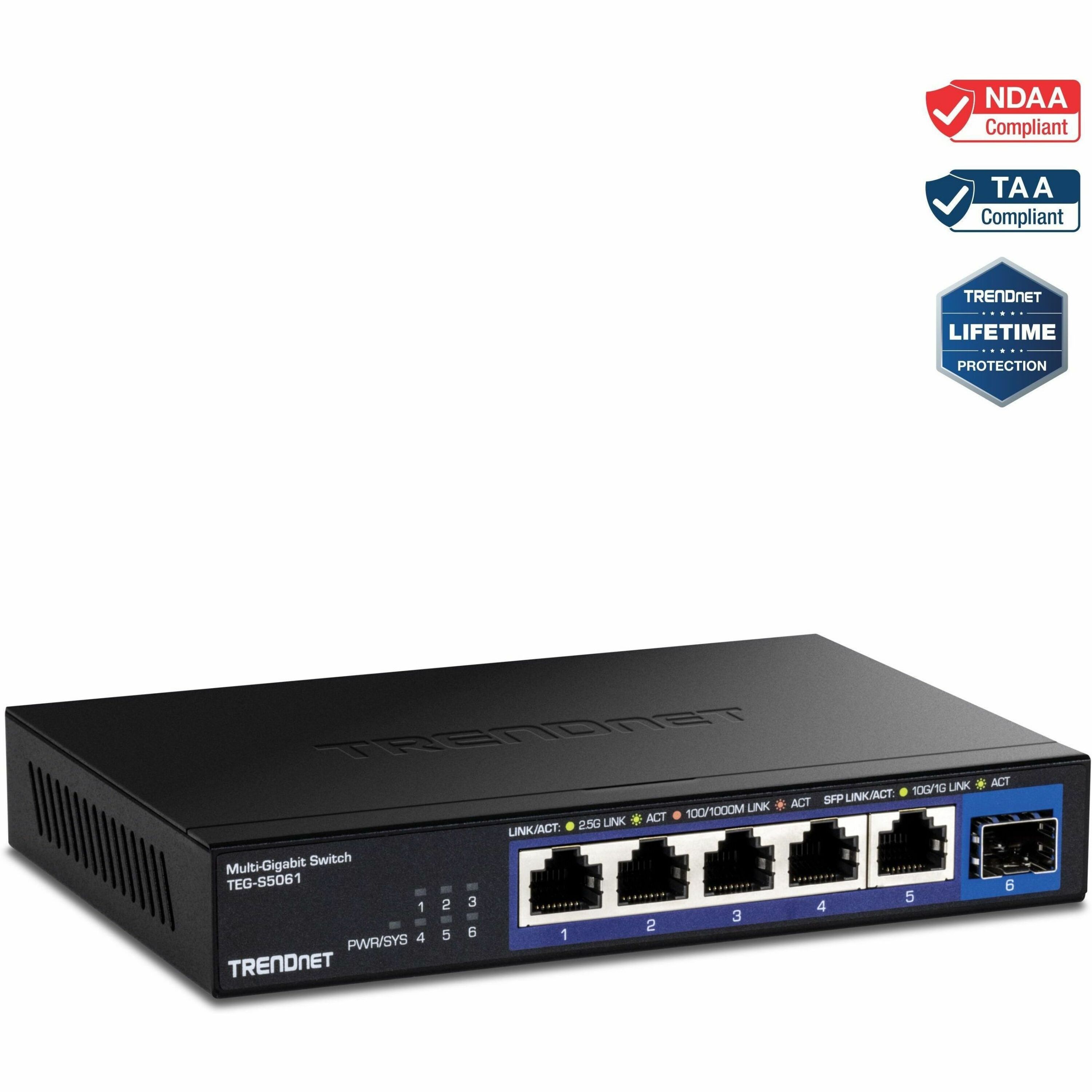

TRENDnet 6-Port 2.5G Unmanaged Switch with 10G SFP+ Port

5 Ports - 2.5 Gigabit Ethernet, 10 Gigabit Ethernet - 2.5GBase-T, 10GBase-X - 2 Layer Supported - Modular - 9.50 W Power Consumption - Twisted Pair, Optical Fiber - Wall Mountable - Lifetime Limited Warranty

Part No. TEG-S5061

by TRENDnet

$92.99

Manufacturer Brochure

Specifications

General Information

Manufacturer	TRENDnet
Manufacturer Part Number	TEG-S5061
Brand Name	TRENDnet
Product Model	TEG-S5061
Product Name	6-Port 2.5G Unmanaged Switch with 10G SFP+ Port
Marketing Information	Expand your network's bandwidth and reduce digital bottlenecks with TRENDnet's 6-Port 2.5G Unmanaged Switch with 10G SFP+ Port. These multi-gig network switches come equipped with 2.5GBASE-T RJ-45 ports that provide speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling, and a 10G SFP+ port for long-distance fiber networking. Each multi-gig switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. TRENDnet's reliable switches are cost-effective solutions to increase your network's throughput. DEVICE INTERFACE: 5 x 2.5GBASE-T ports (100Mbps/1Gbps/ 2.5Gbps); 1 x 10G SFP+ slot (1Gbps / 10Gbps); LED indicators LIFETIME PROTECTION -We stand by the quality of our products.The TEG-S5061 6-Port Unmanaged 2.5G Switch is backed with Lifetime Manufacturer Protection (U.S. and Canada Only) NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only) 2.5G PORTS: The 6 Port network switch is equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling. 10 GIGABIT SFP+ SLOT: A dedicated 10G SFP+ slot for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network SWITCHING CAPACITY: The unmanaged switch is equipped with a 45Gbps Switching Capacity; COMPATABILITY: The 6 Port Ethernet switch is backwards compatible with 10/100/1000Mbps devices. WALL MOUNTABLE: The 2.5G unmanaged switch features a durable metal housing with a convenient wall mountable design for greater installation flexibility. FANLESS DESIGN: The fanless design lowers energy consumption and eliminates distracting operating noise. IEEE STANDARD: IEEE 802.3bz (2.5G) and IEEE 802.3ae (10G SFP+) Compliant
Product Type	Ethernet Switch

Technical Information

Features	Fanless

Interfaces/Ports

Total Number of Network Ports	5
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	5 x 2.5 Gigabit Ethernet Network 1 x 10 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	2.5 Gigabit Ethernet 10 Gigabit Ethernet
Network Technology	2.5GBase-T 10GBase-X

I/O Expansions

Total Number of Expansion Slots	1
Expansion Slot Type	SFP+
Number of SFP+ Slots	1

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3bz IEEE 802.3ae IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3az

Management & Protocols

Manageable	No

Power Description

Input Voltage	120 V AC 230 V AC
Frequency	50 Hz 60 Hz
Power Source	Power Adapter
Power Consumption	9.50 W

Physical Characteristics

Product Material	Metal
Form Factor	Wall Mountable
Height	1.02" (26 mm)
Width	4.33" (110 mm)
Length	6.30" (160 mm)
Weight (Approximate)	14.60 oz (414 g)

Miscellaneous

Package Contents	6-Port 2.5G Unmanaged Switch with 10G SFP+ Port Quick Installation Guide Power Adapter (12V DC, 1A)
Application/Usage	Network
Country of Origin	Taiwan
TAA Compliant	Yes
Condition	No
UPC	0710931141122

Warranty

Limited Warranty	Lifetime
