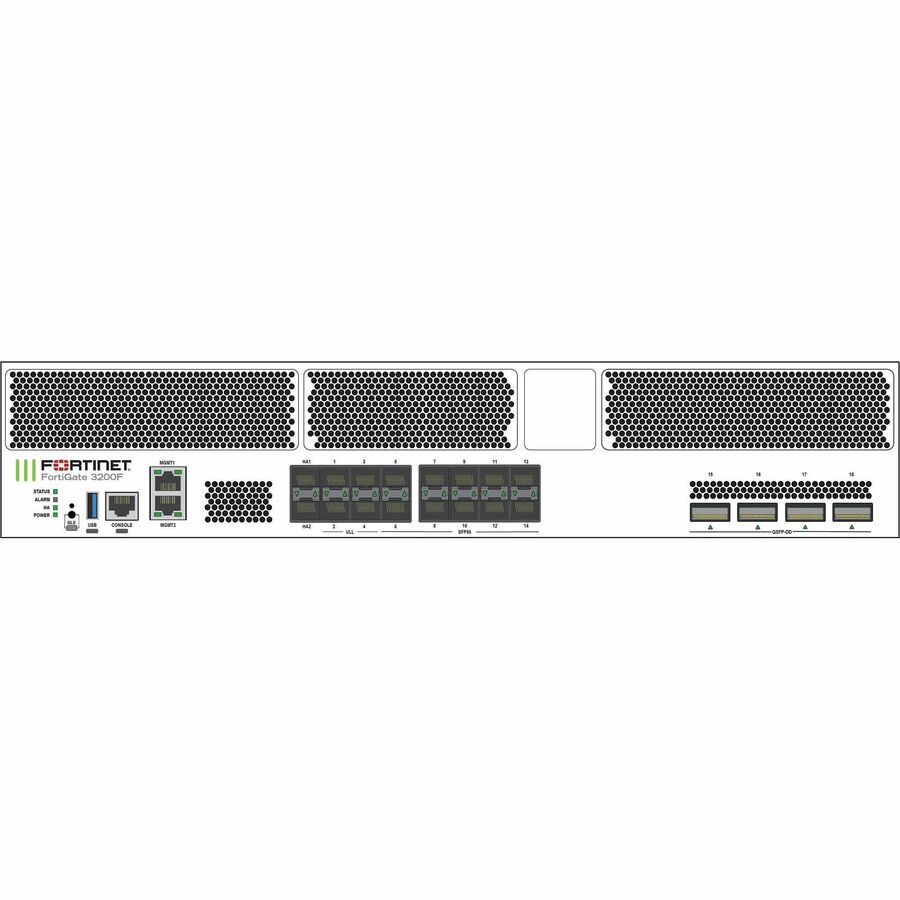

Fortinet FortiGate FG-3200F Network Security/Firewall Appliance

Part No. FG-3200F-BDL-809-36

by Fortinet, Inc

$526702.99

Fortinet FortiGate FG-3200F Network Security/Firewall Appliance

Intrusion Prevention - 100GBase-X, 10GBase-X - 400 Gigabit Ethernet - 387 Gbit/s Firewall Throughput - AES 256-bit, SHA-256, TLS 1.3, SSL - 30000 VPN - 18 Total Expansion Slots - 3 Year FortiCare Premium and FortiGuard Enterprise Protection - 50 Hz, 60 Hz - 2U - Rack-mountable, Rail-mountable

Part No. FG-3200F-BDL-809-36

by Fortinet, Inc

$526702.99
General Information
ManufacturerFortinet, Inc
Manufacturer Part NumberFG-3200F-BDL-809-36
Brand NameFortinet
Product LineFortiGate
Product Series3200F
Product ModelFG-3200F
Product NameFortiGate FG-3200F Network Security/Firewall Appliance
Marketing Information

High Performance with Flexibility

The FortiGate 3200F Series enables organizations to build security-driven networks that can weave security deep into their datacenter and across their hybrid IT architecture to protect any edge at any scale.

Powered by a rich set of AI/ML-based FortiGuard Services and an integrated security fabric platform, the FortiGate 3200F Series delivers coordinated, automated, end-to-end threat protection across all use cases.

The industry's first integrated Zero Trust Network Access (ZTNA) enforcement within an NGFW solution, FortiGate 3200F automatically controls, verifies, and facilitates user access to applications delivering consistent convergence with a seamless user experience.

FortiOS Everywhere | FortiOS, Fortinet's Advanced Operating System

FortiOS enables the convergence of high performing networking and security across the Fortinet Security Fabric. Because it can be deployed anywhere, it delivers consistent and context-aware security posture across network, endpoint, and multi-cloud environments.

FortiOS powers all FortiGate deployments whether a physical or virtual device, as a container, or as a cloud service. This universal deployment model enables the consolidation of many technologies and use cases into a simplified, single policy and management framework. Its organically built best-of-breed capabilities, unified operating system, and ultra-scalability allows organizations to protect all edges, simplify operations, and run their business without compromising performance or protection.

FortiOS dramatically expands the Fortinet Security Fabric's ability to deliver advanced AI/ ML-powered services, inline advanced sandbox detection, integrated ZTNA enforcement, and more, provides protection across hybrid deployment models for hardware, software, and Software-as-a-Service with SASE.

FortiOS expands visibility and control, ensures the consistent deployment and enforcement of security policies, and enables centralized management across large-scale networks with the following key attributes:

  • Interactive drill-down and topology viewers that display real-time status
  • On-click remediation that provides accurate and quick protection against threats and abuses
  • Unique threat score system correlates weighted threats with users to prioritize investigations


FortiConverter Service

FortiConverter Service provides hassle-free migration to help organizations transition from a wide range of legacy firewalls to FortiGate Next-Generation Firewalls quickly and easily. The service eliminates errors and redundancy by employing best practices with advanced methodologies and automated processes. Organizations can accelerate their network protection with the latest FortiOS technology.

FortiGuard Services | Network and File Security

Services provide protection against network-based and file-based threats. This consists of Intrusion Prevention (IPS) which uses AI/M models to perform deep packet/SSL inspection to detect and stop malicious content, and apply virtual patching when a new vulnerability is discovered. It also includes Anti-Malware for defense against known and unknown file-based threats. Anti-malware services span both antivirus and file sandboxing to provide multilayered protection and are enhanced in real-time with threat intelligence from FortiGuard Labs. Application Control enhances security compliance and offers real-time application visibility.

Product TypeNetwork Security/Firewall Appliance
Technical Information
FunctionalityIntrusion Prevention
Firewall Protection Supported
  • Zero Trust Network Access (ZTNA)
  • DNS Security
  • Antivirus
  • Application Control
  • Malware Protection
  • Threat Protection
  • Intrusion Prevention
  • URL Filtering
  • Zero Day Event
  • Network Protection
  • Enterprise Security
  • Advanced Threat Protection
Firewall Throughput387 Gbit/s
Encryption Standard
  • AES 256-bit
  • SHA-256
  • TLS 1.3
  • SSL
Number of VPN Supported30000
Data Link ProtocolsHTTP
Connectivity TechnologyWired
Number of Concurrent Sessions (Max)70000000
AI-poweredYes
Interfaces/Ports
USBYes
Media & Performance
VPN Throughput13.13 GB/s
IPS Throughput7.88 GB/s
Network & Communication
Ethernet Technology400 Gigabit Ethernet
Network Standard
  • 100GBase-X
  • 10GBase-X
I/O Expansions
Total Number of Expansion Slots18
Expansion Slot Type
  • QSFP-DD
  • QSFP56
  • QSFP28
  • QSFP+
  • SFP56
  • SFP28
  • SFP+
  • SFP (mini-GBIC)
Management & Protocols
ManageableYes
Power Description
Frequency
  • 50 Hz
  • 60 Hz
Power Consumption865 W
Physical Characteristics
Compatible Rack Unit2U
Form Factor
  • Rack-mountable
  • Rail-mountable
Height3.50" (88.90 mm)
Width17.44" (443 mm)
Depth23.90" (607.10 mm)
Weight (Approximate)43.90 lb (19912.71 g)
Miscellaneous
Application/Usage
  • Business
  • Network
  • Data Center
  • Security
  • Enterprise
ConditionNo
UPC195875223668
Warranty
Support/Service Duration3 Year
Support/Service TypeFortiCare Premium and FortiGuard Enterprise Protection
connector cables (11)

Part No. FN-CABLE-SFP56-DAC-L1

Fortinet SFP56 Network Cable - 3.3 ft (1 m) SFP56 Network Cable for Network Device

FORTINET 50 GE SFP56 PASSIVE DIRECT ATTACH CABLE, 1M 50 GE SFP56 PASSIVE DIRECTATTACH CABLE, 1M, FOR SYSTEMS WITH SFP56 SLOTS.

Part No. FN-CABLE-QSFPDD-DAC-B5

Fortinet 400 GE Passive Direct Attach Cable 2.5m - 8.2 ft (2.50 m) Twinaxial Network Cable for Network Device - 425 Gbit/s - 26 AWG

FORTINET 400 GE QSFPDD PASSIVE DIRECT ATTACH CABLE 2.5M FOR SYSTEMS WITH QSFP-DDSLOTS.

Part No. FN-CABLE-QSFP56-DAC-LB5

Fortinet 200 GE QSFP56 Passive Direct Attach Cable, 2.5m - 8.2 ft (2.50 m) Twinaxial Network Cable for Network Device - 200 Gbit/s - 28 AWG

FORTINET 200 GE QSFP56 PASSIVE DIRECT ATTACH CABLE, 2.5M 200 GE QSFP56 PASSIVE DIRECT ATTACH CABLE, 2.5M, FOR SYSTEMS WITH QSFP56 SLOTS.

Part No. FN-CABLE-QSFPDD-AOC-03

Fortinet Fiber Optic Network Cable - 9.8 ft (3 m) Fiber Optic Network Cable for Network Device - 400 Gbit/s

FORTINET 400 GE QSFPDD ACTIVE OPTICAL CABLE, 3M 400 GE QSFPDD ACTIVE OPTICAL CABLE, 3M, FOR SYSTEMS WITH QSFP-DD SLOTS

Part No. FN-CABLE-QSFPDD-DAC-01

Fortinet 400 GE Passive Direct Attach Cable 1m - 3.3 ft (1 m) Twinaxial Network Cable for Network Device, Transceiver - 425 Gbit/s - 30 AWG

FORTINET 400 GE QSFPDD PASSIVE DIRECT ATTACH CABLE 1M FOR SYSTEMS WITH QSFP-DD SLOTS.

Part No. FN-CABLE-QSFP56-DAC-L1

Fortinet QSFP56 Network Cable - 3.3 ft (1 m) QSFP56 Network Cable for Network Device

FORTINET 200 GE QSFP56 PASSIVE DIRECT ATTACH CABLE, 1M 200 GE QSFP56 PASSIVE DIRECT ATTACH CABLE, 1M, FOR SYSTEMS WITH QSFP56 SLOTS.

modules (28)

Part No. FN-TRAN-QSFPDD-DR4

400GE QSFPDD TRANS MODULE 4CHAN PARALLEL FIBER SHORT RANGE

FORTINET 400 GE QSFPDD TRANSCEIVER MODULE 4 CHANNEL PARALLEL FIBER SHORT RANGE FOR SYSTEMS WITH QSFP-DD SLOTS

$20989.99

Part No. FN-TRAN-QSFP56-FR4

Fortinet QSFP56 Module - For Data Networking, Optical Network - 1 x LC 200G-Base-FR4 Duplex Network - Optical Fiber - Single-mode - 200 Gigabit Ethernet - 200GBase-FR4 - 212.50 Gbit/s - 200 km (124.27 Mile) Maximum Distance - Hot-pluggable

FORTINET 200 GE QSFP56 TRANSCEIVER MODULE, 2KM RANGE 200 GE QSFP56 TRANSCEIVER MODULE, 2KM RANGE, FOR SYSTEMS WITH QSFP56 SLOTS.

Part No. FN-TRAN-QSFPDD-FR4

Fortinet QSFP-DD Module - For Data Networking, Optical NetworkOptical Fiber - Single-mode - 400 Gigabit Ethernet100 km Maximum Distance

FORTINET 400 GE QSFPDD TRANSCEIVER MODULE 2KM RANGE SMF FOR SYSTEMS WITH QSFP-DDSLOTS

Part No. FN-TRAN-QSFP56-SR4

Fortinet 200 GE QSFP56 Transceiver Module, Short Range - For Data Networking, Optical Network - 1 x MPO-12 200GBase-SR4 Network - Optical Fiber - Multi-mode - 200 Gigabit Ethernet - 200GBase-SR4 - 212.50 Gbit/s - 0.10 km (0.06 Mile) Maximum Distance - Hot-pluggable

FORTINET 200 GE QSFP56 TRANSCEIVER MODULE, SHORT RANGE, FOR SYSTEMS WITH QSFP56SLOTS. 200 GE QSFP56 TRANSCEIVER MODULE, SHORT RANGE, FOR SYSTEMS

Part No. FN-TRAN-SFP56-SR

Fortinet 50 GE SFP56 Transceiver Module, Short Range - For Data Networking, Optical Network - 1 x LC Duplex 50GBase-SR Network - Optical Fiber - Multi-mode - 50 Gigabit Ethernet - 50GBase-SR - 53.12 Gbit/s - 0.10 km (0.06 Mile) Maximum Distance - Hot-pluggable

FORTINET 50 GE SFP56 TRANSCEIVER MODULE, SHORT RANGE FOR SYSTEMS WITH SFP56 SLOTS. 50 GE SFP56 TRANSCEIVER MODULE, SHORT RANGE FOR SYSTEMS WITH SFP56

mounting kits (1)
