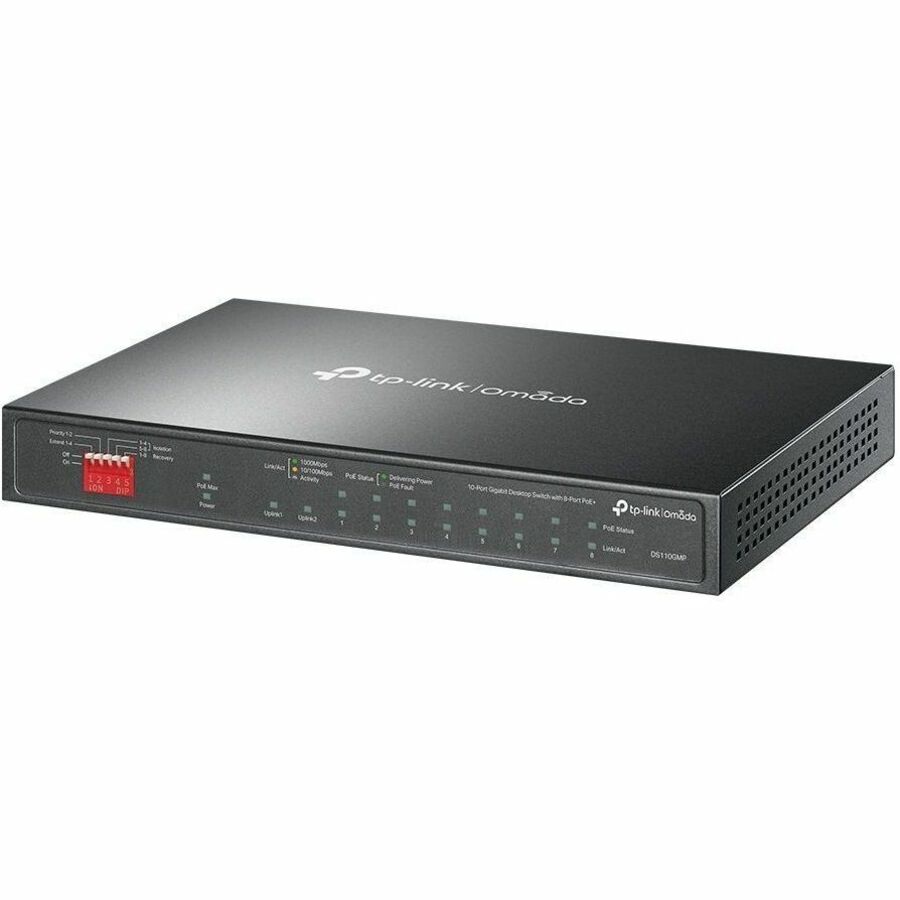

Omada Omada 10-Port Gigabit Desktop Switch with 8-Port PoE+

9 Ports - Gigabit Ethernet, Fast Ethernet - 10/100/1000Base-T, 1000Base-X - 1 SFP Slots - 141.40 W Power Consumption - 123 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Wall Mountable

Part No. DS110GMP

by TP-LINK Technologies Co., Ltd

$110.99

Specifications

General Information

Manufacturer	TP-LINK Technologies Co., Ltd
Manufacturer Part Number	DS110GMP
Brand Name	Omada
Product Name	Omada 10-Port Gigabit Desktop Switch with 8-Port PoE+
Marketing Information	9× Gigabit RJ45 ports, and 1× Gigabit combo SFP/RJ45 Port 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W^* Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port Up to 250 m (820ft) data and power transmission range under Extend Mode^** Priority Mode ensures high priority of ports 1-2 to guarantee the quality of the sensitive applications Isolation Mode allows one-click client traffic separation for higher security and performance Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery. Plug and Play. No configuration or central management required. Fanless design reduces power consumption and works silently in its location
Product Type	Ethernet Switch

Technical Information

Features	Fanless

Interfaces/Ports

Total Number of Network Ports	9
Uplink Port	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	9 × 10/100/1000BASE-T RJ45 Network Ports 1 × 1000 Mbps SFP Expansion Port

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet Fast Ethernet
Network Technology	10/100/1000Base-T 1000Base-X
Maximum Data Transfer Rate	128 MB/s

I/O Expansions

Total Number of Expansion Slots	1.0
Expansion Slot Type	SFP
Number of SFP Slots	1

Network & Communication

Networking Standards	IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af IEEE 802.3at IEEE 802.1p IEEE 802.3z

Management & Protocols

Manageable	No

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	123 W
Input Voltage	120 V AC 230 V AC
Frequency	50 Hz 60 Hz
Power Source	DC Power Adapter
Power Consumption	141.40 W

Physical Characteristics

Form Factor	Wall Mountable
Height	1" (25.40 mm)
Width	8.20" (208.28 mm)
Depth	4.90" (124.46 mm)
