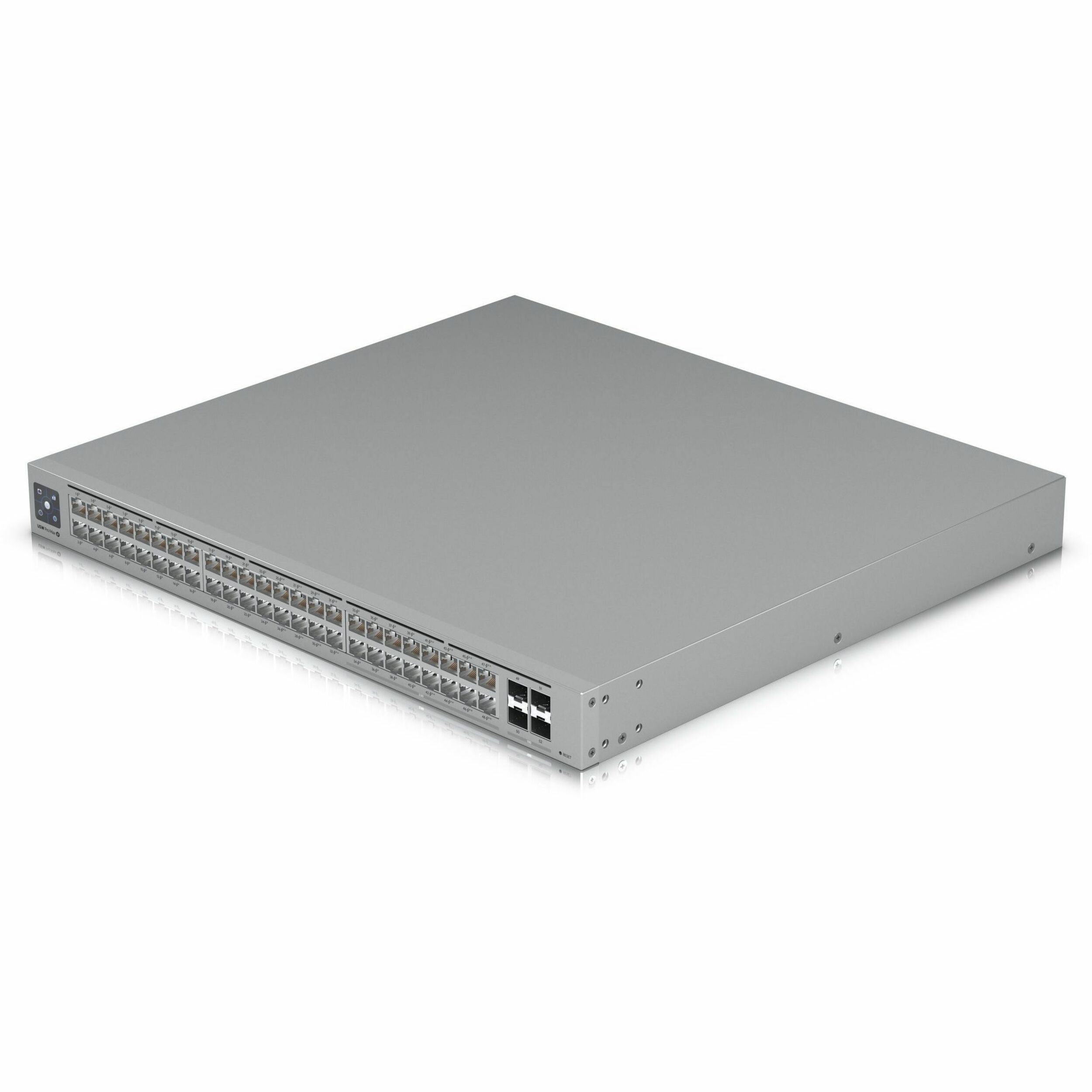

Ubiquiti USW-Pro-Max-48-PoE Ethernet Switch

48 Ports - Manageable - Gigabit Ethernet, 2.5 Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 2.5GBase-T, 10GBase-X - 3 Layer Supported - 820 W Power Consumption - 720 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable

Part No. USW-Pro-Max-48-PoE

by Ubiquiti Inc.

$1966.99

Specifications
Options & Accessories (7)

General Information

Manufacturer	Ubiquiti Inc.
Manufacturer Part Number	USW-Pro-Max-48-PoE
Brand Name	Ubiquiti
Product Line	Pro Max
Product Model	USW-Pro-Max-48-PoE
Product Name	USW-Pro-Max-48-PoE Ethernet Switch
Product Type	Ethernet Switch

Technical Information

Features	Access Control List IGMP Snooping Flow Control Port Mirroring Virtual LAN (VLAN) Loop Protection Reset Button DHCP Relay DHCP Snooping Quality of Service (QoS)

Interfaces/Ports

Total Number of Network Ports	48
Network (RJ-45)	Yes
Port/Expansion Slot Details	24 x Gigabit Ethernet PoE+ 8 x Gigabit Ethernet PoE++ 8 x 2.5 Gigabit Ethernet PoE+ 8 x 2.5 Gigabit Ethernet PoE++ 4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet 2.5 Gigabit Ethernet 10 Gigabit Ethernet
Network Technology	10/100/1000Base-T 2.5GBase-T 10GBase-X
Maximum Data Transfer Rate	1.25 GB/s

I/O Expansions

Total Number of Expansion Slots	4
Expansion Slot Type	SFP+
Number of SFP+ Slots	4

Network & Communication

Layer Supported	3
Networking Standards	IEEE 802.1x

Management & Protocols

Manageable	Yes

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	720 W
Input Voltage	120 V AC 230 V AC
Frequency	50 Hz 60 Hz
Power Source	AC/DC
Power Consumption	820 W

Physical Characteristics

Product Material	SGCC Steel
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.73" (44 mm)
Width	17.42" (442.40 mm)
Depth	15.75" (400 mm)
Weight (Approximate)	13.67 lb (6200 g)

Miscellaneous

Application/Usage	Network Wireless Access Point Security Camera
Additional Information	Switching Capacity: 224 Gbps Total Non-Blocking Throughput: 112 Gbps Forwarding Rate: 167 Mpps Supported VLANs: 1,000 MAC Address Table Size: 32,000 Management: Ethernet, AR Heat Dissipation: 341.2 BTU/hr (Excluding PoE Output) Supported Rack Depth: 400~1200 mm (15.7-47.2") LCM Display: 1.3" touchscreen ESD Protection: Air: ± 16kV, contact: ± 12kV Ambient Operating Temperature: -5 to 40° C (23 to 104° F) Ambient Operating Humidity: 10 to 90% noncondensing NDAA Compliant: Yes DHCP Server (Local Networks): Yes Inter-VLAN Routing (Local Networks): Yes Static Routing (Local Networks): Yes LACP Port Aggregation: Yes STP & RSTP: Yes QoS (DSCP): Yes Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes MAC-Based ACLs & Device Isolation: Yes DHCP Snooping & Guarding: Yes Egress Rate Limit: Yes Storm Control: Yes Multicast & Broadcast Rate Limiting: Yes MAC Address Blocking: Yes IP-Based ACLs & Network Isolation: Yes MAC-Based Port Restriction: Yes Port Isolation: Yes Jumbo Frames: Yes LLDP-MED: Yes Voice VLAN: Yes Virtual Network Override: Yes
Certifications & Standards	CE FCC IC Anatel: 06373-24-08356
Condition	No
UPC	810084692615
