A managed PoE passthrough switch to get the most out of each Power over Ethernet connection

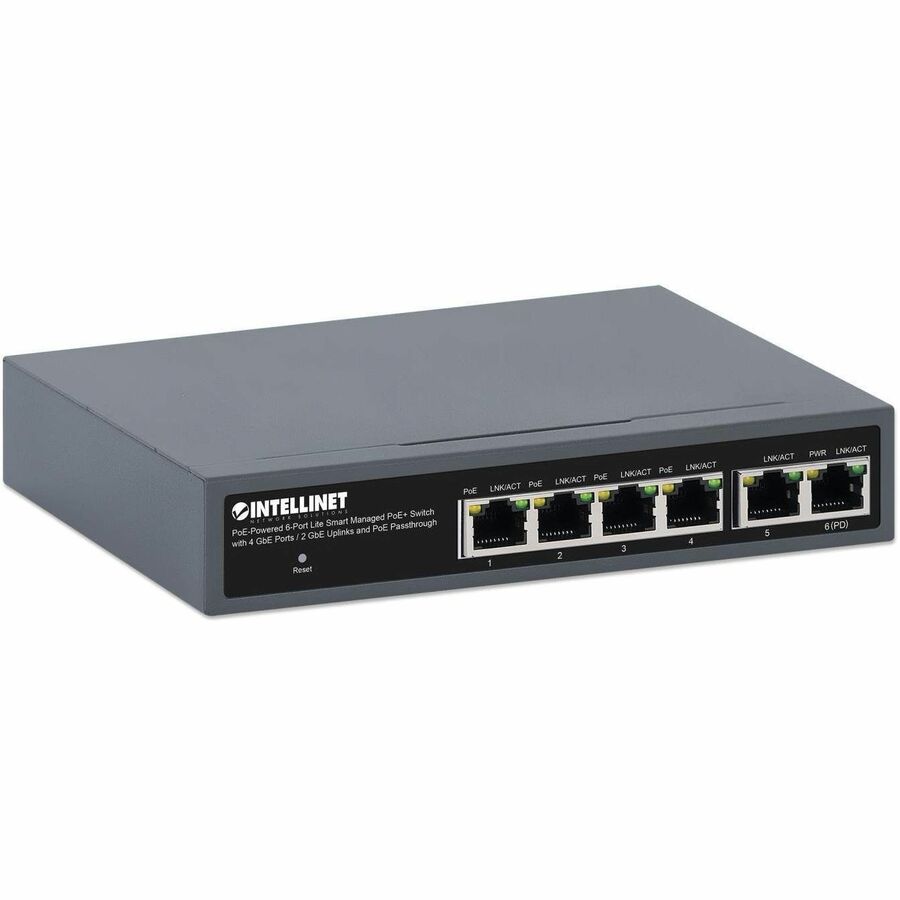

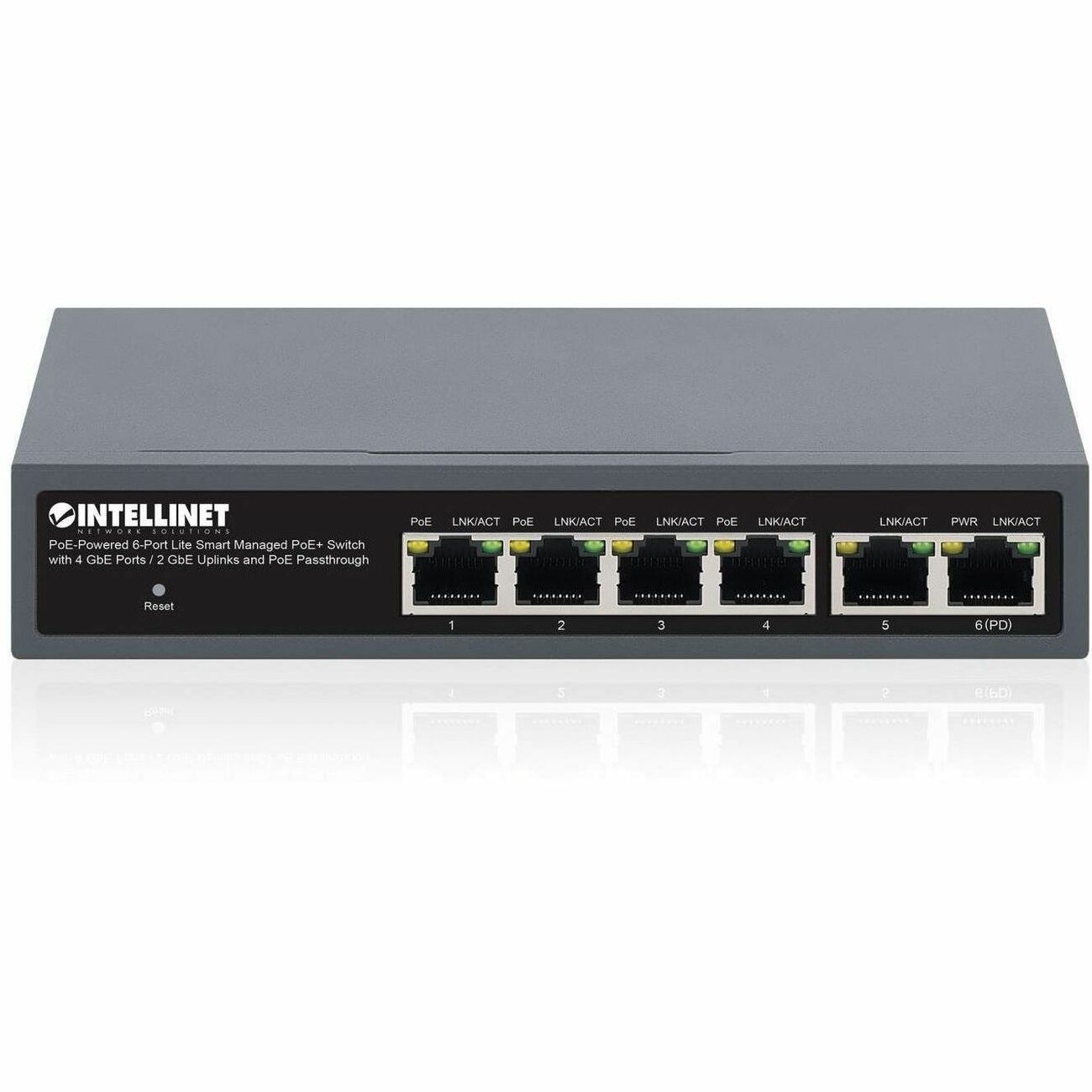

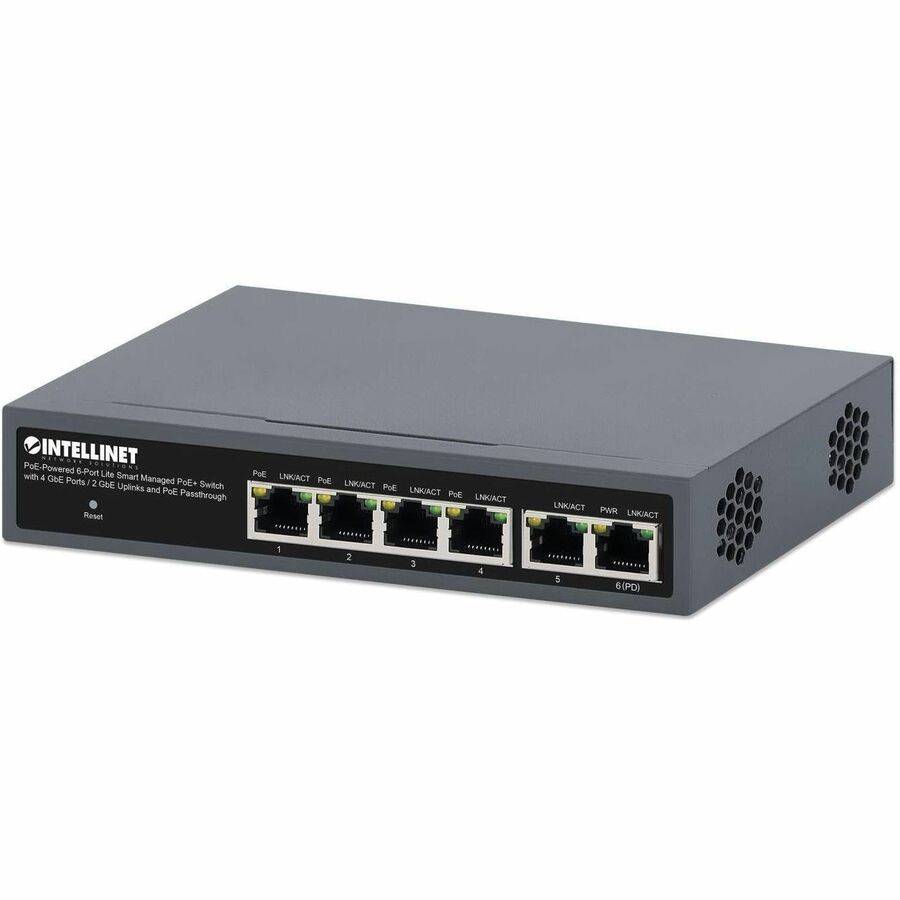

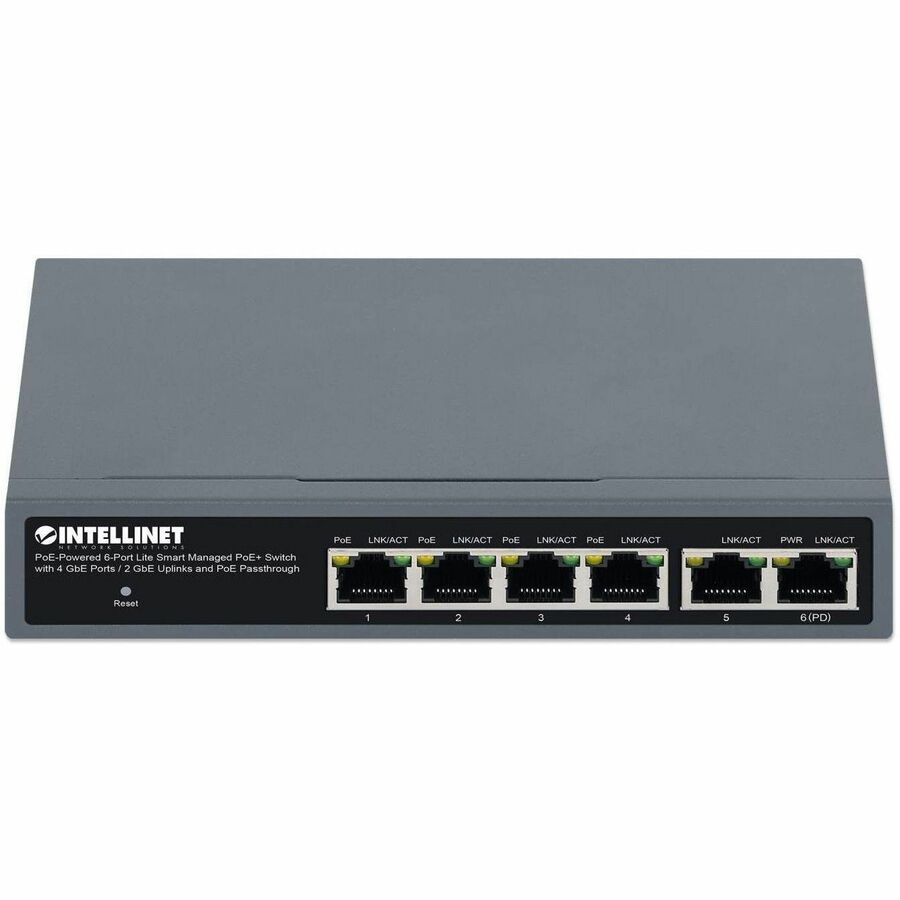

The PoE-Powered 6-Port Lite Smart Managed PoE+ Switch with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough from Intellinet Network Solutions is designed to take power from a PoE switch or injector and pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with six Gigabit Ethernet ports, this switch can power up to four wireless LAN access points and bridges, VoIP phones or IP video cameras, draw its own power from the PoE switch it is connected to, and deliver network speeds up to 1,000 Mbps.

Usable as a PoE extender

Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using it this way also eliminates the time and expense of electrical rewiring, which minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls while providing up to 30 W to compatible devices.

Lite and smart network management

With a simplified web interface and the most common configuration options, this switch is reduced to the essentials for a user-friendly installation.

The Perfect Workgroup Switch

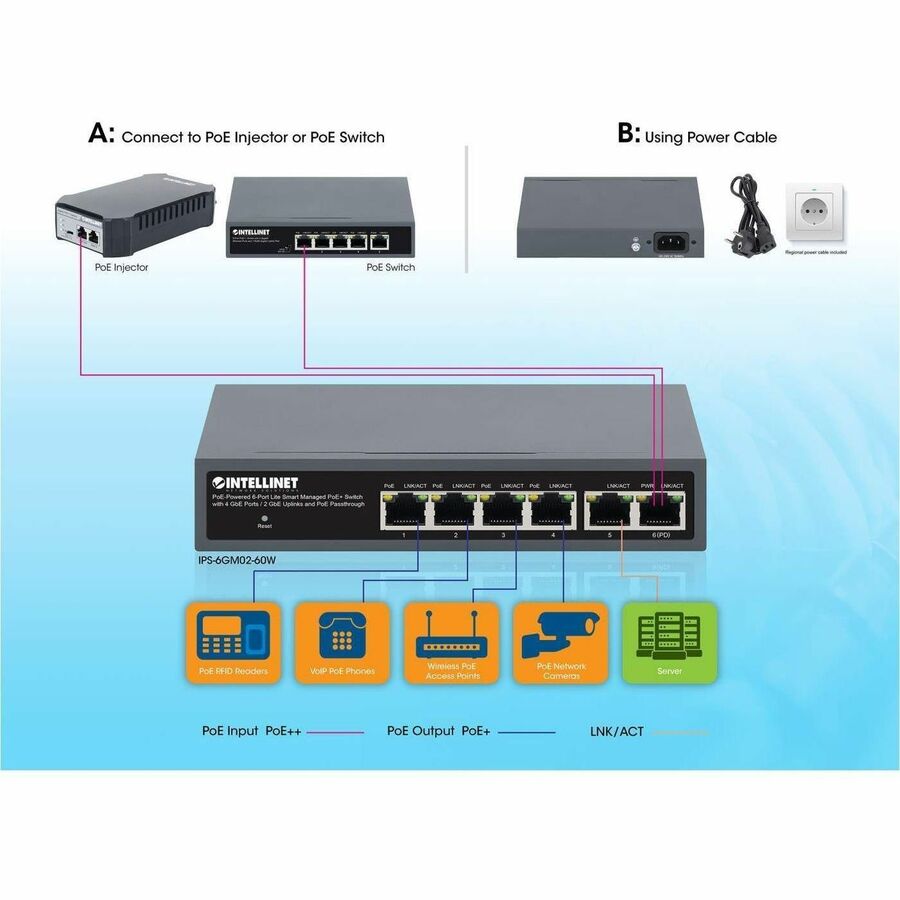

When you connect the PD port (port 6) to a PoE injector or switch, this product uses some of the electric current to power itself. It then passes the available surplus power to four or fewer PoE edge devices, such as VoIP phones, allowing you to realize the full potential of each of the PSE ports in your data center.

Eliminate Bottlenecks with Gigabit Speeds

Equipped with six auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the switch's 12 Gbps switch fabric provides plenty of performance for your computers and other networking devices.

Wall-mount option

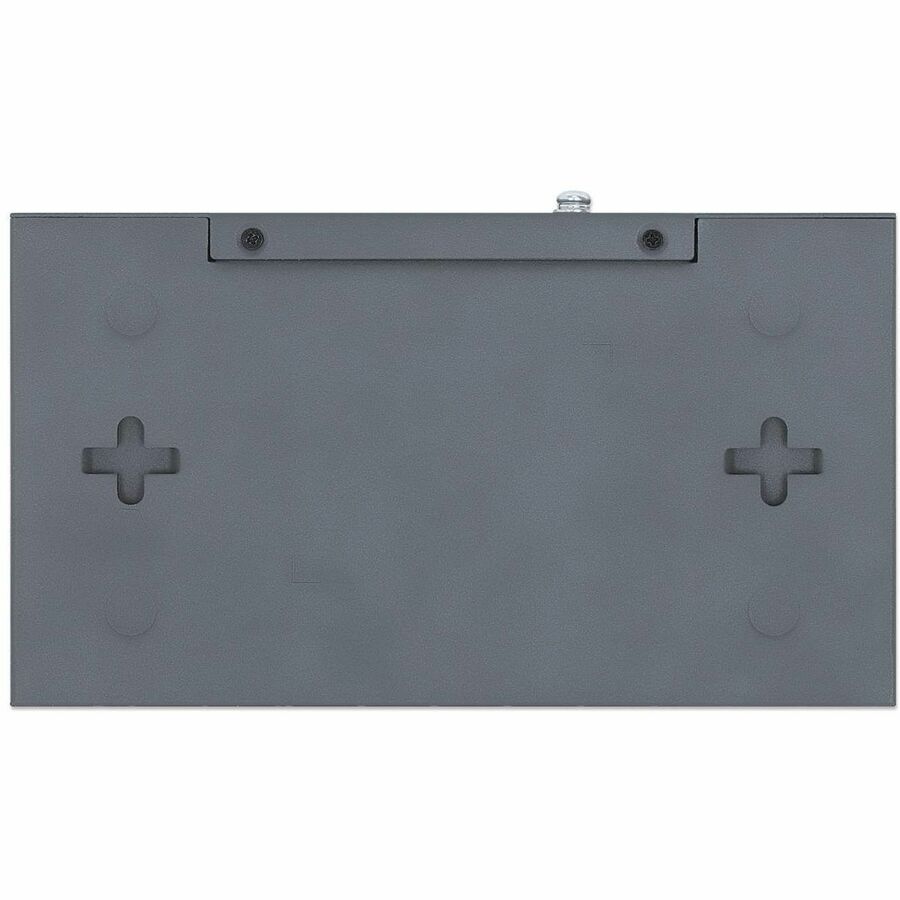

For full installation flexibility, you can mount the switch on the wall through its four built-in holes or use the included non-slip rubber feet to place it on a desktop.

• Provides up to four PoE network devices with power and data
• Two RJ45 Gigabit uplink ports
• Self-Healing Network - the Powered Device Monitor feature (PDM), also known as PD Alive Check, restarts any connected PoE device that fails to respond or send out network traffic
• Lite Smart Management, with a simplified web interface and the most common configuration options for a user-friendly installation
• Domotz compatible for cloud management

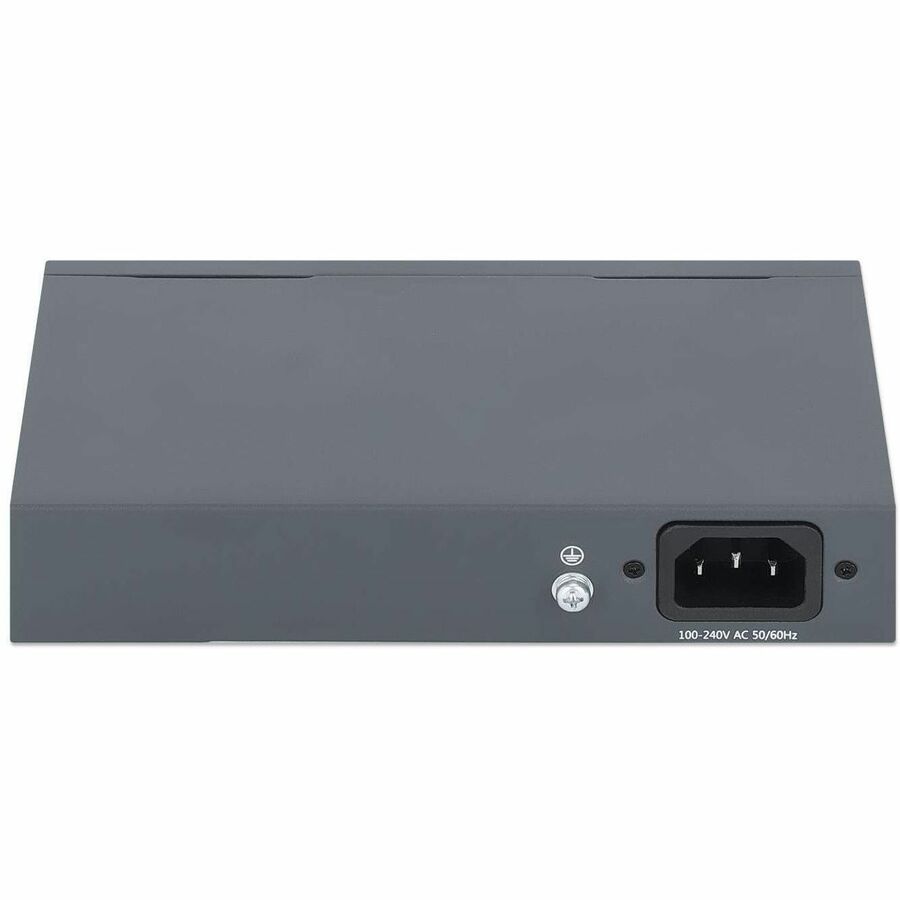

• Can be powered via PoE or the included power cable; 60 W PoE power budget through 95 W PD input or AC power
• Power output up to 30 watts per port
• Supports 802.1Q VLAN (tag-based and port-based)
• 10/100/1000 auto-sensing ports that automatically detect optimal network speeds

• Port Mirroring
• PoE Watchdog
• Virtual LAN (VLAN)
• Auto Sensing
• Auto-negotiation
• Broadcast Storm Control
• Flow Control
• Reset Button
• Fanless
• Quality of Service (QoS)

• IEEE 802.3at
• IEEE 802.3af
• IEEE 802.3ae
• IEEE 802.3az
• IEEE 802.3x
• IEEE 802.1p
• IEEE 802.1Q
• IEEE 802.3ad
• IEEE 802.3
• IEEE 802.3ab
• IEEE 802.3u
• IEEE 802.3bt

• 120 V AC
• 230 V AC

• 50 Hz
• 60 Hz

• Power Supply
• AC

• Desktop
• Wall Mountable

• Network
• Traffic
• IP Phone
• Wireless Access Point
• Office
• VoIP Phone
• IP Camera
• Data Center
