Atlona Three-Input HDBaseT and HDMI Switcher, Mixer Amplifier, and USB Hub

Part No. AT-OME-CS31-SA-HDBT

by Atlona Technologies

Atlona Three-Input HDBaseT and HDMI Switcher, Mixer Amplifier, and USB Hub

4096 x 2160 - 4K - Camera, Display - 1 x HDMI Out

Part No. AT-OME-CS31-SA-HDBT

by Atlona Technologies

$2560.99
General Information
ManufacturerAtlona Technologies
Manufacturer Part NumberAT-OME-CS31-SA-HDBT
Brand NameAtlona
Product LineOmega
Product NameThree-Input HDBaseT and HDMI Switcher, Mixer Amplifier, and USB Hub
Marketing Information

Full-featured AV solution for classrooms and meeting rooms

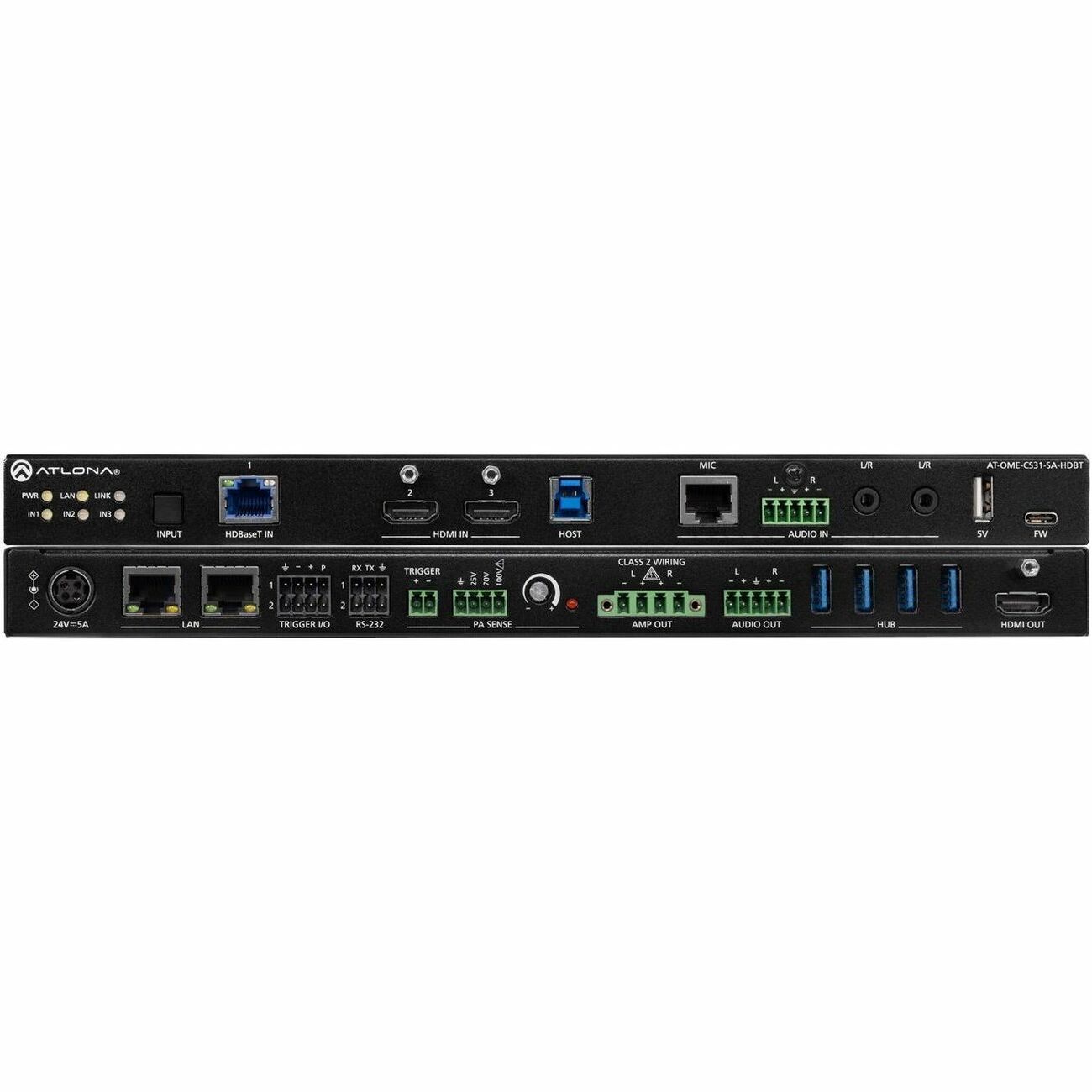

The AT-OME-CS31-SA-HDBT is an AV presentation and collaboration system featuring a 3×1 switcher with HDMI and HDBaseT inputs, 50 watt mixer amplifier, and USB routing.

Specialized Classroom Capabilities

Ducking lowers program audio levels when the teacher speaks into their microphone connected to the balanced line input. Mute audio when a PA message is detected or with a contact closure. Both features ensure important lesson material and announcements are heard clearly.

Flexible Contro

lAutomate system operation based on switcher activity, integration with occupancy sensors, or use with a Velocity control system.

Additional Features

The AT-OME-CS31-SA-HDBT is an AV presentation and collaboration system featuring a 3×1 switcher with HDMI and HDBaseT inputs, 50 watt mixer amplifier, and USB 3.0 hub. These combined with extensive audio and flexible automation capabilities make it ideal for modern classroom and meeting environments.

AV Switching

Three inputs are available for connecting common source devices such laptops, computers, and document cameras

HDBaseT Input

Extend video, embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters)

Mixer Amplifier

Mix 3 line inputs, de-embedded HDMI audio, and USB audio to the 50 watt amplifier and line outputs

USB Hub

Interface up to four peripherals such as cameras, speakerphones, or interactive displays with two hosts.

Packaged Quantity1
Product TypeAudio/Video Switchbox
Technical Information
Connectivity TechnologyCable
Device Supported
  • Camera
  • Display
Box TypeSwitch Box
Data Link ProtocolsTCP/IP
Video
Graphics Modes4K
Maximum Video Resolution4096 x 2160
Interfaces/Ports
HDMI InYes
HDMI OutYes
USBYes
Connectivity (RJ-45)Yes
Number of Connectivity (RJ-45) Ports4
Number of USB Ports7
Number of HDMI Inputs2
Number of HDMI Outputs1
Media & Performance
Maximum Operating Distance328.08 ft (100000 mm)
Miscellaneous
Application/UsageMeeting Room
ConditionNo
UPC846352007577
