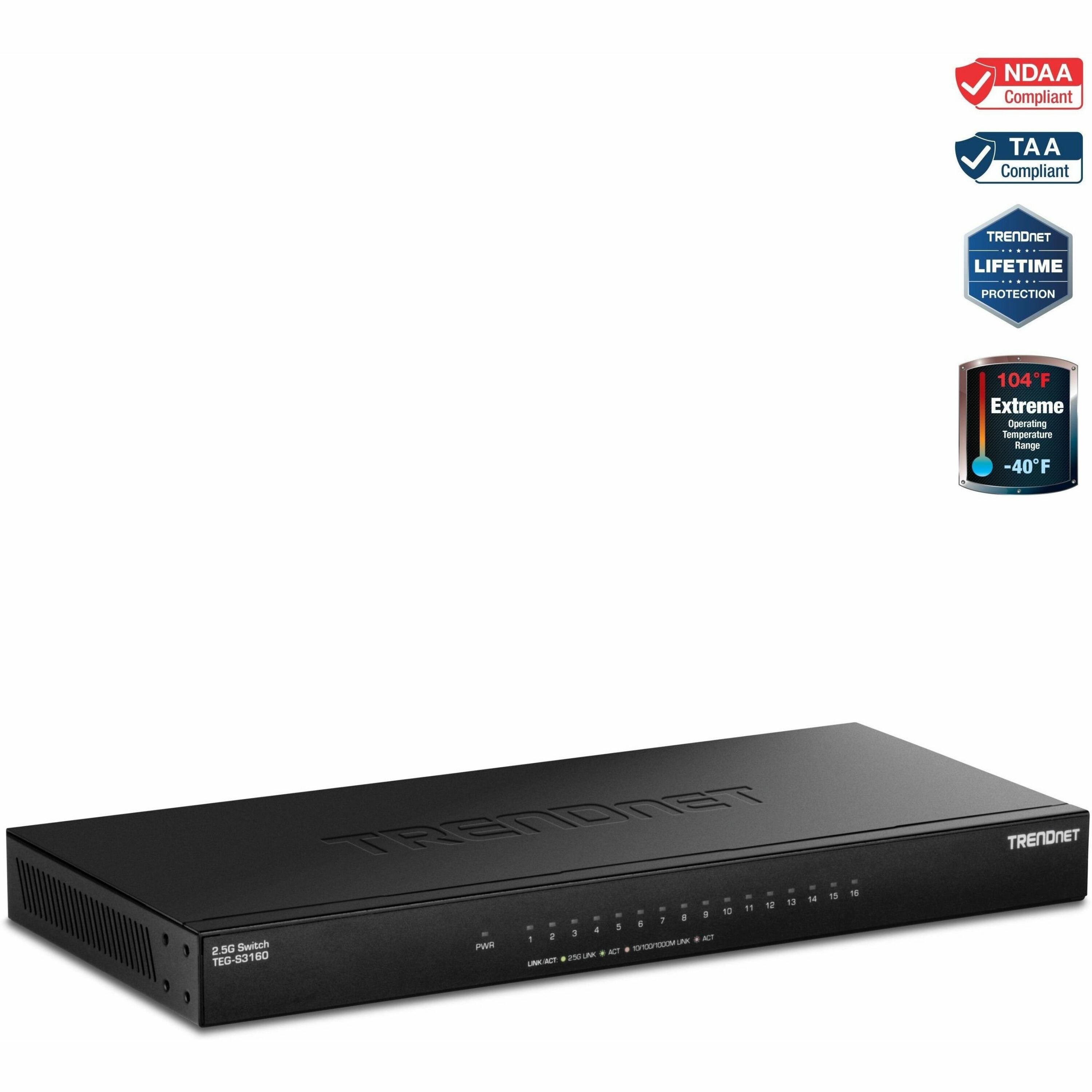

TRENDnet 16-Port Unmanaged 2.5G Desktop Switch

16 Ports - 2.5 Gigabit Ethernet - 2.5GBase-T - 2 Layer Supported - 7.26 W Power Consumption - Twisted Pair - Rack-mountable, Wall Mountable, Desktop - Lifetime Limited Warranty

Part No. TEG-S3160

by TRENDnet

$438.99

Manufacturer Brochure

Specifications

General Information

Manufacturer	TRENDnet
Manufacturer Part Number	TEG-S3160
Brand Name	TRENDnet
Product Model	TEG-S3160
Product Name	16-Port Unmanaged 2.5G Desktop Switch
Marketing Information	Expand your network's bandwidth and reduce digital bottlenecks with TRENDnet's Unmanaged 2.5G Switches. These 2.5G network switches come equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. The sturdy metal housing and included rackmount brackets are well-suited for wall mount or 19? 1U rack installations. TRENDnet's reliable 2.5G switches are cost-effective solutions to increase your network's throughput. DEVICE INTERFACE: 16 x 2.5G RJ-45 (10Mbps/100Mbps/1Gbps/ 2.5Gbps); LED indicators LIFETIME PROTECTION -We stand by the quality of our products. The TEG-S3160 16-Port Unmanaged 2.5G Desktop Network Ethernet Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only) NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only) 2.5G PORTS: The 16 Port network switch is equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling. SWITCHING CAPACITY: The unmanaged switch is equipped with a 80Gbps Switching Capacity WALL MOUNTABLE: The 2.5G unmanaged switch features a durable metal housing with a convenient wall mountable design for greater installation flexibility. FANLESS DESIGN: The fanless design lowers energy consumption and eliminates distracting operating noise.
Product Type	Ethernet Switch

Technical Information

Features	Fanless

Interfaces/Ports

Total Number of Network Ports	16
Network (RJ-45)	Yes

Media & Performance

Media Type Supported	Twisted Pair
Ethernet Technology	2.5 Gigabit Ethernet
Network Technology	2.5GBase-T

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3az IEEE 802.3bz

Management & Protocols

Manageable	No

Reliability

MTBF	223000 Hour

Power Description

Input Voltage	120 V AC 230 V AC
Frequency	47 Hz 63 Hz
Power Source	AC
Power Consumption	7.26 W

Physical Characteristics

Form Factor	Rack-mountable Wall Mountable Desktop
Height	1.06" (27 mm)
Width	5.04" (128 mm)
Length	11.26" (286 mm)
Weight (Approximate)	2.16 lb (982 g)

Miscellaneous

Package Contents	16-Port Unmanaged 2.5G Desktop Switch Quick Installation Guide Rackmount Kit Power Adapter (12V DC, 3A)
Application/Usage	Network
Condition	No
UPC	0710931141160

Warranty

Limited Warranty	Lifetime
