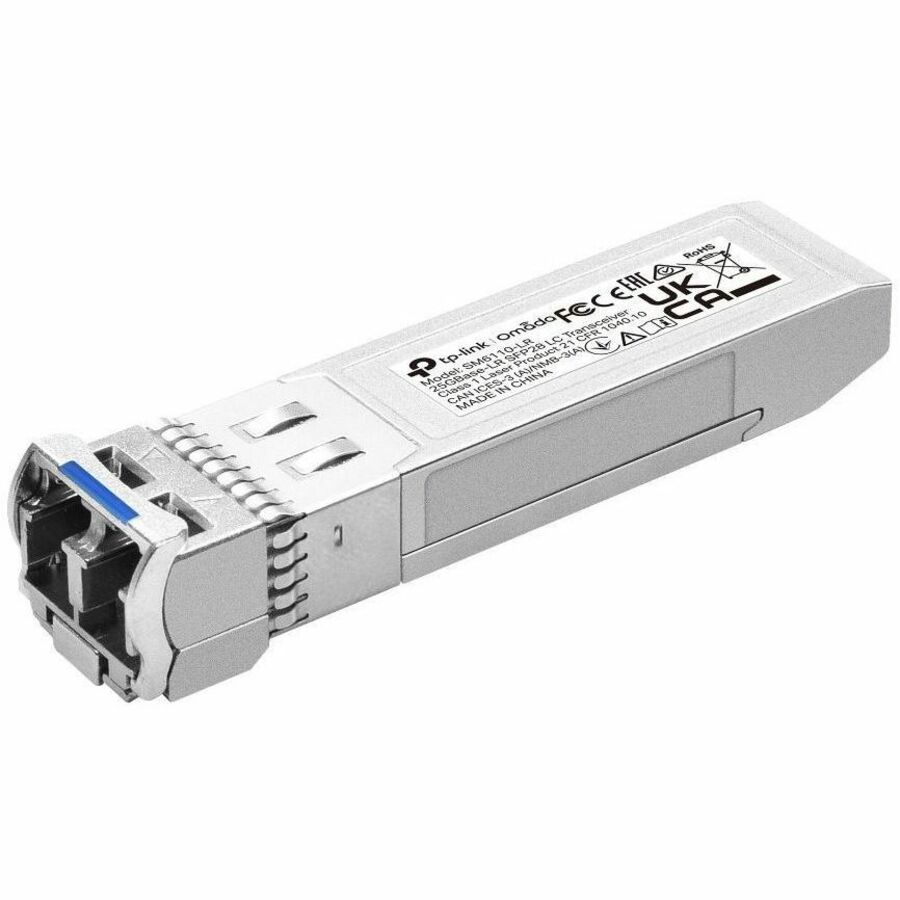

TP-Link Omada 25GBase-LR SFP28 LC Transceiver
For Data Networking, Optical Network - 1 x LC 25GBase-LR Duplex Network - Optical Fiber - Single-mode - 25 Gigabit Ethernet - 25GBase-LR10 km (6.21 Mile) Maximum Distance - Hot-swappable, Hot-pluggable
$90.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | SM6110LR |
| Brand Name | TP-Link |
| Product Line | Omada |
| Product Model | SM6110-LR |
| Product Name | Omada 25GBase-LR SFP28 LC Transceiver |
| Marketing Information | What This Product Does The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively. |
| Product Type | SFP28 |
Technical Information
| Application/Usage |
|
Interfaces/Ports
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 25GBase-LR Duplex Network |
Media & Performance
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 25 Gigabit Ethernet |
| Network Technology | 25GBase-LR |
| Maximum Distance Supported | 10 km (6.21 Mile) |
Environmental Conditions
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 158°F (70°C) |
Power Description
| Input Voltage | 3.3 V |
Physical Characteristics
| Form Factor |
|
| Height | 0.47" (12 mm) |
| Width | 2.24" (57 mm) |
| Depth | 0.55" (14 mm) |
Miscellaneous
| Compatibility | MSA Compliant TP-LINK Switches:
|
| Condition | No |
| UPC | 0810142821360 |
