SEH INU-50 Device Server

Part No. M07220

by SEH Technology, Inc

SEH INU-50 Device Server

Twisted Pair - 1 x Network (RJ-45) - 2 x USB x Serial Port - 10/100/1000Base-T - Gigabit Ethernet - DIN Rail Mountable

Part No. M07220

by SEH Technology, Inc

$829.99
General Information
ManufacturerSEH Technology, Inc
Manufacturer Part NumberM07220
Brand NameSEH
Product ModelINU-50
Product NameINU-50 Device Server
Marketing Information

At a glance

The INU-50 is a state-of-the-art serial and USB device server specifically designed for demanding industrial environments. It provides reliable network connections for USB and serial devices such as RS-422 and RS-485, even under extreme conditions. With an extended temperature range of -20°C to 70°C, redundant power supplies and comprehensive security features, the INU-50 is the perfect choice for companies working in Industry 4.0 and IIoT environments.

  • Support for USB and serial RS-422/RS-485 devices
  • Temperature range: -20°C to 70°C

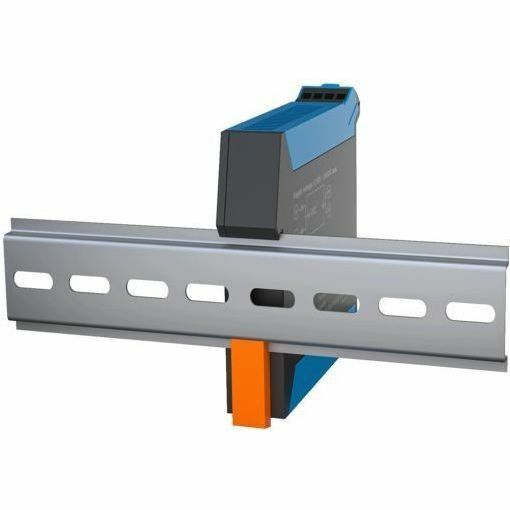

  • Easy installation on DIN rail
  • Encrypted point-to-point connections
  • Compatible with server-based and virtualized environments
  • Fit for IIoT and Industry 4.0

Description

  • Robust and reliable: The INU-50 was specially developed for harsh environments and performs trouble-free even under extreme conditions. We give up to 5-year guarantee on this!
  • Flexible integration: Thanks to support of IPv4, IPv6, VLAN and WebDAV, the INU-50 can be seamlessly integrated into existing networks.
  • Security at the highest level: The encrypted point-to-point connection protects against unauthorized access and ensures that your data remains safe.
  • Maximum flexibility: The INU-50 supports a variety of operating systems and is suitable for a wide range of applications in industry, production and logistics.
  • High-end support & updates: Technical support is free worldwide and works via WebDAV. We also guarantee you regular updates.
  • Future-proof: Thanks to regular software updates and comprehensive compatibility with modern IIoT standards, the INU-50 remains ready for use in the long term.

The INU-50 is a powerful device server for industrial application scenarios. With its ability to integrate serial and USB devices safely and reliably into networks, it offers maximum flexibility for a wide range of applications. Thanks to its robust design, it is ideal for environments with extreme temperatures and can be easily installed on the DIN rail. With support for redundant power supplies and comprehensive monitoring and notification functions, the INU-50 ensures smooth operation even in critical environments.

In addition, the INU-50 offers modern security functions such as encrypted point-to-point connections, certificate management and authentication according to the 802.1X standard, making it the ideal choice for companies that have the highest data protection and security requirements. Seamless integration into server-based and virtualized environments as well as support for all common operating systems make the INU-50 the optimal solution for Industry 4.0.

Product TypeDevice Server
Technical Information
Connectivity TechnologyWired
Media & Performance
Media Type SupportedTwisted Pair
Wireless Specifications
Wireless LANNo
Network & Communication
Ethernet TechnologyGigabit Ethernet
Network Standard10/100/1000Base-T
Interfaces/Ports
Network (RJ-45)Yes
USBYes
Serial PortYes
Total Number of Network Ports1
Number of Network (RJ-45) Ports1
Number of USB Ports2
Environmental Conditions
Minimum Operating Temperature-4°F (-20°C)
Maximum Operating Temperature140°F (60°C)
Power Description
Input Voltage
  • 10 V DC
  • 28 V DC
Input Voltage Range10 V DC to 28 V DC
Power Consumption90000 W
Physical Characteristics
Form FactorDIN Rail Mountable
Height4.65" (118 mm)
Width0.89" (22.50 mm)
Depth4.49" (114 mm)
Weight (Approximate)5.29 oz (150 g)
Miscellaneous
Certifications & Standards
  • CE
  • EN 61000-6-2:2005
  • EN 61000-6-3:2007 + A1:2011 + AC:2012
  • EN 61000-3-2:2006 + A1:2009 + A2:2009
  • EN 61000-3-3:2008, EN IEC 63000:2018
  • FCC
  • Title 47 part 15
  • Subpart B, Class B
  • UKCA
  • EN 61000-6-2:2005
  • EN 61000-6-3:2007 + A1:2011 + AC:2012
  • EN 61000-3-2:2046 + A1:2009 + A2:2CI49
  • EN 61000-3-3:2008
  • EN IEC 63000:2018
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Country of OriginGermany
ConditionNo
