Tripp Lite series Gigabit Ethernet Card
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PCE-1G-02-NIC |
| Brand Name | Tripp Lite series |
| Product Name | Gigabit Ethernet Card |

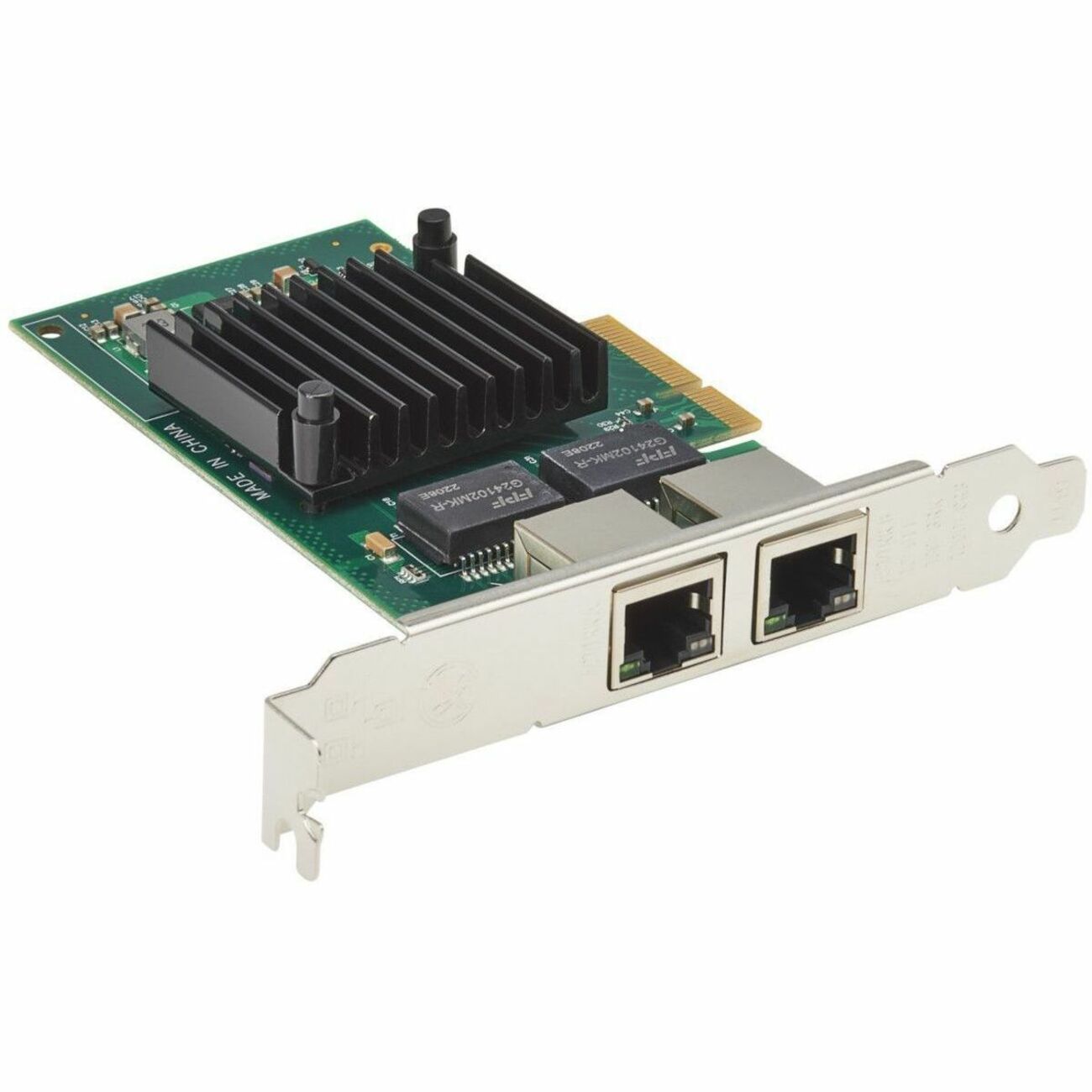

| Marketing Information | Adds Dual Gigabit Ethernet Ports to Your Desktop Computer The high-performance PCE-1G-02-NIC connects to your desktop computer's motherboard and adds two 10/100/1000 Mbps RJ45 ports via an available four-lane PCI Express (PCIe) slot. Based on the bridgeless Intel I350 controller, this adapter is a 1 Gbps networking innovation for enterprise and data center applications. Add multiple Ethernet ports to dual-homed proxy or gateway systems for added security and redundant connectivity for uninterrupted network connections. Recommended for VM Environments This PCIe network interface card (NIC) is ideal for Virtual Machine (VM) environments with multiple operating systems that require shared or dedicated NICs. It also is a valuable addition to desktop PC servers and workstations with few PCIe slots available in which turning one RJ45 port into two is beneficial. Loaded with the Latest Features The PCE-1G-02-NIC supports common IEEE standards, including 802.3ab (1000Base-T Gigabit Ethernet), 802.3u (100base-TX), 802.3az, 802.1Q (VLAN) and 802.1ad. The high-performing bridgeless design supports PCI Express Gen 2.1 5GT/s x4, compatible with PCIe x8 or x16. Innovative Power Management Features for Enterprise and Data Centers Energy Efficient Ethernet (EEE) and DMA coalescing increase efficiency and reduce power consumption for enterprise and data center applications. Scalable iSCSI performance delivers cost-effective SAN connectivity. The PCE-1G-02-NIC also supports jumbo frames, VMDq, DPDK, PXE, WOL and FCoE. Flexible I/O virtualization is ideal for port partitioning and quality of service (QoS) of up to 32 virtual ports. Installs in Minutes The halogen-free adapter is compatible with copper UTP cabling, including 1000Base-T Cat5e/Cat6 or higher up to 100 meters, 100Base-Tx Cat5/Cat5e/Cat6 or higher up to 100 meters, and 10Base-T Cat3/4/5/5e/6 or higher up to 100 meters. The PCE-1G-02-NIC can be installed with either a standard or low-profile bracket (both are included). |
| Product Type | Gigabit Ethernet Card |
| Chipset Manufacturer | Intel |
| Chipset Model | I350-T2 |
| Host Interface | PCI Express x16 |
| Total Number of Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Media Type Supported | Twisted Pair |
| Network Technology | 1000Base-T |
| Minimum Operating Humidity (Non-condensing) | 35% |
| Maximum Operating Humidity (Non-condensing) | 90% |
| Color Family | Green |
| Product Color | Green |
| Form Factor | Plug-in Card |
| Bracket Height | Low-profile |
| Height | 4.72" (119.89 mm) |
| Width | 2.72" (69.09 mm) |
| Depth | 4.65" (118.11 mm) |
| Package Contents |
|
| Application/Usage |
|
| Device Supported |
|
| Operating System Compatibility |
|
| Environmental Compliance |
|
| Country of Origin | Taiwan |
| Condition | No |
| UPC | 0037332286390 |
| Limited Warranty | 2 Year |
